IL-S-2S-S2C2 Equivalent & Substitute Parts

Part Overview

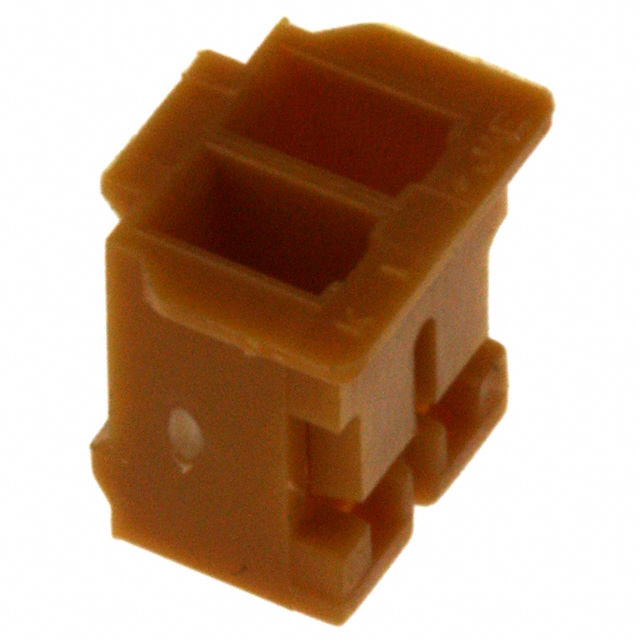

The IL-S-2S-S2C2 is a 2-position rectangular connector receptacle housing manufactured by JAE Electronics with a 2.00mm pitch. This component is classified as obsolete, making identification of functionally equivalent alternatives essential for ongoing production support and design continuity. The connector accommodates crimp-terminated female socket contacts and operates across the -40°C to 85°C temperature range with unlimited moisture sensitivity rating.

Substiute Parts

IL-S-2S-S2C2

JAE ElectronicsIn Stock: 763IL-S-2S-S2C2 Datasheet

Current PartRFQ

0510050200

MolexIn Stock: 2158860510050200 Datasheet

Parametric EquivalentRFQ

DF3-2S-2C(18)

Hirose Electric Co LtdIn Stock: 10890DF3-2S-2C(18) Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the IL-S-2S-S2C2 is determined by strict alignment across the following critical parameters:

• Connector Type & Contact Configuration: Receptacle housing with female socket contacts
• Position Count & Pitch: Exactly 2 positions at 2.00mm pitch spacing
• Mounting & Termination: Free hanging in-line mounting with crimp termination
• Environmental Rating: Operating temperature range and moisture sensitivity classification

The substitute parts listed below satisfy all mandatory electrical and mechanical parameters required for direct functional replacement in applications designed for the IL-S-2S-S2C2.

Parameter Comparison

Engineering Selection Recommendations

0510050200 (Molex 51005 Series): This part maintains full parametric equivalence with the IL-S-2S-S2C2 across all critical dimensions and electrical specifications. The Molex alternative carries Last Time Buy status with significantly higher inventory availability (215,801 units). The operating temperature range extends to 105°C, providing additional thermal margin. RoHS3 compliance is confirmed. This part is the preferred substitute for new designs and ongoing production requirements.

DF3-2S-2C(18) (Hirose DF3 Series): This alternative meets all mandatory electrical and mechanical parameters. The part carries Obsolete status matching the original component. RoHS compliance is confirmed. Inventory availability is moderate (10,818 units). This option is suitable for direct replacement in existing applications where mechanical and electrical compatibility is the primary requirement.

Frequently Asked Questions (FAQ)

Q: Can the 0510050200 be used as a direct replacement for IL-S-2S-S2C2?

A: Yes. Both parts are 2-position receptacle housings with 2.00mm pitch, crimp termination, and identical mounting configuration. All critical electrical and mechanical parameters align for direct substitution.

Q: What is the difference in operating temperature between the main part and substitutes?

A: The IL-S-2S-S2C2 operates from -40°C to 85°C. The Molex 0510050200 extends the upper limit to 105°C. The Hirose DF3-2S-2C(18) does not specify an operating temperature range in the provided data.

Q: Are there packaging differences between these parts?

A: The IL-S-2S-S2C2 packaging is not specified. The Molex 0510050200 is supplied in Bulk packaging. The Hirose DF3-2S-2C(18) is also supplied in Bulk packaging.

Q: What is the significance of the product status differences?

A: The IL-S-2S-S2C2 and DF3-2S-2C(18) are both Obsolete. The Molex 0510050200 carries Last Time Buy status, indicating limited future availability but current production support. For long-term supply assurance, the Molex part is the recommended choice.

Q: Do these parts require specific contact types?

A: All three housings are designed for crimp-terminated female socket contacts. Contacts are not included with any of these housing components and must be sourced separately according to application requirements.
