IL-S-15S-S2C2-S Equivalent & Substitute Parts

Part Overview

The IL-S-15S-S2C2-S is a 15-position rectangular connector housing manufactured by JAE Electronics. This receptacle housing accepts female socket contacts with a 2.00mm pitch and is designed for free-hanging in-line mounting applications using crimp termination. The part is classified as obsolete, making identification of active equivalent components essential for ongoing production and maintenance applications.

Substiute Parts

IL-S-15S-S2C2-S

JAE ElectronicsIn Stock: 800IL-S-15S-S2C2-S Datasheet

Current PartRFQ

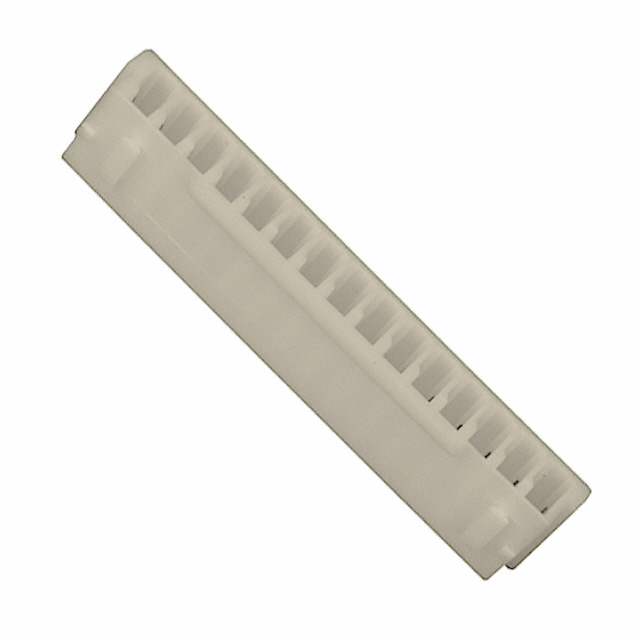

1-179228-5

TE Connectivity AMP ConnectorsIn Stock: 121661-179228-5 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the IL-S-15S-S2C2-S is determined by strict equivalence across the following critical parameters:

• Connector Type & Contact Configuration: Both main and substitute parts must be receptacle housings with female socket contacts
• Position Count & Pitch: 15 positions at 0.079" (2.00mm) pitch is the defining mechanical interface
• Row Configuration: Single-row layout ensures physical compatibility
• Mounting & Termination: Free-hanging in-line mounting with crimp termination must be maintained
• Material Specification: Polyamide (PA66) insulation material ensures thermal and chemical compatibility
• Environmental Rating: Operating temperature and moisture sensitivity must meet or exceed the original specification

The TE Connectivity AMP Connectors part 1-179228-5 satisfies all substitution criteria within these parameters.

Parameter Comparison

Engineering Selection Recommendations

The IL-S-15S-S2C2-S is classified as obsolete. The TE Connectivity AMP Connectors part 1-179228-5 is an active product with full RoHS3 compliance and superior availability (12,120 units in stock versus 691 units for the obsolete JAE part).

From a compliance perspective, the substitute part meets all electrical and mechanical requirements specified for the original component. The extended operating temperature range (-30°C ~ 105°C versus -40°C ~ 85°C) provides additional thermal margin for demanding applications. Both parts carry identical moisture sensitivity ratings and share equivalent insulation material specifications.

Selection of the TE Connectivity substitute is appropriate for new designs and production transitions where component obsolescence presents supply chain risk.

Frequently Asked Questions (FAQ)

Q: Can the 1-179228-5 be used as a direct replacement for the IL-S-15S-S2C2-S?

A: Yes. Both parts are 15-position receptacle housings with 2.00mm pitch, single-row configuration, and crimp termination. All critical mechanical and electrical parameters are equivalent.

Q: What is the difference in operating temperature range?

A: The IL-S-15S-S2C2-S operates from -40°C to 85°C. The 1-179228-5 operates from -30°C to 105°C. The substitute part has a wider upper temperature limit, which is advantageous for thermal margin but does not affect compatibility in applications within the original specification range.

Q: Are the insulation materials compatible?

A: Both parts use Polyamide (PA66), Nylon 6/6 insulation material. Material compatibility is confirmed.

Q: What packaging is available for the substitute part?

A: The 1-179228-5 is supplied in bulk packaging, compared to the original part which has unspecified packaging. Confirm packaging requirements with your procurement process.

Q: Do these housings include contacts?

A: No. Both the IL-S-15S-S2C2-S and 1-179228-5 are housings only. Contacts must be sourced separately and crimped into the housing.

Q: Is the substitute part RoHS compliant?

A: Yes. The 1-179228-5 is RoHS3 compliant. RoHS status for the original JAE part is not specified in available documentation.
