IL-S-11S-S2C2 Equivalent & Substitute Parts

Part Overview

The IL-S-11S-S2C2 is an 11-position rectangular connector receptacle housing manufactured by JAE Electronics. This component features a 2.00mm pitch, single-row configuration, and crimp-type female socket contacts. The part is classified as obsolete, making identification of functionally equivalent alternatives essential for ongoing system maintenance and component procurement.

Substiute Parts

IL-S-11S-S2C2

JAE ElectronicsIn Stock: 980IL-S-11S-S2C2 Datasheet

Current PartRFQ

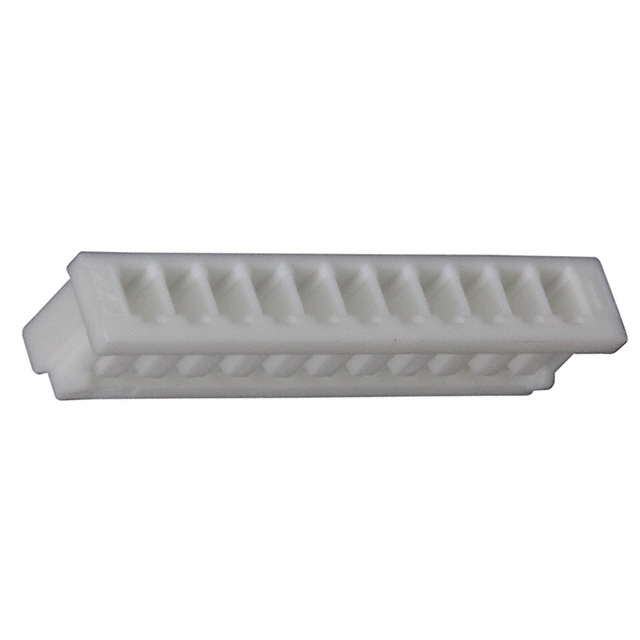

0510901100

MolexIn Stock: 10060510901100 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the IL-S-11S-S2C2 is determined by strict alignment of the following critical parameters:

• Connector Type: Receptacle housing only
• Contact Type: Female socket configuration
• Number of Positions: Exactly 11 positions
• Pitch: 0.079" (2.00mm) contact spacing
• Number of Rows: Single row only
• Mounting Type: Free hanging (in-line) configuration
• Contact Termination: Crimp-type termination
• Operating Temperature Range: -40°C to 85°C minimum
• Insulation Material: Polyamide (PA66) or equivalent nylon-based material

The substitute part 0510901100 (Molex Mi II 51090 series) meets all critical parameters and is classified as a parametric equivalent.

Parameter Comparison

Engineering Selection Recommendations

The Molex 0510901100 connector housing is a direct parametric equivalent to the IL-S-11S-S2C2. Both components share identical electrical and mechanical specifications across all critical parameters. Both parts carry obsolete product status, indicating limited availability through standard distribution channels.

Selection between these components should be based on:

• Inventory availability: Current stock levels and procurement lead times
• Compliance requirements: Both parts maintain REACH Unaffected status and EAR99 export classification
• System integration: Mechanical fit and contact compatibility with existing mating connectors and harness assemblies
• Cost considerations: Pricing and total cost of ownership for replacement inventory

Frequently Asked Questions (FAQ)

Q: Can the Molex 0510901100 directly replace the JAE IL-S-11S-S2C2 in existing assemblies?

A: Yes, provided that the mating connector and contact specifications remain compatible. Both housings feature identical pitch (2.00mm), position count (11), row configuration (1), and termination method (crimp). Physical dimensions and mounting characteristics are equivalent.

Q: Are there any compliance or certification differences between these parts?

A: No. Both components maintain identical REACH status (REACH Unaffected), identical MSL rating (1 - Unlimited), and identical ECCN classification (EAR99). Both are suitable for applications with identical regulatory requirements.

Q: What is the significance of the obsolete product status?

A: Obsolete status indicates that both the original JAE part and the Molex substitute are no longer in active production. Component availability is limited to existing inventory. Long-term procurement strategies should account for potential future unavailability.

Q: Do these housings include contacts?

A: No. Both the IL-S-11S-S2C2 and 0510901100 are housing-only components. Contacts must be sourced separately and must be compatible with the 2.00mm pitch crimp termination specification.

Q: What operating conditions are these connectors rated for?

A: Both components are rated for continuous operation across the temperature range of -40°C to 85°C. MSL rating of 1 indicates unlimited moisture sensitivity tolerance, suitable for standard industrial and commercial environments.
