HTSW-114-06-L-S Equivalent & Substitute Parts

Part Overview

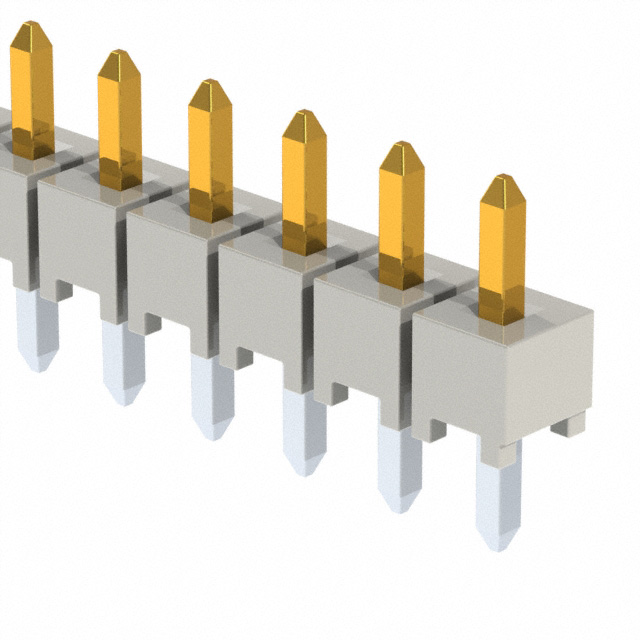

The HTSW-114-06-L-S is a rectangular connector header manufactured by Samtec Inc., designed for through-hole mounting applications. This 14-position, single-row connector operates at 0.100" (2.54mm) pitch and is rated for -55°C to 125°C operating temperature. The part is currently active in production with 874 units in stock. Substitute parts are identified to provide alternative sourcing options when the primary part is unavailable or when design flexibility permits component interchange based on equivalent electrical and mechanical specifications.

Key Parameters

Parameter	Value
Manufacturer	Samtec Inc.
Connector Type	Header
Contact Type	Male Pin
Number of Positions	14
Number of Rows	1
Pitch - Mating	0.100" (2.54mm)
Mounting Type	Through Hole
Termination	Solder
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Operating Temperature	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

Substitute Part Grouping Explanation

Substitution eligibility for the HTSW-114-06-L-S is determined by the following critical parameters:

Connector Type: Header (male pin contact type)
Position Count: 14 positions
Row Configuration: Single row
Pitch Specification: 0.100" (2.54mm) mating pitch
Mounting Method: Through hole solder termination
Contact Geometry: Square contact shape with phosphor bronze material
Contact Finish: Gold-plated mating surface with tin-plated post
Operating Range: -55°C to 125°C
Regulatory Compliance: UL94 V-0 flammability rating and ROHS3 compliance

The TSW-114-06-L-S meets all critical substitution criteria. Both parts share identical connector topology, position count, pitch, mounting method, contact material, contact finish specifications, operating temperature range, and regulatory compliance status. The primary difference is the insulation material composition (LCP versus PBT) and insulation color, which do not affect electrical or mechanical interchangeability in standard board-to-board or cable connection applications.

Parameter Comparison

Parameter	HTSW-114-06-L-S	TSW-114-06-L-S
Manufacturer	Samtec Inc.	Samtec Inc.
Connector Type	Header	Header
Contact Type	Male Pin	Male Pin
Number of Positions	14	14
Number of Rows	1	1
Pitch - Mating	0.100" (2.54mm)	0.100" (2.54mm)
Mounting Type	Through Hole	Through Hole
Termination	Solder	Solder
Contact Length - Mating	0.105" (2.67mm)	0.105" (2.67mm)
Contact Length - Post	0.095" (2.41mm)	0.095" (2.41mm)
Overall Contact Length	0.300" (7.62mm)	0.300" (7.62mm)
Insulation Height	0.100" (2.54mm)	0.100" (2.54mm)
Contact Shape	Square	Square
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)	10.0µin (0.25µm)
Contact Finish - Post	Tin	Tin
Contact Material	Phosphor Bronze	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)	Polybutylene Terephthalate (PBT)
Operating Temperature	-55°C ~ 125°C	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0	UL94 V-0
RoHS Status	ROHS3 Compliant	ROHS3 Compliant
ECCN	EAR99	EAR99
HTSUS Code	8536.69.4040	8536.69.4040

Engineering Selection Recommendations

Both the HTSW-114-06-L-S and TSW-114-06-L-S are active production parts from Samtec Inc. with full ROHS3 compliance and UL94 V-0 flammability certification. Selection between these parts is based on availability and insulation material preference. The HTSW series uses Liquid Crystal Polymer (LCP) insulation, while the TSW series uses Polybutylene Terephthalate (PBT) insulation. Both materials meet the specified operating temperature range and regulatory requirements. Component selection should prioritize inventory availability and lead time considerations, as both parts are electrically and mechanically equivalent for standard through-hole solder applications.

Frequently Asked Questions (FAQ)

Q: Are HTSW-114-06-L-S and TSW-114-06-L-S directly interchangeable?

A: Yes. Both connectors share identical electrical and mechanical specifications including 14-position single-row configuration, 0.100" (2.54mm) pitch, through-hole solder termination, square phosphor bronze contacts with gold mating finish, and -55°C to 125°C operating temperature range. The insulation material difference (LCP versus PBT) does not affect interchangeability in standard board-to-board or cable connection applications.

Q: What is the primary difference between these two parts?

A: The HTSW-114-06-L-S features Liquid Crystal Polymer (LCP) insulation with natural color, while the TSW-114-06-L-S features Polybutylene Terephthalate (PBT) insulation with black color. Both materials meet UL94 V-0 flammability requirements and ROHS3 compliance.

Q: Can I substitute TSW-114-06-L-S for HTSW-114-06-L-S in existing designs?

A: Yes. The TSW-114-06-L-S meets all critical substitution parameters: identical connector topology, position count, pitch, mounting method, contact material, contact finish, operating temperature range, and regulatory compliance. No design modifications are required.

Q: Are both parts currently in production?

A: Yes. Both the HTSW-114-06-L-S and TSW-114-06-L-S are active production parts with current inventory availability.

Q: Do these connectors meet RoHS requirements?

A: Yes. Both parts are ROHS3 compliant and carry EAR99 export classification.
