HTSW-103-14-L-S Equivalent & Substitute Parts

Part Overview

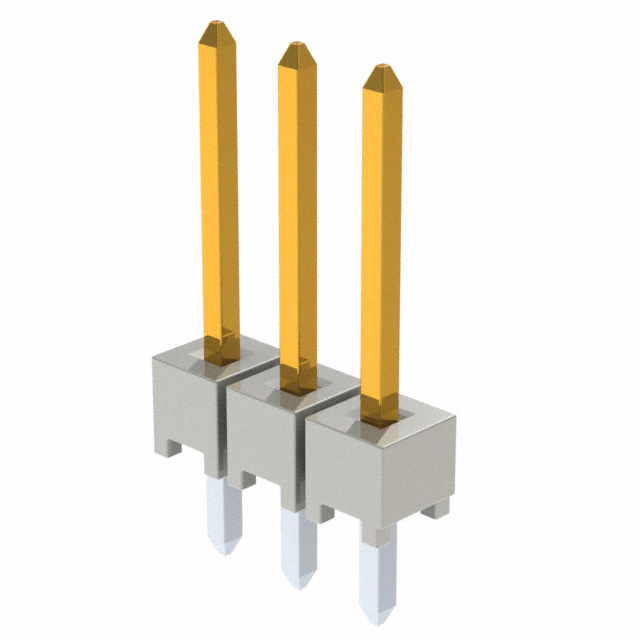

The HTSW-103-14-L-S is a rectangular connector header manufactured by Samtec Inc., designed for through-hole mounting applications. This unshrouded, vertically-oriented header accommodates 3 positions at 0.100" (2.54mm) pitch and features male pins with gold-plated mating contacts and tin-plated posts. The connector is classified as Active product status and is RoHS3 compliant. Substitute parts are identified when equivalent electrical and mechanical parameters align with the original specification, enabling component interchangeability in board-level applications.

Key Parameters

Parameter	Value
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	3
Number of Rows	1
Mounting Type	Through Hole
Termination	Solder
Shrouding	Unshrouded
Contact Finish - Mating	Gold
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature Range	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

Substitute Part Grouping Explanation

Substitution eligibility for the HTSW-103-14-L-S is determined by strict alignment of the following critical parameters:

Connector type (Header with male pin contact)
Pitch specification (0.100" / 2.54mm)
Position count (3 positions, single row)
Mounting method (Through hole, solder termination)
Contact finish on mating surface (Gold plating)
Insulation material compatibility (LCP or equivalent polymeric material)
Flammability rating (UL94 V-0)
RoHS compliance status

The identified substitute parts meet these core electrical and mechanical criteria, enabling direct replacement in applications where the HTSW-103-14-L-S is specified.

Parameter Comparison

Parameter	HTSW-103-14-L-S (Samtec)	5-146276-3 (TE Connectivity)	929705-01-03-EU (3M)
Connector Type	Header	Header, Breakaway	Header, Breakaway
Contact Type	Male Pin	Male Pin	Male Pin
Pitch - Mating	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Positions	3	3	3
Number of Rows	1	1	1
Mounting Type	Through Hole	Through Hole	Through Hole
Termination	Solder	Solder	Solder
Shrouding	Unshrouded	Unshrouded	Unshrouded
Contact Finish - Mating	Gold	Gold	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)	15.0µin (0.38µm)	10.0µin (0.25µm)
Contact Length - Mating	0.320" (8.13mm)	0.318" (8.08mm)	0.318" (8.08mm)
Contact Length - Post	0.110" (2.79mm)	0.125" (3.18mm)	0.110" (2.79mm)
Overall Contact Length	0.530" (13.46mm)	0.533" (14.65mm)	0.528" (13.42mm)
Insulation Height	0.100" (2.54mm)	0.090" (2.29mm)	0.100" (2.54mm)
Contact Material	Phosphor Bronze	Copper Alloy	Copper Alloy
Insulation Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Polycyclohexylenedimethylene Terephthalate (PCT)
Operating Temperature Range	-55°C ~ 125°C	-65°C ~ 105°C	-40°C ~ 105°C
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0
RoHS Status	ROHS3 Compliant	ROHS3 Compliant	RoHS Compliant
Moisture Sensitivity Level (MSL)	Not Applicable	1 (Unlimited)	1 (Unlimited)

Engineering Selection Recommendations

All three connectors maintain Active product status and satisfy UL94 V-0 flammability requirements. The HTSW-103-14-L-S and 929705-01-03-EU share identical insulation height (0.100") and contact post length (0.110"), providing the closest mechanical alignment. The 5-146276-3 exhibits a reduced insulation height (0.090") and extended contact post length (0.125"), which may affect board layout compatibility in space-constrained applications.

Operating temperature ranges differ across the three options. The HTSW-103-14-L-S supports the widest range (-55°C ~ 125°C), while the 5-146276-3 extends the lower temperature limit to -65°C. The 929705-01-03-EU operates within -40°C ~ 105°C. Selection should align with the application's thermal requirements.

All parts are RoHS compliant. The HTSW-103-14-L-S and 5-146276-3 carry ROHS3 designation, while the 929705-01-03-EU is RoHS compliant without specific revision notation.

Frequently Asked Questions (FAQ)

Q: What determines if a connector can substitute for the HTSW-103-14-L-S?

A: Substitution requires matching pitch (0.100" / 2.54mm), position count (3), row configuration (single row), mounting method (through hole), termination type (solder), contact type (male pin), and mating contact finish (gold). All identified substitutes meet these criteria.

Q: Are there mechanical differences I should consider?

A: Yes. The 5-146276-3 has a lower insulation height (0.090" vs. 0.100") and longer contact post (0.125" vs. 0.110"). These differences may impact PCB footprint compatibility and mating depth. The 929705-01-03-EU matches the original dimensions more closely.

Q: What is the temperature operating range difference?

A: The HTSW-103-14-L-S operates from -55°C to 125°C. The 5-146276-3 extends to -65°C at the lower end but limits to 105°C maximum. The 929705-01-03-EU operates within -40°C to 105°C. Select based on your application's thermal environment.

Q: Are all parts RoHS compliant?

A: Yes. The HTSW-103-14-L-S and 5-146276-3 are ROHS3 compliant. The 929705-01-03-EU is RoHS compliant. All meet environmental compliance requirements.

Q: What is the difference between the insulation materials?

A: The HTSW-103-14-L-S and 5-146276-3 use Liquid Crystal Polymer (LCP). The 929705-01-03-EU uses Polycyclohexylenedimethylene Terephthalate (PCT). Both materials provide UL94 V-0 flammability ratings and are suitable for through-hole solder applications.

Q: Can I use these connectors interchangeably on the same PCB?

A: Mechanical compatibility depends on PCB footprint design. The 929705-01-03-EU provides the closest dimensional match to the original. The 5-146276-3 requires layout verification due to its reduced insulation height and extended post length.
