HTSS-105-03-L-D Equivalent & Substitute Parts

Part Overview

The HTSS-105-03-L-D is a rectangular connector header manufactured by Samtec Inc., designed for through-hole board-to-board or cable applications. This shrouded 4-wall header features 10 positions arranged in 2 rows with 0.100" (2.54mm) pitch spacing. The connector is actively produced and maintains full inventory availability. Substitute parts may be required due to supply constraints, lead time considerations, or specific application requirements within the allowed electrical and mechanical parameter ranges.

Substiute Parts

HTSS-105-03-L-D

Samtec Inc.In Stock: 1197HTSS-105-03-L-D Datasheet

Current PartRFQ

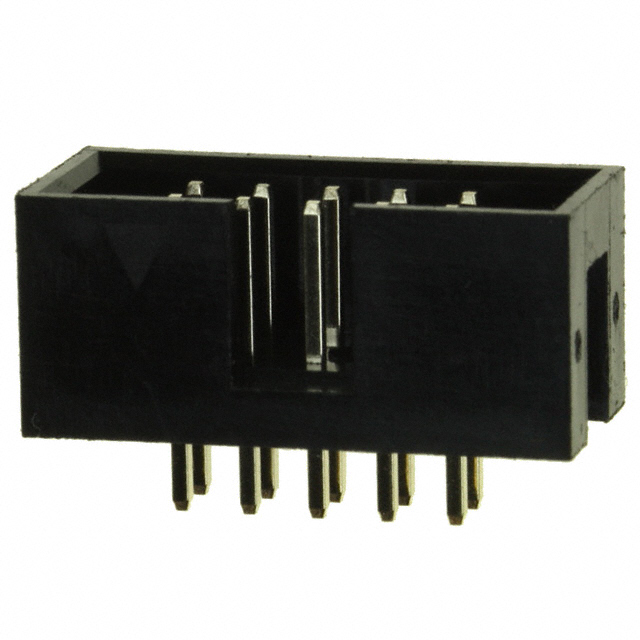

SBH11-PBPC-D05-ST-BK

Sullins Connector SolutionsIn Stock: 2540SBH11-PBPC-D05-ST-BK Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the HTSS-105-03-L-D is permissible with parts that maintain identical or compatible specifications across the following critical parameters:

• Connector type (Header) and contact type (Male Pin)
• Position count (10) and row configuration (2 rows)
• Mating pitch (0.100" / 2.54mm) and row spacing (0.100" / 2.54mm)
• Mounting method (Through Hole) and termination (Solder)
• Shrouding configuration (Shrouded - 4 Wall)
• Fastening mechanism (Push-Pull)
• Contact shape (Square)
• Flammability compliance (UL94 V-0)
• RoHS3 compliance status

The substitute part SBH11-PBPC-D05-ST-BK from Sullins Connector Solutions satisfies all critical substitution criteria within these parameter boundaries.

Parameter Comparison

Engineering Selection Recommendations

Both the HTSS-105-03-L-D and SBH11-PBPC-D05-ST-BK maintain active product status and full RoHS3 compliance. Both connectors satisfy UL94 V-0 flammability requirements and carry MSL 1 moisture sensitivity ratings.

The primary distinction between these parts is the operating temperature range. The HTSS-105-03-L-D supports -55°C to 125°C operation, while the SBH11-PBPC-D05-ST-BK operates within -40°C to 105°C. Selection between these parts must be based on the specific thermal requirements of the application. For applications requiring extended low-temperature operation below -40°C or sustained operation above 105°C, the HTSS-105-03-L-D is the appropriate choice. For applications within the -40°C to 105°C range, the SBH11-PBPC-D05-ST-BK is functionally equivalent.

Both parts are manufactured to identical mechanical and electrical interface specifications, ensuring mechanical and electrical interchangeability within their respective operating temperature boundaries.

Frequently Asked Questions (FAQ)

Q: Are the HTSS-105-03-L-D and SBH11-PBPC-D05-ST-BK mechanically interchangeable?

A: Yes. Both connectors share identical mating pitch (0.100" / 2.54mm), row spacing (0.100" / 2.54mm), position count (10 in 2 rows), shrouding configuration (4-wall), and contact geometry (square male pins). They are mechanically interchangeable in board-to-board and cable applications.

Q: What is the key difference between these two parts?

A: The primary difference is operating temperature range. The HTSS-105-03-L-D operates from -55°C to 125°C, while the SBH11-PBPC-D05-ST-BK operates from -40°C to 105°C. The HTSS-105-03-L-D also uses Liquid Crystal Polymer (LCP) insulation, while the SBH11-PBPC-D05-ST-BK uses Polybutylene Terephthalate (PBT).

Q: Can I use the SBH11-PBPC-D05-ST-BK in place of the HTSS-105-03-L-D in all applications?

A: The SBH11-PBPC-D05-ST-BK is suitable for applications operating within -40°C to 105°C. Applications requiring operation below -40°C or above 105°C must use the HTSS-105-03-L-D.

Q: Are both parts RoHS3 compliant?

A: Yes. Both the HTSS-105-03-L-D and SBH11-PBPC-D05-ST-BK are ROHS3 compliant.

Q: What is the packaging difference between these parts?

A: The HTSS-105-03-L-D is supplied in Bulk packaging, while the SBH11-PBPC-D05-ST-BK is supplied in Tray packaging. This affects handling and storage but does not impact electrical or mechanical performance.

Q: Do both connectors support push-pull fastening?

A: Yes. Both the HTSS-105-03-L-D and SBH11-PBPC-D05-ST-BK feature push-pull fastening mechanisms.

Q: Are the contact finishes equivalent?

A: Both connectors feature gold-plated mating contacts. The HTSS-105-03-L-D has tin-plated posts with 10.0µin (0.25µm) gold thickness on mating surfaces. The SBH11-PBPC-D05-ST-BK has gold-plated posts with flash gold thickness on mating surfaces. Both finishes provide equivalent corrosion resistance and electrical performance for standard applications.
