Equivalent & Substitute Parts: HTB-48M-R

Part Overview

The HTB-48M-R is a cartridge fuse holder manufactured by Eaton - Electronics Division, designed for panel mount applications. This 16 A, 250V single-circuit holder accommodates 5mm x 20mm cartridge fuses and features quick connect termination. The part is classified as Active product status with full RoHS compliance. Substitute parts are identified when identical electrical specifications, mechanical dimensions, and functional characteristics are maintained across alternative part numbers or manufacturer variants.

Substiute Parts

HTB-48M-R

Eaton - Electronics DivisionIn Stock: 1159HTB-48M-R Datasheet

Current PartRFQ

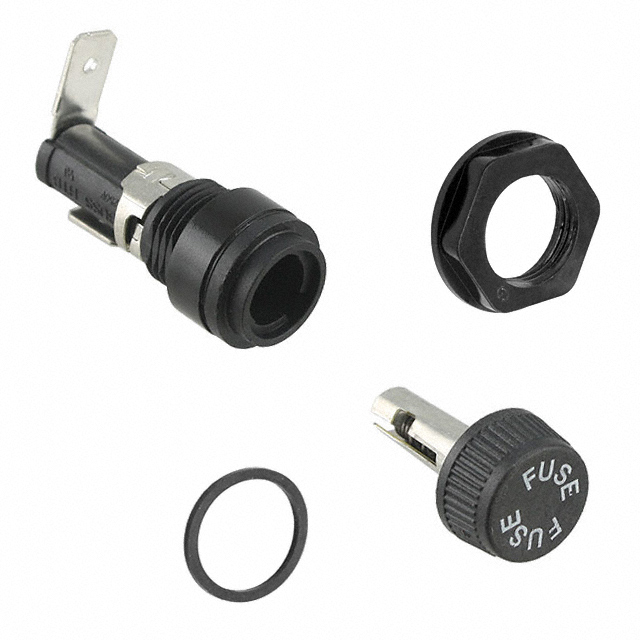

BK/HTB-48M-R

Eaton - Electronics DivisionIn Stock: 1303BK/HTB-48M-R Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the HTB-48M-R is determined by strict equivalence across the following critical parameters:

Electrical Specifications: Current rating (16 A), voltage rating (250V), and single-circuit configuration must be identical.

Mechanical Specifications: Fuse size (5mm x 20mm cartridge), panel mount orientation, and quick connect termination (0.250" / 6.3mm) must match exactly.

Functional Classification: Fuseholder type and cartridge fuse compatibility must be maintained.

Compliance & Status: Product must maintain Active status and RoHS compliance certification.

The substitute part BK/HTB-48M-R meets all substitution criteria through identical electrical and mechanical parameters, series designation, and functional specifications.

Parameter Comparison

Engineering Selection Recommendations

Both HTB-48M-R and BK/HTB-48M-R are Active status products from Eaton - Electronics Division with full RoHS compliance. The BK/HTB-48M-R carries ROHS3 certification, indicating compliance with the most current RoHS directive iteration. Both parts maintain identical electrical ratings (16 A, 250V), mechanical dimensions (5mm x 20mm cartridge), and termination specifications (quick connect 0.250" / 6.3mm).

Selection between these parts is based on inventory availability and compliance certification requirements. The BK/HTB-48M-R variant with ROHS3 certification is suitable for applications requiring the latest RoHS compliance documentation. Both parts are functionally interchangeable for 16 A, 250V single-circuit cartridge fuse holder applications with panel mount configuration.

Frequently Asked Questions (FAQ)

Q: Can BK/HTB-48M-R be used as a direct replacement for HTB-48M-R?

A: Yes. Both parts are electrically and mechanically identical with matching current ratings (16 A), voltage ratings (250V), fuse sizes (5mm x 20mm), mounting types (panel mount), and termination styles (quick connect 0.250" / 6.3mm).

Q: What is the difference between RoHS Compliant and ROHS3 Compliant?

A: ROHS3 represents compliance with the most current RoHS directive revision. Both certifications indicate hazardous substance restrictions are met. The BK/HTB-48M-R carries the newer ROHS3 designation.

Q: Are these parts compatible with different fuse sizes?

A: No. Both HTB-48M-R and BK/HTB-48M-R are designed exclusively for 5mm x 20mm cartridge fuses. Different fuse sizes require different holder models.

Q: What does the "BK/" prefix in BK/HTB-48M-R indicate?

A: The BK/ prefix is a manufacturer variant designation from Eaton - Electronics Division. It does not affect electrical or mechanical specifications.

Q: Can these holders be used in applications rated above 250V?

A: No. Both parts are rated for maximum 250V operation. Higher voltage applications require different holder models with appropriate voltage ratings.

Q: What is the quick connect termination specification?

A: Quick connect termination uses 0.250" (6.3mm) spade connectors for direct connection to panel-mounted circuits without soldering.
