Equivalent & Substitute Parts for HTB-44M-R

Part Overview

The HTB-44M-R is a cartridge fuse holder manufactured by Eaton - Electronics Division, designed for panel mount applications with a 16 A current rating at 250V. This single-circuit holder accommodates 5mm x 20mm cartridge fuses and features quick connect termination. The part is Active in product status and RoHS Compliant, making it suitable for industrial and commercial electrical distribution applications where reliable fuse protection is required. Substitute parts are identified when equivalent electrical and mechanical specifications are available from the same manufacturer, enabling component interchangeability for procurement flexibility and inventory optimization.

Substiute Parts

HTB-44M-R

Eaton - Electronics DivisionIn Stock: 930HTB-44M-R Datasheet

Current PartRFQ

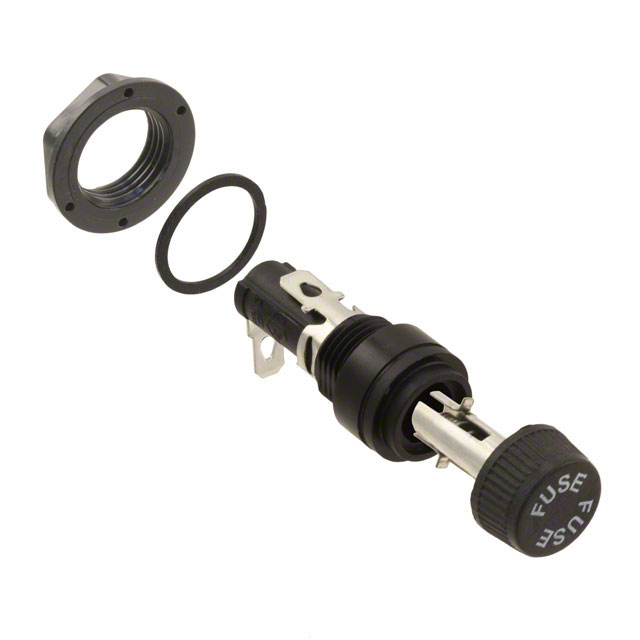

BK/HTB-44M-R

Eaton - Electronics DivisionIn Stock: 2032BK/HTB-44M-R Datasheet

DirectRFQ

BK2-HTC-623M

Eaton - Electronics DivisionIn Stock: 2653BK2-HTC-623M Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the HTB-44M-R are classified based on strict electrical and mechanical parameter alignment:

Direct Equivalent (BK/HTB-44M-R): This part maintains identical specifications across all critical parameters: 16 A current rating, 250V voltage, 5mm x 20mm fuse size, single circuit, panel mount configuration, and quick connect termination. The only variance is enhanced RoHS3 compliance status and REACH Unaffected designation. This part is a direct functional equivalent suitable for one-to-one replacement.

Similar Substitute (BK2-HTC-623M): This part shares the same fuse size (5mm diameter), voltage rating (250V), mounting type (panel mount), and single-circuit configuration. However, it differs in current rating (10 A versus 16 A), termination style (solder lug versus quick connect), and contact material specifications (brass with nickel finish). This part is classified as a similar substitute only when current rating reduction is acceptable for the application.

Parameter Comparison

Engineering Selection Recommendations

For Direct Replacement: BK/HTB-44M-R is the primary equivalent substitute. It maintains all electrical and mechanical specifications of the HTB-44M-R while offering enhanced ROHS3 compliance and REACH Unaffected status. Both parts are Active in product status and suitable for immediate substitution in existing designs and applications.

For Current-Reduced Applications: BK2-HTC-623M may be selected only when the application circuit requires a maximum 10 A current rating instead of 16 A. This part maintains voltage, fuse size, mounting configuration, and single-circuit design but requires solder lug termination instead of quick connect. Selection of this part necessitates verification that the 10 A rating satisfies circuit protection requirements and that solder lug termination is compatible with the PCB or panel layout.

All three parts are manufactured by Eaton - Electronics Division, carry Active product status, and meet RoHS compliance requirements, ensuring long-term availability and regulatory conformance.

Frequently Asked Questions (FAQ)

Q: Can BK/HTB-44M-R be used as a direct replacement for HTB-44M-R?

A: Yes. BK/HTB-44M-R is a direct equivalent with identical electrical and mechanical specifications: 16 A current rating, 250V voltage, 5mm x 20mm fuse size, single circuit, panel mount, and quick connect termination. The part offers enhanced ROHS3 compliance and REACH Unaffected status.

Q: What are the key differences between HTB-44M-R and BK2-HTC-623M?

A: The primary differences are current rating (16 A versus 10 A) and termination style (quick connect versus solder lug). BK2-HTC-623M also specifies brass contact material with nickel finish. Both parts share 250V voltage, 5mm fuse diameter, panel mount configuration, and single-circuit design.

Q: When should BK2-HTC-623M be selected instead of the direct equivalent?

A: BK2-HTC-623M should be selected only when the application circuit requires a maximum 10 A current rating and solder lug termination is compatible with the installation method. This part is not suitable for applications requiring 16 A protection.

Q: Are all three parts compatible with 5mm x 20mm cartridge fuses?

A: HTB-44M-R and BK/HTB-44M-R are fully compatible with 5mm x 20mm cartridge fuses. BK2-HTC-623M accommodates 5mm diameter fuses but does not specify the 20mm length requirement in its detailed parameters.

Q: What is the inventory status for each part?

A: HTB-44M-R has 841 pieces in stock. BK/HTB-44M-R has 1943 pieces in stock. BK2-HTC-623M has 2571 pieces in stock. All parts are listed as New Original.

Q: Do all parts meet RoHS compliance?

A: Yes. HTB-44M-R and BK2-HTC-623M are RoHS Compliant. BK/HTB-44M-R is ROHS3 Compliant, which represents an enhanced compliance level. All parts have MSL Rating 1 (Unlimited).
