HTB 100-TP Current Sensor Hall Effect Equivalent & Substitute Parts

Part Overview

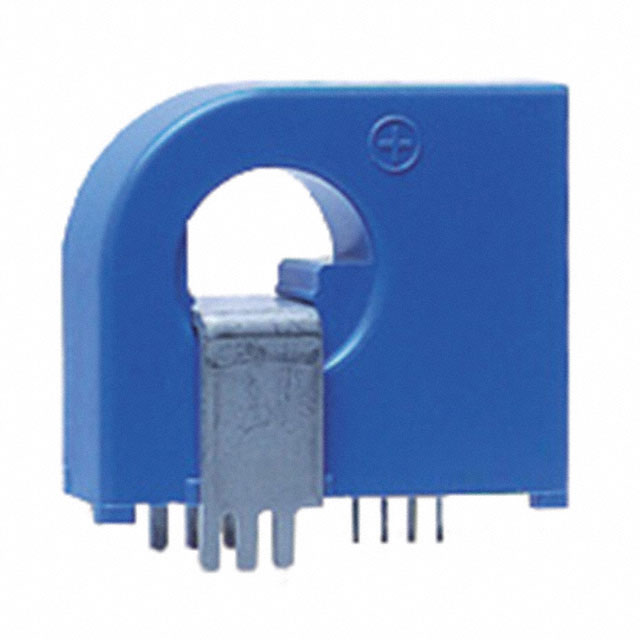

The HTB 100-TP is an active Hall Effect current sensor manufactured by LEM USA Inc., designed for AC/DC current measurement applications requiring 100A sensing capacity. This open-loop, bidirectional module operates with a single pass-through conductor configuration and delivers ratiometric voltage output. The product maintains Active status with RoHS compliance and REACH unaffected certification. Substitute parts are identified when application requirements permit operation at reduced current sensing ranges while maintaining compatibility across electrical, mechanical, and environmental parameters.

Key Parameters

Parameter	Value
Manufacturer	LEM USA Inc.
Series	HTB
Sensor Type	Hall Effect, Open Loop
Current Sensing Range	100A
Number of Channels	1
Output Type	Ratiometric, Voltage
Frequency Response	DC ~ 50kHz
Linearity	±1%
Accuracy	±1%
Supply Voltage	±12V ~ 15V
Response Time	3µs
Operating Temperature Range	-40°C ~ 80°C
Polarization	Bidirectional
Mounting Type	Through Hole
Package Type	Module, Single Pass Through
RoHS Status	RoHS Compliant

Substitute Part Grouping Explanation

Substitution of the HTB 100-TP is limited to the HTB 50-TP based on strict parametric compatibility within the HTB series. The substitute relationship is valid when the application current measurement requirement does not exceed 50A. Both parts share identical electrical characteristics across all parameters except current sensing capacity: identical sensor technology (Hall Effect, Open Loop), output configuration (Ratiometric Voltage), frequency response (DC ~ 50kHz), accuracy (±1%), linearity (±1%), supply voltage (±12V ~ 15V), response time (3µs), operating temperature range (-40°C ~ 80°C), polarization (Bidirectional), and mechanical configuration (Through Hole, Module, Single Pass Through).

The HTB 50-TP functions as a parametric equivalent when current sensing requirements are 50A or below. No other substitutes are provided in the reference data.

Parameter Comparison

Parameter	HTB 100-TP	HTB 50-TP	Compatibility
Manufacturer	LEM USA Inc.	LEM USA Inc.	Identical
Series	HTB	HTB	Identical
Sensor Type	Hall Effect, Open Loop	Hall Effect, Open Loop	Identical
Current Sensing Range	100A	50A	Reduced Capacity
Number of Channels	1	1	Identical
Output Type	Ratiometric, Voltage	Ratiometric, Voltage	Identical
Frequency Response	DC ~ 50kHz	DC ~ 50kHz	Identical
Linearity	±1%	±1%	Identical
Accuracy	±1%	±1%	Identical
Supply Voltage	±12V ~ 15V	±12V ~ 15V	Identical
Response Time	3µs	3µs	Identical
Operating Temperature Range	-40°C ~ 80°C	-40°C ~ 80°C	Identical
Polarization	Bidirectional	Bidirectional	Identical
Mounting Type	Through Hole	Through Hole	Identical
Package Type	Module, Single Pass Through	Module, Single Pass Through	Identical
RoHS Status	RoHS Compliant	RoHS Compliant	Identical

Engineering Selection Recommendations

Selection between HTB 100-TP and HTB 50-TP is determined by application current measurement requirements. The HTB 100-TP is the primary selection for applications requiring 50A to 100A current sensing. The HTB 50-TP serves as a substitute only when the maximum current to be measured does not exceed 50A.

Both parts maintain Active product status and carry identical compliance certifications: RoHS Compliant, REACH Unaffected, and EAR99 ECCN classification. Both are packaged in Bulk format and utilize identical Through Hole mounting configuration with Module, Single Pass Through mechanical design.

Electrical performance characteristics are identical across both parts: ±1% accuracy, ±1% linearity, 3µs response time, DC to 50kHz frequency response, and ±12V to 15V supply voltage operation. Operating temperature range spans -40°C to 80°C for both variants.

Frequently Asked Questions (FAQ)

Q: When is HTB 50-TP a valid substitute for HTB 100-TP?

A: The HTB 50-TP is a valid substitute when the application current measurement requirement does not exceed 50A. All other electrical, mechanical, and environmental parameters are identical between the two parts.

Q: Are there differences in output signal characteristics between HTB 100-TP and HTB 50-TP?

A: No. Both parts provide identical ratiometric voltage output, frequency response (DC ~ 50kHz), accuracy (±1%), and linearity (±1%). The only difference is the maximum current sensing range.

Q: Can HTB 100-TP be used in place of HTB 50-TP?

A: Yes. The HTB 100-TP can be used in applications designed for the HTB 50-TP, as it provides the same electrical performance with extended current sensing capacity.

Q: Are the mounting and package configurations identical?

A: Yes. Both HTB 100-TP and HTB 50-TP use Through Hole mounting type and Module, Single Pass Through package configuration.

Q: Do both parts operate across the same temperature range?

A: Yes. Both parts operate from -40°C to 80°C and maintain identical accuracy and linearity specifications across this range.

Q: What is the supply voltage requirement for both parts?

A: Both HTB 100-TP and HTB 50-TP require ±12V to 15V supply voltage.

Q: Are there any compliance or certification differences?

A: No. Both parts are RoHS Compliant, REACH Unaffected, and classified as EAR99 under ECCN regulations.
