HSS-L2C-110 Equivalent & Substitute Parts

Part Overview

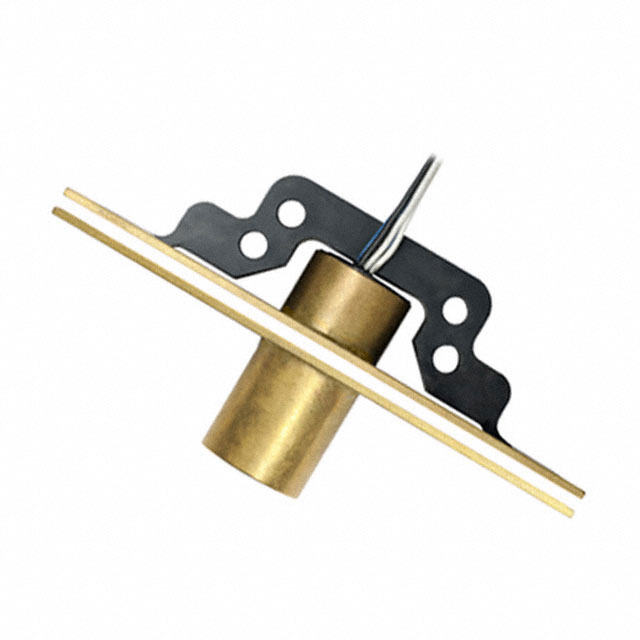

The HSS-L2C-110 is a magnetic ball switch sensor manufactured by Magnasphere Corp, configured as a SPST-NC (Single Pole Single Throw - Normally Closed) device with two wire leads. This component functions as a magnetic sensor module that changes state in response to magnetic field presence or absence. The HSS-L2C-110 is classified as obsolete product status, making identification of active equivalent parts essential for ongoing design support, maintenance, and procurement continuity.

Substiute Parts

HSS-L2C-110

Magnasphere CorpIn Stock: 1104HSS-L2C-110 Datasheet

Current PartRFQ

HSS-L2C-111

Magnasphere CorpIn Stock: 1261HSS-L2C-111 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the HSS-L2C-110 is determined by strict equivalence across the following critical parameters:

• Sensor Type & Function: Ball switch configuration with magnetic actuation
• Electrical Output: SPST-NC (2-wire) switching topology
• Termination Interface: Wire leads connection method
• Operating Temperature Range: -40°C to 80°C capability
• Package Form Factor: Module-level encapsulation
• Manufacturer Series Compatibility: HSS L2 series family

The HSS-L2C-111 qualifies as a direct substitute because it maintains identical specifications across all functional and mechanical parameters while offering active product status and improved availability.

Parameter Comparison

Engineering Selection Recommendations

The HSS-L2C-111 is the direct functional equivalent for HSS-L2C-110 applications. Selection of HSS-L2C-111 is supported by the following engineering factors:

Product Status: HSS-L2C-111 maintains active product status with Magnasphere Corp, ensuring continued manufacturing support, documentation availability, and supply chain reliability. The HSS-L2C-110 obsolete status creates long-term procurement risk.

Regulatory Compliance: HSS-L2C-111 is certified RoHS Compliant, meeting current environmental and hazardous substance restrictions. This compliance status is critical for applications subject to EU RoHS Directive 2011/65/EU or equivalent regional regulations.

Electrical & Mechanical Equivalence: All functional parameters—SPST-NC output topology, wire lead termination, magnetic actuation, operating temperature range, and module packaging—are identical between both parts. No circuit redesign or mechanical modification is required.

Inventory & Availability: HSS-L2C-111 inventory (1180 Pcs) exceeds HSS-L2C-110 stock (1030 Pcs), providing superior procurement flexibility and lead time assurance.

Frequently Asked Questions (FAQ)

Q: Can HSS-L2C-111 be used as a direct replacement for HSS-L2C-110 without circuit modification?

A: Yes. Both parts are electrically and mechanically identical. The SPST-NC (2-wire) output, wire lead termination, operating temperature range, and module package form factor are equivalent. No circuit redesign is necessary.

Q: What is the primary reason to substitute HSS-L2C-110 with HSS-L2C-111?

A: HSS-L2C-110 is classified as obsolete, creating supply discontinuity risk. HSS-L2C-111 is an active product with confirmed manufacturing support, improved availability, and RoHS compliance certification.

Q: Are there packaging differences between HSS-L2C-110 and HSS-L2C-111?

A: Both parts use Module-level packaging. HSS-L2C-111 is supplied in Box packaging format, while HSS-L2C-110 packaging specification is not detailed. This difference does not affect functional compatibility or circuit integration.

Q: Does HSS-L2C-111 meet RoHS requirements?

A: Yes. HSS-L2C-111 is RoHS Compliant. HSS-L2C-110 RoHS status is not specified in available documentation.

Q: What are the critical parameters that define substitution eligibility for this magnetic sensor?

A: Substitution eligibility is determined by: (1) Ball switch type, (2) SPST-NC output configuration, (3) Magnetic actuator material, (4) Wire lead termination, (5) -40°C to 80°C operating temperature range, (6) Module package form factor, and (7) HSS L2 series family membership. All parameters must match for direct substitution.

Q: Is there any difference in magnetic sensitivity or actuation distance between these parts?

A: Magnetic sensitivity and actuation distance specifications are not provided in the available technical parameters for either part. Substitution is based on the provided electrical and mechanical specifications only.
