HS200 220R J Equivalent & Substitute Parts

Part Overview

The HS200 220R J is a 220 Ohms ±5% 200W wirewound chassis mount resistor manufactured by Ohmite. This component is designed for high-power applications requiring reliable thermal dissipation through aluminum housing and flanged mounting. The part is currently in active production status with 891 units in stock. Equivalent and substitute parts are identified when component availability is limited, procurement lead times are extended, or design flexibility permits tolerance or packaging variations within acceptable electrical and mechanical parameters.

Substiute Parts

HS200 220R J

OhmiteIn Stock: 988HS200 220R J Datasheet

Current PartRFQ

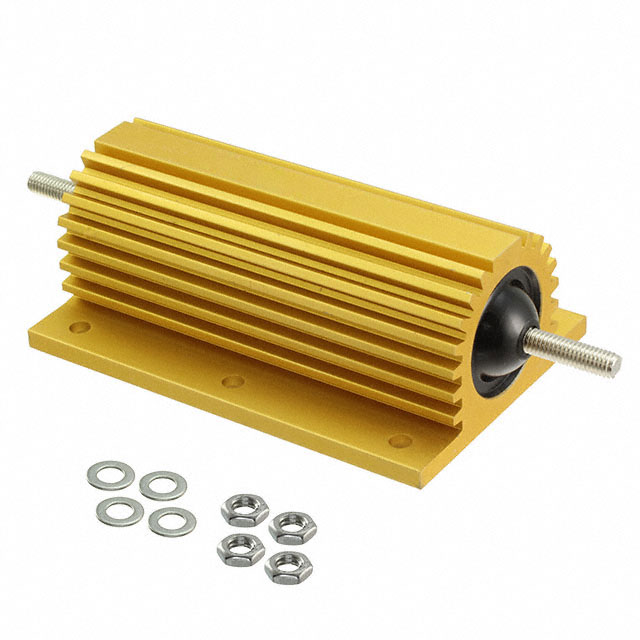

HS200 220R F

ARCOLIn Stock: 803HS200 220R F Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution for the HS200 220R J is based on the following critical parameters that must remain constant or within acceptable variation:

• Resistance Value: 220 Ohms (exact match required)
• Power Rating: 200W (exact match required)
• Composition: Wirewound (exact match required)
• Housing Type: Aluminum (exact match required)
• Mounting Feature: Flanges with M6 Threaded leads (exact match required)
• RoHS Compliance: Required for regulatory compatibility

Acceptable variations within substitution:

• Tolerance: May be tighter (±1%) than the original specification (±5%)
• Temperature Coefficient: ±100ppm/°C is acceptable as equivalent to 100ppm/°C
• Packaging: Bulk packaging is acceptable as an alternative to box packaging
• Physical Dimensions: Minor width variations are acceptable provided height and length remain within specification

Parameter Comparison

Engineering Selection Recommendations

The HS200 220R F (ARCOL) is a direct electrical and mechanical substitute for the HS200 220R J (Ohmite). Both components meet the following criteria:

• Identical resistance value and power rating
• Identical wirewound composition and aluminum housing construction
• Identical flanged mounting with M6 threaded leads
• Identical height and length dimensions
• Both RoHS compliant and in active production

The HS200 220R F offers improved tolerance specification (±1% versus ±5%), which provides tighter resistance accuracy without compromising circuit performance. The width dimension is reduced (1.791" versus 2.854"), which may provide layout advantages in space-constrained applications while maintaining identical thermal and electrical performance.

Both components carry equivalent regulatory compliance (RoHS, ECCN EAR99, HTSUS 8533.29.0000) and moisture sensitivity level (MSL 1 - Unlimited).

Frequently Asked Questions (FAQ)

Q: Can the HS200 220R F replace the HS200 220R J in existing designs?

A: Yes. The HS200 220R F is electrically and mechanically equivalent. Both components have identical resistance, power rating, composition, housing type, and mounting configuration. The substitute part meets or exceeds the original specification.

Q: What is the difference in tolerance between these parts?

A: The HS200 220R J has ±5% tolerance, while the HS200 220R F has ±1% tolerance. The tighter tolerance of the substitute part provides improved resistance accuracy and is fully compatible with applications designed for the original part.

Q: Are there physical dimension differences?

A: The HS200 220R F has a reduced width dimension (1.791" versus 2.854") while maintaining identical length (4.631") and height (1.646"). This may provide layout benefits in compact designs. All critical mounting dimensions remain identical.

Q: Are both parts RoHS compliant?

A: Yes. Both the HS200 220R J and HS200 220R F are RoHS compliant and carry identical regulatory certifications.

Q: What is the difference in packaging?

A: The HS200 220R J is supplied in box packaging, while the HS200 220R F is supplied in bulk packaging. This is a procurement and handling consideration only and does not affect component performance or compatibility.

Q: Can I use the HS200 220R F in high-temperature applications?

A: Both components have equivalent temperature coefficient specifications (100ppm/°C and ±100ppm/°C respectively) and are suitable for the same operating temperature range. Verify specific operating temperature limits with the manufacturer datasheet for your application requirements.
