HR30-7R-12PC(71) Equivalent & Substitute Parts

Part Overview

The HR30-7R-12PC(71) is a 12-position circular connector receptacle housing designed for panel mount applications with male pin compatibility. Manufactured by Hirose Electric Co Ltd, this connector features a push-pull fastening mechanism, keyed orientation, and IP67/IP68 ingress protection rating suitable for dust-tight and waterproof applications.

The HR30-7R-12PC(71) is classified as obsolete. Identifying equivalent and substitute parts is necessary to maintain design continuity, ensure supply chain availability, and support ongoing production or maintenance requirements for systems utilizing this connector.

Substiute Parts

HR30-7R-12PC(71)

Hirose Electric Co LtdIn Stock: 966HR30-7R-12PC(71) Datasheet

Current PartRFQ

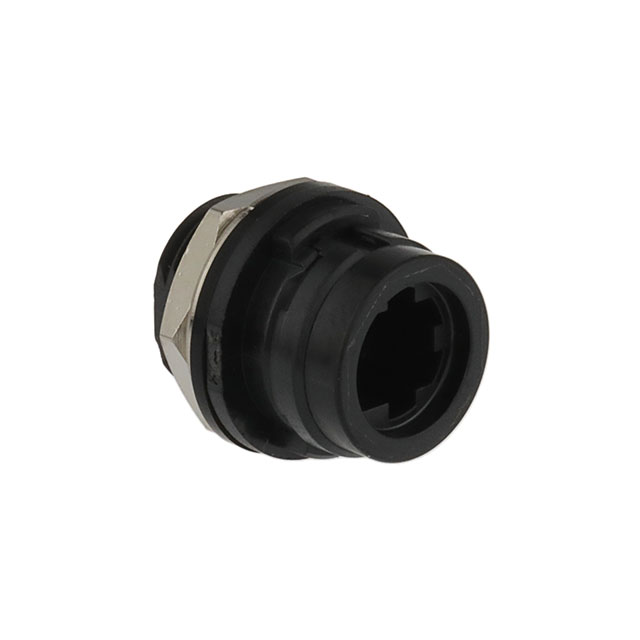

HR30-7R-12PC(31)

Hirose Electric Co LtdIn Stock: 4517HR30-7R-12PC(31) Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the HR30-7R-12PC(71) is determined by strict alignment of the following critical parameters:

• Connector Type & Series: Must be Receptacle Housing from the HR30 series
• Position Count & Shell Size: Must maintain 12 positions with shell size insert 7
• Mounting Configuration: Panel mount with bulkhead rear side nut fastening
• Fastening & Orientation: Push-pull mechanism with keyed orientation
• Environmental Rating: IP67/IP68 ingress protection
• Material & Temperature Range: Polyphenylene Sulfide (PPS) shell with -25°C ~ 85°C operating range
• Contact Configuration: Crimp contact type for male pins

The substitute part HR30-7R-12PC(31) meets all these criteria, differing only in packaging configuration and product status classification.

Parameter Comparison

Engineering Selection Recommendations

The HR30-7R-12PC(31) is the direct substitute for the obsolete HR30-7R-12PC(71). Both parts are manufactured by Hirose Electric Co Ltd and share identical electrical and mechanical specifications across all critical parameters.

The primary distinction is product status: HR30-7R-12PC(31) is classified as active with documented RoHS3 compliance and REACH status, whereas HR30-7R-12PC(71) is obsolete. For new designs or ongoing production requiring this connector type, HR30-7R-12PC(31) is the appropriate selection due to its active status and regulatory compliance documentation.

Both parts carry UL94 V-0 flammability rating and maintain the same operating temperature range, ingress protection rating, and mechanical interface specifications. The packaging difference (bulk for the substitute versus unspecified for the original) does not affect functional compatibility.

Frequently Asked Questions (FAQ)

Q: Can HR30-7R-12PC(31) be used as a direct replacement for HR30-7R-12PC(71)?

A: Yes. Both parts are 12-position circular connector receptacle housings from the HR30 series with identical electrical and mechanical specifications. They share the same shell size, mounting configuration, fastening mechanism, and environmental ratings. The difference in part number suffix reflects packaging configuration and product status classification only.

Q: What is the significance of the part number suffix difference between (71) and (31)?

A: The suffix indicates packaging and product status. HR30-7R-12PC(71) is obsolete with unspecified packaging, while HR30-7R-12PC(31) is active with bulk packaging. The core connector specifications remain identical.

Q: Are there any compliance differences between these parts?

A: HR30-7R-12PC(31) includes documented RoHS3 compliance and REACH status information. Both parts maintain UL94 V-0 flammability rating and identical environmental specifications. For applications requiring regulatory compliance documentation, HR30-7R-12PC(31) provides explicit certification records.

Q: Will HR30-7R-12PC(31) work with existing male connector plugs designed for HR30-7R-12PC(71)?

A: Yes. Both receptacle housings maintain identical keyed orientation, push-pull fastening, and 12-position configuration. Male connector plugs designed for the original part are mechanically and electrically compatible with the substitute.

Q: What is the inventory status for these parts?

A: HR30-7R-12PC(71) has 860 pieces in stock as new original inventory. HR30-7R-12PC(31) has 4410 pieces in stock as new original inventory in bulk packaging.
