HR30-6R-6S Equivalent & Substitute Parts

Part Overview

The HR30-6R-6S is a 6-position circular connector receptacle with female sockets and solder cup termination manufactured by Hirose Electric Co Ltd. This part is classified as obsolete, which necessitates identification of active equivalent alternatives to maintain supply chain continuity for applications requiring this connector type. The HR30 series provides standardized circular connector solutions for industrial applications requiring reliable mating interfaces.

Substiute Parts

HR30-6R-6S

Hirose Electric Co LtdIn Stock: 801HR30-6R-6S Datasheet

Current PartRFQ

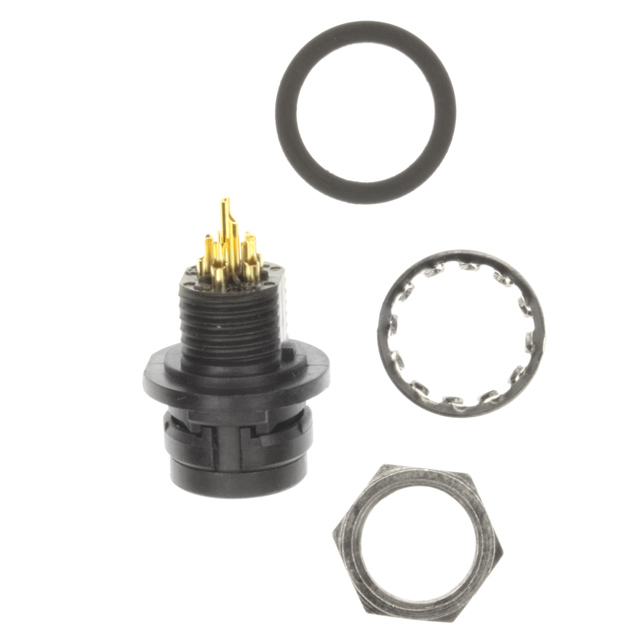

HR30-6R-6S(71)

Hirose Electric Co LtdIn Stock: 500406HR30-6R-6S(71) Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The HR30-6R-6S(71) qualifies as a direct substitute based on the following alignment of critical parameters:

Matching Parameters:

• Manufacturer: Hirose Electric Co Ltd (same manufacturer ensures design compatibility)
• Series: HR30 (same connector series maintains mechanical and electrical interface standards)
• Number of Positions: 6 (identical contact count)
• Connector Type: Receptacle, Female Sockets (same gender and socket configuration)
• Termination: Solder Cup (identical termination method)
• Shell Size - Insert: 6 (same physical insert size)
• Base Product Number: HR30 (same base platform)

The HR30-6R-6S(71) represents an active production variant within the same HR30 series, providing functional equivalence with enhanced specifications and current availability.

Parameter Comparison

Engineering Selection Recommendations

The HR30-6R-6S(71) is the designated substitute for the obsolete HR30-6R-6S. Selection of the HR30-6R-6S(71) is supported by:

• Product Status: The substitute is in active production, ensuring long-term availability and supply chain stability.
• Compliance: The HR30-6R-6S(71) achieves ROHS3 compliance, meeting current regulatory requirements for new designs and procurement.
• Series Continuity: Both parts belong to the HR30 series, maintaining mechanical and electrical interface compatibility.
• Functional Equivalence: Identical connector type, position count, and termination method ensure direct functional replacement.

For applications requiring RoHS non-compliant components, the original HR30-6R-6S remains available in existing inventory (702 pcs). For new designs or compliance-driven applications, the HR30-6R-6S(71) is the appropriate selection.

Frequently Asked Questions (FAQ)

Q: Can the HR30-6R-6S(71) directly replace the HR30-6R-6S in existing designs?

A: Yes. Both connectors share identical core specifications: 6-position receptacle configuration, female sockets, solder cup termination, and HR30 series mechanical interface. The HR30-6R-6S(71) includes enhanced specifications such as gold contact finish and IP67/IP68 ingress protection, which provide equivalent or superior performance.

Q: What is the primary difference between these two parts?

A: The HR30-6R-6S is obsolete and lacks detailed electrical and environmental specifications in available documentation. The HR30-6R-6S(71) is an active production variant with fully specified electrical ratings (2A, 100VAC/140VDC), environmental protection (IP67/IP68), and regulatory compliance (ROHS3). Both maintain identical mechanical interfaces within the HR30 series.

Q: Are there packaging differences between the HR30-6R-6S and HR30-6R-6S(71)?

A: The HR30-6R-6S packaging is not specified. The HR30-6R-6S(71) is supplied in Tray packaging, which is standard for production quantities and automated assembly processes.

Q: Does the HR30-6R-6S(71) meet current regulatory requirements?

A: Yes. The HR30-6R-6S(71) is ROHS3 compliant and REACH affected, meeting current environmental and chemical safety regulations. The original HR30-6R-6S is RoHS non-compliant and REACH unaffected, reflecting its obsolete status.

Q: What applications are supported by the HR30-6R-6S(71)?

A: The HR30-6R-6S(71) is specified for Industrial, Marine, and Medical applications, with operating temperature range of -25°C to 85°C and IP67/IP68 environmental protection suitable for harsh operating conditions.
