HR212-10LP-5PC(71) Equivalent & Substitute Parts
Part Overview

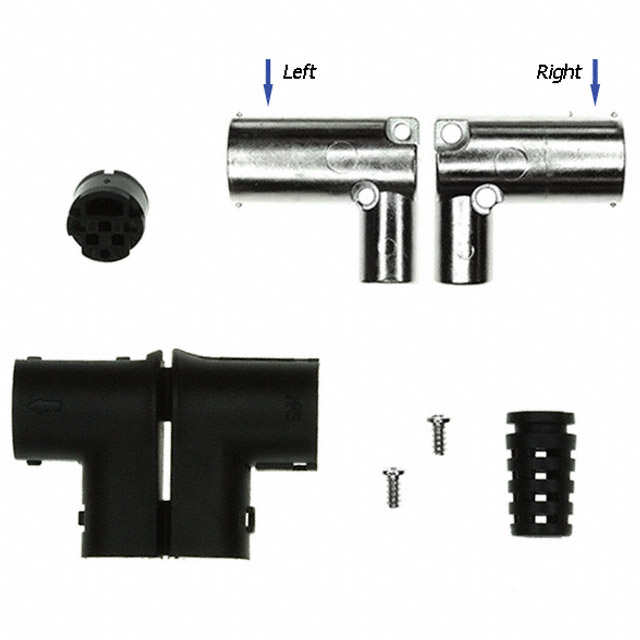

The HR212-10LP-5PC(71) is a 5-position circular connector plug housing manufactured by Hirose Electric Co Ltd. This component features a male pin configuration with right-angle mounting, inline free-hanging design, and integrated backshell with strain relief. The part is classified as obsolete, making identification of compatible substitute components essential for ongoing system maintenance and new design implementations. The HR212 series provides shielded connectivity with crimp termination suitable for applications requiring robust circular connector solutions.
Substiute Parts
Key Parameters
| Parameter | Value |
|---|---|
| Manufacturer Part Number | HR212-10LP-5PC(71) |
| Manufacturer | Hirose Electric Co Ltd |
| Series | HR212 |
| Category | Circular Connectors |
| Connector Type | Plug Housing, Male Pins |
| Number of Positions | 5 |
| Shell Size - Insert | 10 |
| Contact Type | Crimp |
| Contact Size | 1.0mm |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Fastening Type | Snap-In |
| Orientation | Keyed |
| Shielding | Shielded |
| Operating Temperature Range | -15°C ~ 60°C |
| Material Flammability Rating | UL94 V-0 |
| RoHS Status | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Product Status | Obsolete |
Substitute Part Grouping Explanation
Substitution compatibility for the HR212-10LP-5PC(71) is determined by the following critical parameters:
Mandatory Matching Parameters:
- Series designation (HR212)
- Number of positions (5)
- Shell size - insert (10)
- Connector type (Plug Housing, Male Pins)
- Contact type (Crimp)
- Mounting configuration (Free Hanging In-Line, Right Angle)
- Fastening mechanism (Snap-In)
- Orientation system (Keyed)
- Shielding requirement (Shielded)
- Operating temperature range (-15°C ~ 60°C)
- Material flammability rating (UL94 V-0)
- RoHS compliance status
The HR212-10LP-5PC(41) qualifies as a direct substitute based on alignment across all mandatory parameters. The primary distinction between these parts is product status: the main part is obsolete while the substitute remains active in production, with improved availability.
Parameter Comparison
| Parameter | HR212-10LP-5PC(71) | HR212-10LP-5PC(41) |
|---|---|---|
| Manufacturer | Hirose Electric Co Ltd | Hirose Electric Co Ltd |
| Series | HR212 | HR212 |
| Connector Type | Plug Housing, Male Pins | Plug Housing, Male Pins |
| Number of Positions | 5 | 5 |
| Shell Size - Insert | 10 | 10 |
| Contact Type | Crimp | Crimp |
| Mounting Type | Free Hanging (In-Line), Right Angle | Free Hanging (In-Line), Right Angle |
| Fastening Type | Snap-In | Snap-In |
| Orientation | Keyed | Keyed |
| Shielding | Shielded | Shielded |
| Operating Temperature Range | -15°C ~ 60°C | -15°C ~ 60°C |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| RoHS Status | RoHS Compliant | RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | 1 (Unlimited) |
| Product Status | Obsolete | Active |
Engineering Selection Recommendations
The HR212-10LP-5PC(41) is the appropriate substitute for the obsolete HR212-10LP-5PC(71). Both components maintain identical electrical and mechanical specifications across all critical parameters. The substitute part is currently in active production status with confirmed inventory availability (764 pcs), whereas the original part is obsolete with limited remaining stock (1110 pcs).
Both parts satisfy RoHS compliance requirements and carry UL94 V-0 flammability certification, meeting regulatory and safety standards for industrial applications. The MSL rating of 1 (Unlimited) indicates no moisture sensitivity constraints during storage or handling.
Selection of the HR212-10LP-5PC(41) provides design continuity while ensuring long-term component availability and supply chain stability.
Frequently Asked Questions (FAQ)
Q: Can HR212-10LP-5PC(41) be used as a direct replacement for HR212-10LP-5PC(71)?
A: Yes. Both parts share identical specifications for connector type, pin count, shell size, contact configuration, mounting orientation, and operating parameters. The substitute is functionally equivalent and mechanically compatible.
Q: What is the difference between these two part numbers?
A: The primary difference is product status. The HR212-10LP-5PC(71) is obsolete, while the HR212-10LP-5PC(41) remains in active production. The suffix designation (71 vs. 41) indicates different manufacturing batches or packaging configurations, but electrical and mechanical performance are equivalent.
Q: Are there any compliance or certification differences?
A: No. Both parts carry identical RoHS compliance status and UL94 V-0 flammability certification. Moisture sensitivity levels are equivalent at MSL 1 (Unlimited).
Q: What packaging format is provided for the substitute part?
A: The HR212-10LP-5PC(41) is supplied in bag packaging, whereas packaging information for the original part was not specified in the technical data.
Q: Are contacts included with these connector housings?
A: No. Both the main part and substitute are supplied as housings only. Contacts must be sourced separately and crimped into the housing assembly.
Q: What is the operating temperature range for these connectors?
A: Both parts operate within the range of -15°C to 60°C, suitable for standard industrial and commercial applications.
