Equivalent & Substitute Parts Reference: HPR1005C

Part Overview

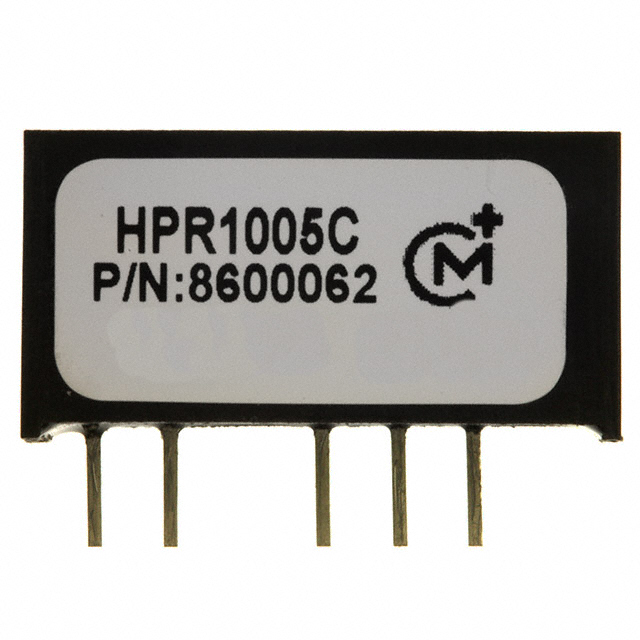

The Murata Power Solutions Inc. HPR1005C is a DC-DC converter categorized as an isolated module, delivering dual outputs of +15V and -15V up to 34mA each, with input voltage in the range of 4.5V–5.5V. This part features through-hole mounting in a 7-SIP package and provides 1 kV isolation suited for ITE (Commercial) applications. As the HPR1005C is currently categorized as "Obsolete," identification of alternative models is essential for continued production and design maintenance.

Substiute Parts

HPR1005C

Murata Power Solutions Inc.In Stock: 12452HPR1005C Datasheet

Current PartRFQ

MEA1D0515SC

Murata Power Solutions Inc.In Stock: 12430MEA1D0515SC Datasheet

DirectRFQ

PD01D0515A

Delta ElectronicsIn Stock: 1134PD01D0515A Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute part selection is based strictly on the following parameters: module type, input voltage range, output voltages and currents, output power, isolation voltage, number of outputs, mounting type, package style, and key mechanical (size/dimension) constraints. All listed substitutes conform exactly to the input, output, and package specifications as required for direct compatibility in both electrical and mechanical contexts.

Parameter Comparison

Engineering Selection Recommendations

The HPR1005C is listed as obsolete. Substitute options MEA1D0515SC and PD01D0515A possess active product statuses. Both substitutes are RoHS3 compliant and have REACH status unaffected. ECCN and HTSUS codes align among all parts. Inventory availability is present for all listed substitutes, ensuring continued supply. Component selection should follow regulatory compliance and active status as presented.

Frequently Asked Questions (FAQ)

Q: What substitution criteria are applied for HPR1005C?
A: Substitution is based on matching: type (isolated module), number of outputs, input voltage range, output voltages and currents, output power, isolation voltage, package style, mounting type, and size/dimension.

Q: Are the substitute models mechanically compatible with the HPR1005C?
A: The substitutes MEA1D0515SC and PD01D0515A share equivalent dimensions and through-hole packages. PD01D0515A also matches the 7-SIP module style; MEA1D0515SC utilizes a 6-SIP module but retains 5 leads and the same size.

Q: Can the substitute parts be used in similar regulatory and commercial applications?
A: Both MEA1D0515SC and PD01D0515A feature identical ECCN and HTSUS codes, RoHS3 compliance, and REACH status unaffected, suitable for commercial or regulatory requirements comparable to HPR1005C.

Q: Do operating temperature ranges differ among the options?
A: MEA1D0515SC and PD01D0515A provide broader operating temperature ranges compared to HPR1005C, based strictly on the provided input parameters.

Q: Are all listed substitutes available in new, original stock?
A: Inventory figures indicate availability for all substitute part numbers listed.

Q: Is electrical and output compatibility maintained?
A: All substitutes provide dual outputs of +15V and -15V, with output currents and power rates within strict requirements as given.
