HORNET-S1 Equivalent & Substitute Parts Reference

Part Overview

The HORNET-S1 is a remote control system manufactured by RF Solutions, consisting of an RF transmitter and receiver set operating at 433.92MHz with FM modulation. The system features a handheld interface with single-button control and operates across a 12V to 30V supply voltage range, delivering 10mW output power. This product is classified as obsolete, making identification of functionally equivalent alternatives necessary for ongoing system maintenance and new design implementations.

Substiute Parts

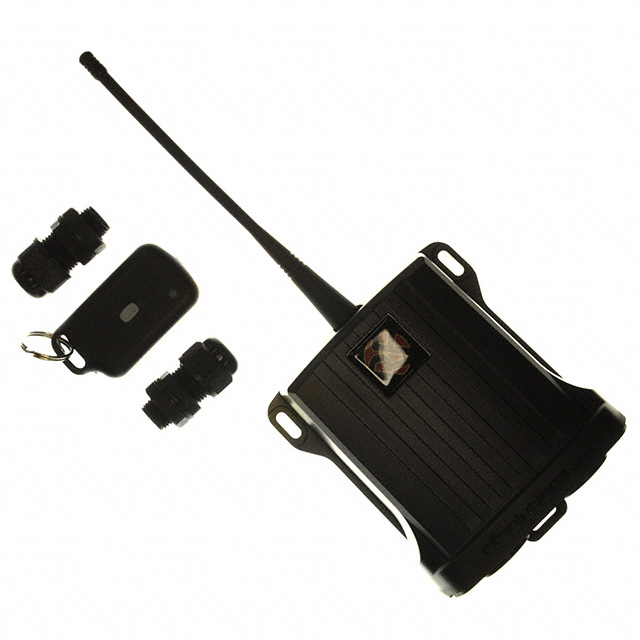

HORNET-S1

RF SolutionsIn Stock: 1223HORNET-S1 Datasheet

Current PartRFQ

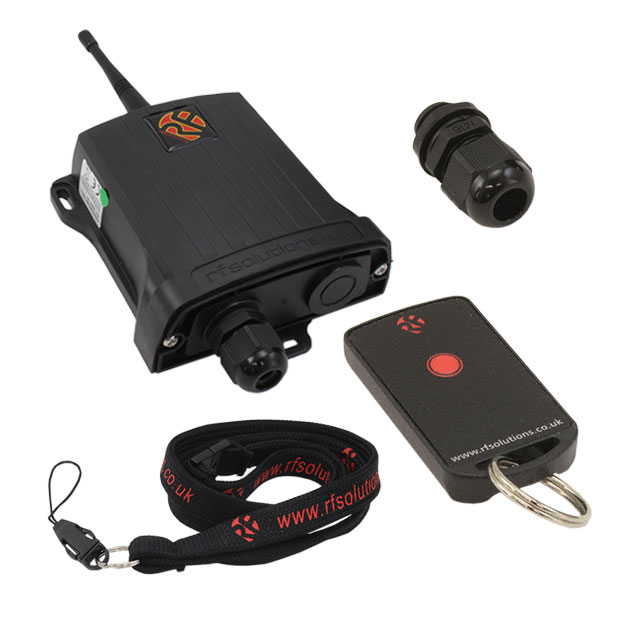

HORNETPRO-8S1

RF SolutionsIn Stock: 900HORNETPRO-8S1 Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the HORNET-S1 is determined by the following critical parameters:

Primary Compatibility Criteria:

• Function classification: Remote Control System with transmitter and receiver capability
• Interface configuration: Handheld control with single-channel operation
• Supply voltage compatibility: 12V to 30V operating range
• Regulatory compliance: ECCN 5A991G classification maintained
• Moisture sensitivity: MSL 1 rating for unlimited shelf life

Secondary Considerations:

• Product status transition from obsolete to active availability
• Packaging format suitable for field deployment
• Compliance certifications (RoHS, REACH) for regulatory adherence

The HORNETPRO-8S1 qualifies as a substitute based on matching functional requirements, identical supply voltage specifications, single-channel handheld interface, and regulatory classification alignment. Frequency variation (868MHz versus 433.92MHz) represents a design parameter change requiring system-level evaluation but does not preclude substitution in applications where frequency agility is permissible.

Parameter Comparison

Engineering Selection Recommendations

HORNETPRO-8S1 Substitution Basis:

The HORNETPRO-8S1 serves as the designated substitute for the obsolete HORNET-S1 based on the following engineering factors:

1. Functional Equivalence: Both devices provide single-channel remote control functionality with handheld transmitter interfaces and identical supply voltage specifications (12V to 30V).

2. Regulatory Compliance: Both parts maintain ECCN 5A991G classification. The HORNETPRO-8S1 provides enhanced compliance documentation through explicit RoHS3 compliance and REACH unaffected status, supporting modern procurement requirements.

3. Product Availability: The HORNETPRO-8S1 maintains active product status with 856 units in current inventory, ensuring supply chain continuity for applications previously dependent on the obsolete HORNET-S1.

4. Moisture Sensitivity Alignment: Both products share MSL 1 (Unlimited) rating, confirming equivalent handling and storage requirements.

5. Frequency Consideration: The frequency shift from 433.92MHz to 868MHz represents a system-level parameter change. Applications requiring strict frequency adherence to 433.92MHz must evaluate alternative solutions or conduct frequency compatibility assessment.

Frequently Asked Questions (FAQ)

Q: Can HORNETPRO-8S1 directly replace HORNET-S1 in existing installations?

A: Direct replacement is feasible for applications where the 868MHz operating frequency is compatible with system design parameters. The identical supply voltage range (12V to 30V), single-channel handheld interface, and functional classification support mechanical and electrical interchangeability. Applications locked to 433.92MHz operation require frequency compatibility verification before substitution.

Q: What are the key differences between these two parts?

A: The primary differences are operating frequency (433.92MHz versus 868MHz) and product status (obsolete versus active). The HORNETPRO-8S1 provides enhanced compliance certifications (RoHS3, REACH documentation) and current inventory availability. All other critical parameters—supply voltage, channel count, interface type, and regulatory classification—remain equivalent.

Q: Does the packaging difference affect substitution suitability?

A: The HORNETPRO-8S1 is supplied in box packaging, while the HORNET-S1 packaging is not specified. This difference does not affect functional compatibility or electrical performance. Packaging selection should be evaluated based on deployment requirements and inventory management procedures.

Q: Are there compliance considerations for substitution?

A: Both parts maintain ECCN 5A991G classification. The HORNETPRO-8S1 provides explicit RoHS3 compliance and REACH unaffected status, supporting modern regulatory requirements. Organizations with specific compliance mandates should verify that the HORNETPRO-8S1 certifications align with procurement specifications.

Q: What inventory status should influence substitution decisions?

A: The HORNET-S1 is classified as obsolete with 1192 units currently in stock. The HORNETPRO-8S1 maintains active product status with 856 units available. For long-term system support and future procurement cycles, the HORNETPRO-8S1 represents the sustainable alternative.
