HLMP0503 Equivalent & Substitute Parts Reference

Part Overview

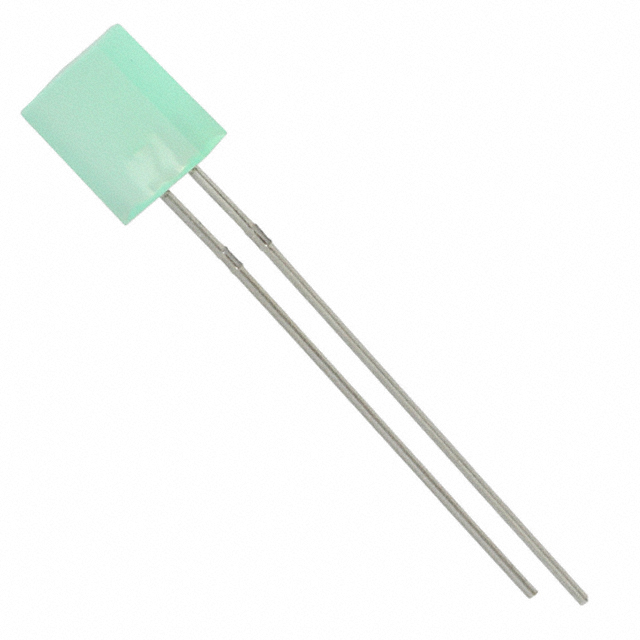

The HLMP0503 is a green LED indication component manufactured by Everlight Electronics Co Ltd, designed for through-hole mounting applications. This discrete 2.3V radial LED features a diffused rectangular lens with a 7.24mm x 2.42mm form factor and delivers 3mcd luminous intensity at 20mA test current. The product is classified as obsolete, necessitating identification of functionally equivalent alternatives for ongoing design support and component procurement.

Substiute Parts

HLMP0503

Everlight Electronics Co LtdIn Stock: 1061HLMP0503 Datasheet

Current PartRFQ

HLMP-0504

Broadcom LimitedIn Stock: 1302HLMP-0504 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the HLMP0503 is determined by strict alignment of the following electrical and mechanical parameters:

Critical Matching Parameters:

• Color: Green
• Lens Transparency: Diffused
• Lens Style: Rectangle with Flat Top
• Mounting Type: Through Hole
• Package / Case: Radial
• Viewing Angle: 100°
• Height (Max): 8.00mm
• Moisture Sensitivity Level: 1 (Unlimited)

Allowable Variation Parameters:

• Voltage - Forward (Vf) Typical: ±0.1V tolerance
• Millicandela Rating: Within 10% of specified value
• Lens Size: ±0.1mm tolerance on dimensions
• Wavelength - Peak: ±5nm tolerance

The HLMP-0504 manufactured by Broadcom Limited meets all critical matching parameters and operates within allowable variation ranges for electrical characteristics, qualifying it as a direct substitute for the obsolete HLMP0503.

Parameter Comparison

Engineering Selection Recommendations

The HLMP-0504 manufactured by Broadcom Limited is the qualified substitute for the obsolete HLMP0503. Selection of this alternative is supported by the following factors:

Product Status: The HLMP-0504 maintains Active product status, ensuring continued availability and manufacturing support, whereas the HLMP0503 is classified as Obsolete.

Compliance Certifications: Both components share identical REACH Status (REACH Unaffected) and ECCN classification (EAR99), maintaining regulatory equivalence. The HLMP-0504 additionally carries RoHS3 Compliance certification, providing enhanced environmental compliance for new designs.

Electrical Compatibility: Forward voltage differential of 0.1V (2.3V vs 2.2V) falls within standard circuit design tolerances for LED indication applications. Millicandela rating variance of 0.4mcd (3mcd vs 2.6mcd) represents approximately 13% reduction in luminous intensity, acceptable for indication-class applications where absolute brightness is not critical.

Mechanical Compatibility: Lens dimensions and height specifications remain within manufacturing tolerance ranges. Radial package configuration and through-hole mounting type are identical, ensuring direct PCB footprint compatibility without layout modification.

Inventory Availability: The HLMP-0504 is available in higher stock quantity (1215 Pcs) compared to the HLMP0503 (988 Pcs), supporting procurement reliability.

Frequently Asked Questions (FAQ)

Q: Can the HLMP-0504 be used as a direct replacement for the HLMP0503 without circuit modification?

A: Yes. The HLMP-0504 operates at 2.2V forward voltage compared to the HLMP0503 at 2.3V. This 0.1V difference is within standard LED circuit design tolerances and does not require current-limiting resistor recalculation for typical 20mA test current applications. Through-hole radial package configuration and mechanical dimensions are identical.

Q: What is the significance of the millicandela rating difference between these parts?

A: The HLMP0503 delivers 3mcd while the HLMP-0504 delivers 2.6mcd at 20mA test current. This represents a 13% reduction in luminous intensity. For indication-class applications where the LED serves as a status indicator rather than a light source, this variance is functionally acceptable. Applications requiring specific brightness levels should evaluate this parameter against design requirements.

Q: Are there any compliance or regulatory differences between these components?

A: Both components share identical REACH Status (REACH Unaffected) and ECCN classification (EAR99). The HLMP-0504 carries additional RoHS3 Compliance certification. No regulatory barriers exist to substitution.

Q: How do the lens dimensions compare between these parts?

A: The HLMP0503 lens measures 7.24mm x 2.42mm while the HLMP-0504 lens measures 7.31mm x 2.35mm. Dimensional variance is 0.07mm and 0.07mm respectively, representing less than 1% tolerance variation. Both maintain identical rectangular flat-top lens style and diffused transparency. PCB footprint compatibility is maintained.

Q: What is the wavelength specification for each component?

A: Both components specify 565nm peak wavelength, confirming identical green LED spectral characteristics. The HLMP-0504 additionally specifies 569nm dominant wavelength, providing additional spectral definition. This does not affect substitution compatibility.

Q: Why is the HLMP0503 classified as Obsolete?

A: Product status reflects manufacturer discontinuation decisions. The HLMP-0504 maintains Active status, ensuring continued manufacturing support and component availability for new designs and ongoing production requirements.
