Equivalent & Substitute Parts for HKP-EL-ZZ Fuse Holder

Part Overview

The HKP-EL-ZZ is a cartridge fuse holder manufactured by Eaton - Electronics Division, rated for 30 A at 250V with single-circuit panel mount configuration. This component is classified as obsolete, necessitating identification of active equivalent parts to maintain design continuity and ensure procurement availability. The fuse holder accommodates 0.25" diameter by 1.26" length cartridge fuses with horizontal and vertical mounting orientation capability.

Substiute Parts

HKP-EL-ZZ

Eaton - Electronics DivisionIn Stock: 803HKP-EL-ZZ Datasheet

Current PartRFQ

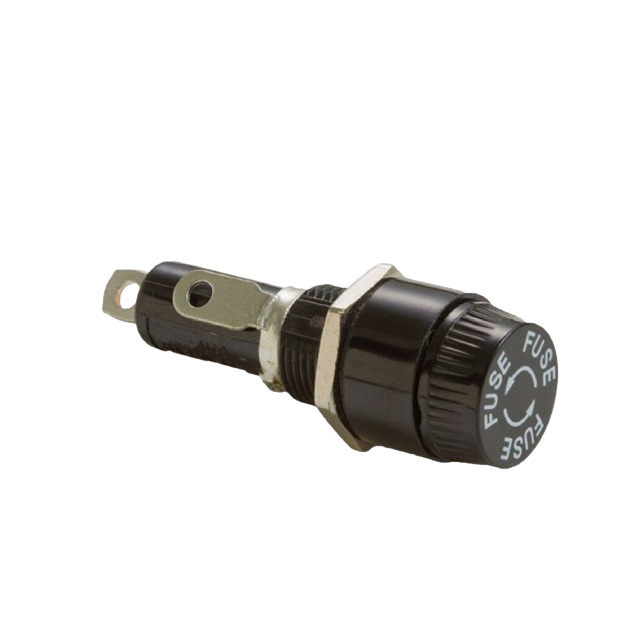

PMA-KB-01H-SOS

OptiFuseIn Stock: 5459PMA-KB-01H-SOS Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the HKP-EL-ZZ is determined by strict equivalence across the following critical parameters:

• Current Rating: 30 A (exact match required)
• Voltage Rating: 250V (exact match required)
• Fuse Size: 0.25" Dia x 1.26" L / 6.35mm x 32mm (exact match required)
• Fuse Type: Cartridge (exact match required)
• Number of Circuits: 1 (exact match required)
• Mounting Type: Panel Mount (exact match required)
• Termination Style: Solder Lug (exact match required)
• Contact Material: Brass (exact match required)
• Contact Finish: Tin (exact match required)

The substitute part PMA-KB-01H-SOS from OptiFuse meets all specified electrical and mechanical parameters, enabling direct functional equivalence in applications currently utilizing the HKP-EL-ZZ.

Parameter Comparison

Engineering Selection Recommendations

The PMA-KB-01H-SOS from OptiFuse is a direct functional equivalent to the obsolete HKP-EL-ZZ. Both components share identical electrical ratings (30 A, 250V), mechanical dimensions (0.25" x 1.26"), and interface specifications (solder lug termination, brass tin-plated contacts). Both parts maintain ROHS3 compliance, satisfying regulatory requirements for new designs and legacy system updates.

The primary distinction is product status: the HKP-EL-ZZ is obsolete, while the PMA-KB-01H-SOS is active with confirmed inventory availability (5425 pieces in stock). For applications requiring the HKP-EL-ZZ specification, the PMA-KB-01H-SOS provides continuity of supply without electrical or mechanical redesign.

Frequently Asked Questions (FAQ)

Q: Can the PMA-KB-01H-SOS replace the HKP-EL-ZZ in existing designs?

A: Yes. The PMA-KB-01H-SOS meets all specified electrical parameters (30 A, 250V), mechanical dimensions (0.25" Dia x 1.26" L), and interface requirements (solder lug termination, brass tin-plated contacts) of the HKP-EL-ZZ. No circuit modifications are required.

Q: What is the difference between the HKP-EL-ZZ and PMA-KB-01H-SOS?

A: Both components are electrically and mechanically equivalent. The HKP-EL-ZZ is classified as obsolete, while the PMA-KB-01H-SOS is an active product with current manufacturing and inventory support.

Q: Are both parts RoHS compliant?

A: Yes. Both the HKP-EL-ZZ and PMA-KB-01H-SOS are ROHS3 compliant.

Q: What fuse types are compatible with these holders?

A: Both holders accommodate 3AG cartridge fuses with dimensions 0.25" diameter by 1.26" length (6.35mm x 32mm).

Q: Can these fuse holders be mounted in both horizontal and vertical orientations?

A: Yes. Both the HKP-EL-ZZ and PMA-KB-01H-SOS support horizontal and vertical mounting configurations.

Q: What is the termination method for these fuse holders?

A: Both components use solder lug termination, enabling direct PCB or chassis integration through soldering.
