HKP-BBHH-R Equivalent & Substitute Parts

Part Overview

The HKP-BBHH-R is a cartridge fuse holder manufactured by Eaton - Electronics Division, designed for panel mount applications with a 15 A current rating at 250V. This component is classified as obsolete product status. Identifying equivalent and substitute parts is necessary to maintain design continuity, ensure supply chain availability, and support ongoing maintenance and production requirements for systems utilizing this fuse holder configuration.

Substiute Parts

HKP-BBHH-R

Eaton - Electronics DivisionIn Stock: 970HKP-BBHH-R Datasheet

Current PartRFQ

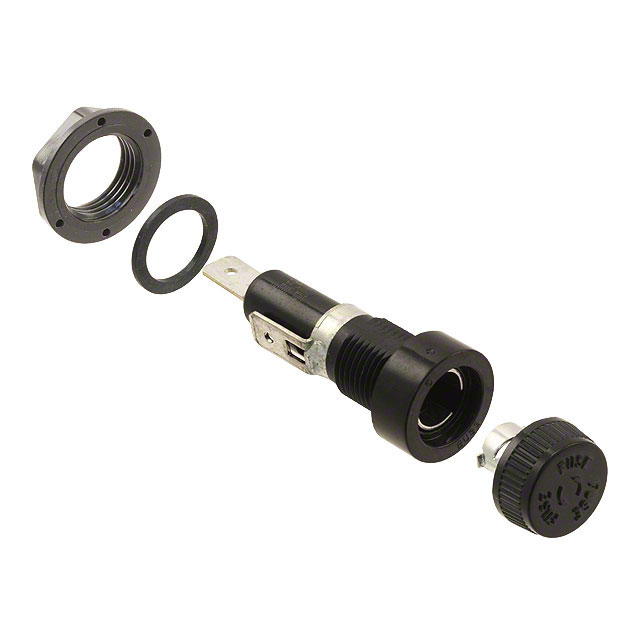

BK/HKP-BBHH-R

Eaton - Electronics DivisionIn Stock: 2461BK/HKP-BBHH-R Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the HKP-BBHH-R is determined by strict equivalence across the following critical parameters:

• Current Rating: 15 A (exact match required)
• Voltage Rating: 250V (exact match required)
• Fuse Size: 0.25" Dia x 1.26" L / 6.35mm x 32mm (exact match required)
• Mounting Configuration: Panel Mount (exact match required)
• Number of Circuits: 1 (exact match required)
• Termination Style: Quick Connect - 0.250" (6.3mm) (exact match required)
• Contact Material and Finish: Brass with Tin finish (exact match required)

The substitute part BK/HKP-BBHH-R maintains identical electrical and mechanical specifications across all parameters listed above. The primary distinction between the main part and its substitute is product status and packaging configuration.

Parameter Comparison

Engineering Selection Recommendations

The BK/HKP-BBHH-R is a direct functional equivalent to the HKP-BBHH-R. Both parts are manufactured by Eaton - Electronics Division and maintain identical electrical ratings, mechanical dimensions, and termination specifications. The substitute part carries active product status, whereas the original part is classified as obsolete.

Selection of BK/HKP-BBHH-R is supported by:

• Identical current and voltage ratings (15 A at 250V)
• Matching fuse size and cartridge configuration (0.25" Dia x 1.26" L)
• Equivalent panel mount and quick connect termination design
• ROHS3 compliance maintained across both parts
• Consistent ECCN and HTSUS classification

The substitute part is available in bulk packaging, which may provide supply chain advantages for production environments. Both parts are suitable for applications requiring 15 A cartridge fuse holders with 250V rated panel mount configurations.

Frequently Asked Questions (FAQ)

Q: Can BK/HKP-BBHH-R be used as a direct replacement for HKP-BBHH-R?

A: Yes. Both parts are manufactured by Eaton - Electronics Division and share identical electrical specifications (15 A, 250V), mechanical dimensions (0.25" Dia x 1.26" L), mounting configuration (panel mount), and termination style (quick connect 0.250"). All critical parameters for functional equivalence are matched.

Q: What is the difference between HKP-BBHH-R and BK/HKP-BBHH-R?

A: The primary differences are product status and packaging. HKP-BBHH-R is classified as obsolete, while BK/HKP-BBHH-R is active. BK/HKP-BBHH-R is supplied in bulk packaging. All electrical and mechanical specifications are identical.

Q: Are both parts RoHS compliant?

A: Yes. Both HKP-BBHH-R and BK/HKP-BBHH-R are ROHS3 compliant.

Q: What fuse types are compatible with these holders?

A: Both holders are designed for 3AG cartridge fuses with dimensions 1/4" x 1-1/4" (SFE-20).

Q: What is the termination configuration?

A: Both parts feature quick connect termination with 0.250" (6.3mm) contact pins, suitable for standard panel mount receptacles.

Q: Are there any compliance or certification differences?

A: Both parts share identical ECCN (EAR99) and HTSUS (8538.90.8180) classifications. Compliance profiles are equivalent.
