HIRK-433AP RF Receiver 433.92MHz Equivalent & Substitute Parts

Part Overview

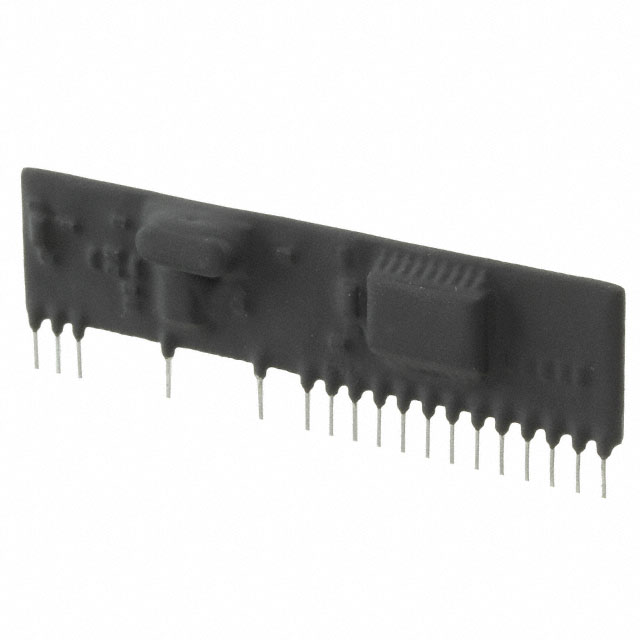

The HIRK-433AP is an RF receiver module operating at 433.92MHz with AM modulation, designed for general-purpose wireless applications. This component features a sensitivity of -103dBm, operates on a 4.5V to 5.5V supply, and is packaged in a 25-SIP through-hole module configuration. The HIRK-433AP is classified as obsolete, making identification of functionally equivalent substitute parts essential for ongoing system support and new design implementations.

Key Parameters

Parameter	Value
Manufacturer Part Number	HIRK-433AP
Manufacturer	RF Solutions
Frequency	433.92MHz
Sensitivity	-103dBm
Modulation	AM
Voltage Supply Range	4.5V ~ 5.5V
Current - Receiving	6.8mA
Operating Temperature	-25°C ~ 85°C
Mounting Type	Through Hole
Package / Case	25-SIP Module, 19 Leads
Product Status	Obsolete
RoHS Status	RoHS Compliant

Substitute Part Grouping Explanation

Substitution of the HIRK-433AP is determined by the following critical parameters:

Frequency Compatibility: Both substitute parts operate at 433MHz, which aligns with the 433.92MHz operating frequency of the main part within the ISM band allocation.

Modulation Protocol: The HIRK-433AP uses AM modulation. The substitute parts (ZPT-4RD and ZPT-4RS) do not specify modulation protocol in the provided data; however, they are listed as manufacturer-recommended equivalents.

Sensitivity Performance: The HIRK-433AP provides -103dBm sensitivity. The substitute parts deliver -121dBm sensitivity, representing improved receiver performance.

Supply Voltage: The HIRK-433AP requires 4.5V to 5.5V operation. The substitute parts operate at 1.8V to 3.6V, requiring voltage regulation or power supply redesign for direct substitution.

Mounting Configuration: The HIRK-433AP uses through-hole mounting in a 25-SIP package. Substitute parts are available in both through-hole (ZPT-4RD, 12-DIP) and surface-mount (ZPT-4RS, 12-SMD) configurations.

Product Status: The HIRK-433AP is obsolete. Both substitute parts (ZPT-4RD and ZPT-4RS) maintain active product status.

Compliance: The HIRK-433AP is RoHS Compliant. Both substitute parts are ROHS3 Compliant and REACH Unaffected.

Parameter Comparison

Parameter	HIRK-433AP	ZPT-4RD	ZPT-4RS
Manufacturer	RF Solutions	RF Solutions	RF Solutions
Frequency	433.92MHz	433MHz	433MHz
Sensitivity	-103dBm	-121dBm	-121dBm
Voltage Supply Range	4.5V ~ 5.5V	1.8V ~ 3.6V	1.8V ~ 3.6V
Operating Temperature	-25°C ~ 85°C	-20°C ~ 85°C	-20°C ~ 85°C
Mounting Type	Through Hole	Through Hole	Surface Mount
Package / Case	25-SIP Module, 19 Leads	12-DIP Module	12-SMD Module
Product Status	Obsolete	Active	Active
RoHS Status	RoHS Compliant	ROHS3 Compliant	ROHS3 Compliant
Moisture Sensitivity Level	1 (Unlimited)	Not Applicable	Not Applicable

Engineering Selection Recommendations

For Through-Hole PCB Designs: The ZPT-4RD is the direct through-hole mounting equivalent. This part maintains the through-hole configuration of the HIRK-433AP while providing improved sensitivity (-121dBm versus -103dBm). Circuit redesign is required to accommodate the reduced supply voltage range (1.8V to 3.6V versus 4.5V to 5.5V). The ZPT-4RD operates within a narrower temperature range (-20°C to 85°C versus -25°C to 85°C).

For Surface-Mount PCB Designs: The ZPT-4RS provides surface-mount implementation with identical electrical specifications to the ZPT-4RD. This option is suitable for new designs or PCB redesigns incorporating surface-mount technology. The same voltage and temperature considerations apply.

Compliance Considerations: Both substitute parts meet ROHS3 compliance and are REACH Unaffected, exceeding the RoHS compliance of the obsolete HIRK-433AP. This supports regulatory requirements for new product certifications.

Inventory Status: ZPT-4RD maintains 790 pieces in stock; ZPT-4RS maintains 768 pieces in stock, providing supply continuity for the obsolete HIRK-433AP.

Frequently Asked Questions (FAQ)

Q: Can the ZPT-4RD or ZPT-4RS directly replace the HIRK-433AP without circuit modifications?

A: Direct pin-for-pin replacement is not possible. The substitute parts operate at 1.8V to 3.6V supply voltage, while the HIRK-433AP requires 4.5V to 5.5V. Power supply redesign is mandatory. Additionally, the package configurations differ (25-SIP versus 12-DIP or 12-SMD), requiring PCB layout modifications.

Q: What is the frequency compatibility between 433.92MHz and 433MHz?

A: Both frequencies operate within the 433MHz ISM band. The 433.92MHz specification of the HIRK-433AP and the 433MHz specification of the substitute parts are compatible for general-purpose wireless applications within this band allocation.

Q: How does the improved sensitivity of the substitute parts (-121dBm versus -103dBm) affect system performance?

A: Improved sensitivity indicates the receiver can detect weaker signals. This enhancement does not create incompatibility; it represents superior receiver performance. System design should account for this improvement in link budget calculations.

Q: Which substitute part should be selected for new PCB designs?

A: For new designs, the ZPT-4RS (surface-mount) is recommended as it aligns with modern manufacturing practices. For legacy through-hole designs requiring substitution, the ZPT-4RD is appropriate.

Q: Are there temperature range differences that affect substitution?

A: The HIRK-433AP operates from -25°C to 85°C. Both substitute parts operate from -20°C to 85°C. Applications requiring operation below -20°C cannot use the substitute parts without additional thermal management or design modification.

Q: What is the impact of the reduced package size (12-DIP/12-SMD versus 25-SIP)?

A: The substitute parts use smaller packages, reducing PCB footprint and component count. This requires PCB redesign but provides space and cost benefits in new implementations.
