HIF3BA-34P-2.54W Equivalent & Substitute Parts

Part Overview

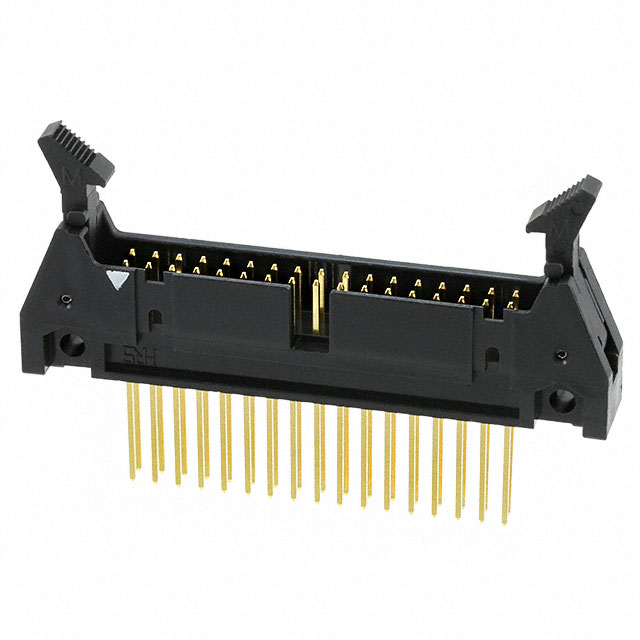

The HIF3BA-34P-2.54W is a rectangular connector header manufactured by Hirose Electric Co Ltd, designed for through-hole mounting applications. This connector features 34 positions arranged in 2 rows with 0.100" (2.54mm) pitch spacing, wire wrap termination, and shrouded 4-wall construction with latch lock/eject hooks. The main part is currently listed as obsolete, making identification of active equivalent parts essential for ongoing production and maintenance applications.

Substiute Parts

HIF3BA-34P-2.54W

Hirose Electric Co LtdIn Stock: 854HIF3BA-34P-2.54W Datasheet

Current PartRFQ

HIF3BA-34P-2.54W(63)

Hirose Electric Co LtdIn Stock: 920HIF3BA-34P-2.54W(63) Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The HIF3BA-34P-2.54W(63) qualifies as a direct substitute based on the following critical parameters:

• Identical connector type, contact type, and position count (34 positions, 2 rows)
• Matching pitch specifications (0.100" mating pitch and row spacing)
• Identical mounting type (through hole) and shrouding configuration (shrouded 4-wall)
• Matching termination method (wire wrap) and fastening type (latch lock/eject hooks)
• Identical insulation material (PBT) and contact material (brass)
• Matching operating temperature range (-55°C ~ 85°C) and voltage rating (200V)
• Equivalent flammability rating (UL94 V-0) and moisture sensitivity level (MSL 1)

The primary distinction is product status: the main part is obsolete while the substitute is active, with improved compliance status (ROHS3 vs RoHS Compliant).

Parameter Comparison

Engineering Selection Recommendations

The HIF3BA-34P-2.54W(63) is the direct active equivalent for the obsolete HIF3BA-34P-2.54W. Selection of the substitute part is based on:

• Active product status ensuring ongoing manufacturer support and availability
• Identical electrical and mechanical specifications across all critical parameters
• Enhanced compliance status (ROHS3 Compliant) meeting current regulatory requirements
• Equivalent performance characteristics within the specified operating temperature and voltage ranges
• Tray packaging format suitable for automated assembly and production environments

Frequently Asked Questions (FAQ)

Q: Can HIF3BA-34P-2.54W(63) be used as a direct replacement for HIF3BA-34P-2.54W?

A: Yes. Both connectors share identical specifications for position count, pitch, mounting type, shrouding, termination method, and electrical ratings. The substitute part is the active equivalent.

Q: What is the primary reason to transition from HIF3BA-34P-2.54W to HIF3BA-34P-2.54W(63)?

A: The original part is obsolete. The substitute maintains full functional and mechanical compatibility while offering active product status and improved compliance certification.

Q: Are there differences in packaging between these parts?

A: The main part packaging is not specified. The substitute is supplied in tray packaging, which is standard for production environments and automated assembly processes.

Q: Do both parts meet the same regulatory and compliance standards?

A: Both parts meet UL94 V-0 flammability requirements and MSL 1 moisture sensitivity levels. The substitute carries ROHS3 Compliant status compared to RoHS Compliant for the original part, reflecting current regulatory alignment.

Q: Is the wire wrap termination identical between both parts?

A: Yes. Both connectors use wire wrap termination with latch lock/eject hooks fastening, ensuring identical assembly and integration procedures.

Q: What is the operating temperature range for both connectors?

A: Both parts operate across -55°C to 85°C, supporting equivalent thermal performance in industrial and commercial applications.
