HIF3BA-16D-2.54C Equivalent & Substitute Parts

Part Overview

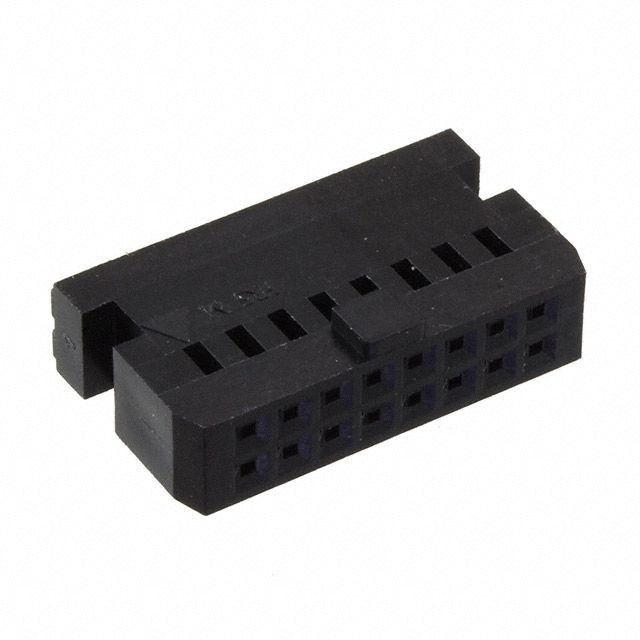

The HIF3BA-16D-2.54C is a 16-position rectangular connector housing manufactured by Hirose Electric Co Ltd. This receptacle-type connector features a 0.100" (2.54mm) pitch configuration with 2 rows and is designed for free-hanging, in-line mounting applications with crimp-type contact termination. The part is classified as obsolete, making identification of equivalent and substitute parts essential for ongoing system support and procurement planning. Substitute parts maintain functional compatibility through matching electrical and mechanical parameters while offering active product status and improved availability.

Key Parameters

Parameter	Value
Connector Type	Receptacle
Contact Type	Female Socket
Number of Positions	16
Pitch	0.100" (2.54mm)
Number of Rows	2
Row Spacing	0.100" (2.54mm)
Mounting Type	Free Hanging (In-Line)
Contact Termination	Crimp
Color	Black
Features	Polarizing Key
Insulation Material	Polybutylene Terephthalate (PBT)
Operating Temperature Range	-55°C ~ 85°C
RoHS Status	RoHS Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)

Substitute Part Grouping Explanation

Substitute parts for the HIF3BA-16D-2.54C are qualified based on strict electrical and mechanical parameter matching. The following parameters determine substitution eligibility:

Connector Type: Receptacle
Contact Type: Female Socket
Number of Positions: 16
Pitch: 0.100" (2.54mm)
Number of Rows: 2
Row Spacing: 0.100" (2.54mm)
Mounting Type: Free Hanging (In-Line)
Contact Termination: Crimp
Color: Black
Features: Polarizing Key
Moisture Sensitivity Level: 1 (Unlimited)

Two substitute parts meet these criteria: HIF3BA-16D-2.54C(63) from Hirose Electric Co Ltd and 65846-011LF from Amphenol ICC (FCI). Both maintain identical electrical and mechanical specifications while offering active product status and improved inventory availability.

Parameter Comparison

Parameter	HIF3BA-16D-2.54C (Main Part)	HIF3BA-16D-2.54C(63) (Direct Substitute)	65846-011LF (Parametric Equivalent)
Manufacturer	Hirose Electric Co Ltd	Hirose Electric Co Ltd	Amphenol ICC (FCI)
Connector Type	Receptacle	Socket	Receptacle
Contact Type	Female Socket	Female Socket	Female Socket
Number of Positions	16	16	16
Pitch	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Rows	2	2	2
Row Spacing	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)	Free Hanging (In-Line)
Contact Termination	Crimp	Crimp	Crimp
Color	Black	Black	Black
Features	Polarizing Key	Polarizing Key	Polarizing Key
Insulation Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)	Polyphenylene, Modified
Operating Temperature Range	-55°C ~ 85°C	-55°C ~ 85°C	-40°C ~ 105°C
RoHS Status	RoHS Compliant	ROHS3 Compliant	RoHS Compliant
Moisture Sensitivity Level (MSL)	1 (Unlimited)	1 (Unlimited)	1 (Unlimited)
Product Status	Obsolete	Active	Active
Inventory Availability	677 Pcs	733 Pcs	1006 Pcs

Engineering Selection Recommendations

HIF3BA-16D-2.54C(63) is the direct manufacturer substitute from Hirose Electric Co Ltd. This part maintains identical electrical and mechanical specifications with the main part while offering active product status and higher inventory availability (733 Pcs). The ROHS3 compliance designation represents an updated regulatory certification compared to the main part's RoHS Compliant status.

65846-011LF from Amphenol ICC (FCI) is a parametric equivalent that meets all critical electrical and mechanical requirements. This part offers the highest inventory availability (1006 Pcs) and an extended operating temperature range (-40°C ~ 105°C). The insulation material differs (Polyphenylene, Modified versus Polybutylene Terephthalate), and REACH Affected status indicates regulatory considerations for specific applications. This part is suitable for applications where the extended temperature range and alternative material composition are compatible with system requirements.

Frequently Asked Questions (FAQ)

Q: What makes HIF3BA-16D-2.54C(63) a direct substitute for HIF3BA-16D-2.54C?

A: HIF3BA-16D-2.54C(63) maintains identical electrical and mechanical parameters: 16 positions, 0.100" (2.54mm) pitch, 2-row configuration, female socket contacts, crimp termination, polarizing key, and identical operating temperature range. Both parts are manufactured by Hirose Electric Co Ltd and share the same base product number (HIF3B). The primary difference is product status: the substitute is active while the main part is obsolete.

Q: Can 65846-011LF be used as a direct replacement for HIF3BA-16D-2.54C?

A: 65846-011LF meets all critical electrical and mechanical substitution parameters. However, it differs in insulation material (Polyphenylene, Modified versus Polybutylene Terephthalate) and operating temperature range (-40°C ~ 105°C versus -55°C ~ 85°C). Applications requiring operation below -40°C or with specific material compatibility requirements should use HIF3BA-16D-2.54C(63) instead.

Q: What is the difference between "Receptacle" and "Socket" connector types listed in the parameter comparison?

A: Both terms describe the housing type that accepts mating connectors. The terminology difference reflects manufacturer nomenclature conventions between Hirose Electric Co Ltd and Amphenol ICC (FCI). Functionally, both HIF3BA-16D-2.54C(63) (Socket) and 65846-011LF (Receptacle) perform identical roles in connector applications.

Q: Are there packaging differences between the substitute parts?

A: HIF3BA-16D-2.54C is supplied in unspecified packaging, while HIF3BA-16D-2.54C(63) and 65846-011LF are supplied in Bag packaging. This difference does not affect electrical or mechanical compatibility.

Q: What does MSL 1 (Unlimited) mean for these connectors?

A: Moisture Sensitivity Level 1 (Unlimited) indicates the component has no moisture sensitivity restrictions. These parts do not require special moisture-controlled storage or handling procedures and can be stored under standard industrial conditions indefinitely.
