HDSP-8601 Equivalent & Substitute Parts

Part Overview

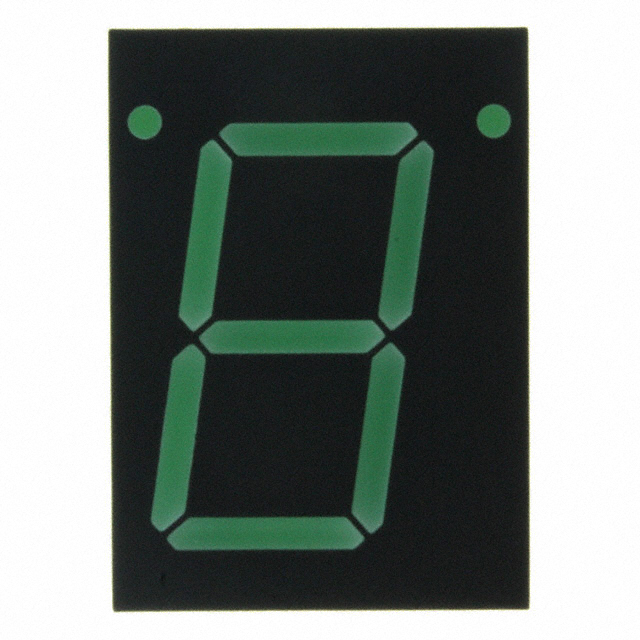

The HDSP-8601 is a single-character 7-segment LED display module manufactured by Broadcom Limited. This green display operates with common anode configuration and is housed in an 18-DIP package. The component is currently in active production status and maintains full RoHS3 compliance. Substitute parts are identified when equivalent functional performance can be achieved within the allowed electrical and mechanical parameter ranges for this display category.

Substiute Parts

HDSP-8601

Broadcom LimitedIn Stock: 1303HDSP-8601 Datasheet

Current PartRFQ

SA08-11GWA

KingbrightIn Stock: 1069SA08-11GWA Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the HDSP-8601 is determined by the following criteria:

Display configuration must match: single character, 7-segment, green color, common anode topology, and 0.80" digit size. Package type must be 18-DIP (0.600", 15.24mm) to ensure mechanical and electrical compatibility with existing PCB layouts and connector interfaces.

Electrical parameters within acceptable ranges include forward voltage (Vf) tolerance of ±0.2V from the nominal specification, test current up to 20mA, and peak wavelength within the green spectrum (560–570nm). Compliance certifications including RoHS3 and MSL rating of 1 are required.

The SA08-11GWA from Kingbright meets these substitution criteria across all specified parameters.

Parameter Comparison

Engineering Selection Recommendations

Both the HDSP-8601 and SA08-11GWA maintain active product status and full RoHS3 compliance with MSL rating of 1. The SA08-11GWA is suitable as a direct substitute where the application can accommodate the electrical parameter variations: forward voltage increase of 0.1V (2.1V to 2.2V) and test current increase of 10mA (10mA to 20mA). The SA08-11GWA provides higher luminous intensity (13mcd versus 1.5mcd) and lower maximum power dissipation (62.5mW versus 105mW), making it advantageous for brightness-critical or power-constrained applications. Both components share identical mechanical dimensions and package configuration, ensuring direct PCB compatibility.

Frequently Asked Questions (FAQ)

Q: Can the SA08-11GWA replace the HDSP-8601 in existing designs?

A: Yes. Both components share identical 18-DIP package dimensions, digit size (0.80"), display type (7-segment), color (green), and common anode configuration. Electrical parameter differences (Vf: 2.1V to 2.2V; test current: 10mA to 20mA) fall within acceptable substitution ranges for this display category.

Q: What are the key electrical differences between these parts?

A: The SA08-11GWA operates at 2.2V forward voltage compared to 2.1V for the HDSP-8601, and specifies 20mA test current versus 10mA. Peak wavelength differs by 1nm (565nm versus 566nm), remaining within the green spectrum. The SA08-11GWA delivers significantly higher brightness (13mcd versus 1.5mcd).

Q: Are both parts RoHS3 compliant?

A: Yes. Both the HDSP-8601 and SA08-11GWA carry ROHS3 Compliant certification and MSL rating of 1 (Unlimited moisture sensitivity level).

Q: Does package type affect substitution compatibility?

A: No. Both components use identical 18-DIP (0.600", 15.24mm) packaging with 12 leads, ensuring mechanical and electrical interface compatibility on PCBs designed for either part.

Q: Which part should be selected for new designs?

A: Selection depends on application requirements. The SA08-11GWA offers higher brightness output and lower power dissipation, making it suitable for visibility-critical or power-optimized applications. The HDSP-8601 remains available for designs requiring the original specification parameters.
