HDMI-S-RA-TSMT Equivalent & Substitute Parts

Part Overview

The HDMI-S-RA-TSMT is a 19-position HDMI receptacle connector manufactured by Adam Tech, designed for surface mount, right-angle applications with horizontal mounting orientation. This connector features a shielded design with gold-plated contacts and is rated for 0.5A current at operating temperatures between -55°C and 85°C.

The HDMI-S-RA-TSMT is classified as obsolete. Identifying equivalent and substitute parts is necessary to maintain design continuity, ensure supply chain availability, and support ongoing production or repair requirements for systems utilizing this connector.

Substiute Parts

HDMI-S-RA-TSMT

Adam TechIn Stock: 888HDMI-S-RA-TSMT Datasheet

Current PartRFQ

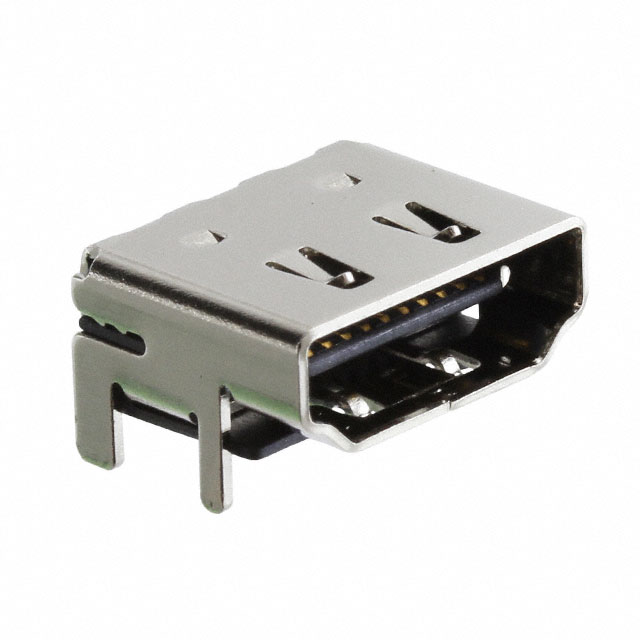

HDMR-19-01-S-SM

Samtec Inc.In Stock: 1772HDMR-19-01-S-SM Datasheet

Parametric EquivalentRFQ

HDMR-19-02-F-SM

Samtec Inc.In Stock: 1470HDMR-19-02-F-SM Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the HDMI-S-RA-TSMT are identified based on strict equivalence across the following critical parameters:

• Connector Type: HDMI
• Number of Contacts: 19
• Gender: Receptacle
• Mounting Type: Surface Mount, Right Angle
• Mounting Feature: Horizontal
• Termination: Solder
• Shielding: Shielded
• Contact Finish: Gold

The substitute parts HDMR-19-01-S-SM and HDMR-19-02-F-SM, both manufactured by Samtec Inc., meet all these core electrical and mechanical requirements. Both substitutes are classified as active products, providing improved supply chain availability compared to the obsolete main part. The primary distinction between the two substitutes is the flanged design of the HDMR-19-02-F-SM variant, which offers enhanced mechanical stability in certain mounting configurations.

Parameter Comparison

Engineering Selection Recommendations

Both HDMR-19-01-S-SM and HDMR-19-02-F-SM are suitable substitutes for the HDMI-S-RA-TSMT based on compliance and product status criteria.

The Samtec substitutes offer active product status, ensuring long-term supply chain support and availability. Both parts maintain ROHS3 compliance and REACH unaffected status, consistent with the original part's regulatory requirements.

The HDMR-19-01-S-SM provides a direct functional equivalent with standard surface mount and through-hole termination options. The HDMR-19-02-F-SM offers an identical electrical and mechanical specification with an additional flanged design feature, which may provide enhanced mechanical retention in applications requiring increased mounting stability.

Both substitutes demonstrate improved electrical performance characteristics compared to the main part, including higher current rating (1.3A per contact versus 0.5A) and specified voltage rating (40VAC), while maintaining compatibility with the core HDMI 19-position receptacle interface.

Frequently Asked Questions (FAQ)

Q: Can HDMR-19-01-S-SM and HDMR-19-02-F-SM be used interchangeably with HDMI-S-RA-TSMT?

A: Both Samtec parts meet the core electrical and mechanical requirements for substitution. The primary difference is the flanged design of the HDMR-19-02-F-SM. Selection between the two depends on specific mounting requirements and available PCB footprint space.

Q: What is the difference between HDMR-19-01-S-SM and HDMR-19-02-F-SM?

A: Both parts are functionally equivalent 19-position HDMI receptacle connectors with surface mount, right-angle, horizontal mounting. The HDMR-19-02-F-SM includes a flanged design that provides additional mechanical support and stability during mating cycles.

Q: Are the substitute parts compatible with existing PCB designs for HDMI-S-RA-TSMT?

A: The substitute parts share the same core connector interface and mounting orientation. PCB footprint compatibility depends on the specific mounting feature requirements. The flanged variant (HDMR-19-02-F-SM) may require additional PCB space compared to the standard variant (HDMR-19-01-S-SM).

Q: Do the substitute parts maintain the same regulatory compliance?

A: Yes. Both HDMR-19-01-S-SM and HDMR-19-02-F-SM are ROHS3 compliant and REACH unaffected, consistent with the original HDMI-S-RA-TSMT specifications.

Q: What is the operating temperature range for the substitute parts?

A: Both Samtec substitutes operate across -25°C to 85°C. The original HDMI-S-RA-TSMT operates across -55°C to 85°C. Applications requiring operation below -25°C require design review.
