HDAB-15P(57) Equivalent & Substitute Parts

Part Overview

The HDAB-15P(57) is a D-Sub plug panel mount connector manufactured by Hirose Electric Co Ltd. This component is classified as obsolete, which necessitates identification of active equivalent parts for ongoing procurement and system maintenance. The HDAB-15P(57) serves as a position connector within the HD series connector family. Due to its obsolete status, sourcing alternatives from the active product line is essential for new designs and replacement applications.

Substiute Parts

HDAB-15P(57)

Hirose Electric Co LtdIn Stock: 874HDAB-15P(57) Datasheet

Current PartRFQ

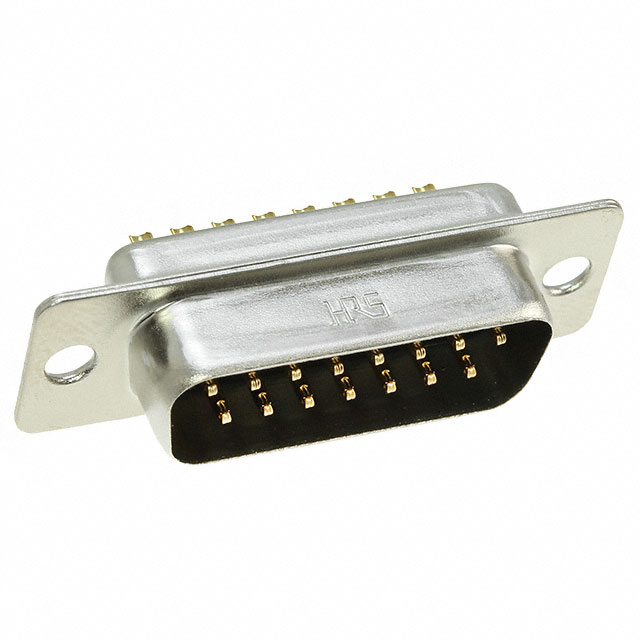

HDAB-15P(05)

Hirose Electric Co LtdIn Stock: 1157HDAB-15P(05) Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

The HDAB-15P(05) is identified as the manufacturer-recommended substitute for the HDAB-15P(57). Substitution eligibility is determined by the following criteria:

• Shared manufacturer: Hirose Electric Co Ltd
• Identical base product number: HDAB
• Same connector category: D-Sub, D-Shaped Connectors
• Compatibility within the HD series connector family
• Active product status of the substitute part

The HDAB-15P(05) represents the current active equivalent within the HDAB connector line, providing direct functional replacement capability for the obsolete HDAB-15P(57).

Parameter Comparison

Engineering Selection Recommendations

The HDAB-15P(05) is the manufacturer-recommended substitute for the obsolete HDAB-15P(57). Selection of the HDAB-15P(05) is supported by the following factors:

• Active product status ensures long-term availability and supply chain continuity
• ROHS3 compliance exceeds the RoHS compliance of the original part
• REACH Unaffected status confirms regulatory compliance for European markets
• Identical MSL rating (1 - Unlimited) maintains equivalent moisture handling characteristics
• Both parts share the HDAB base product number and HD series designation, confirming design compatibility within the connector family
• Higher current inventory of the substitute part (1109 Pcs) supports immediate procurement requirements

Frequently Asked Questions (FAQ)

Q: Why is the HDAB-15P(57) being discontinued? A: The HDAB-15P(57) has reached obsolete status within Hirose Electric's product portfolio. The HDAB-15P(05) represents the active equivalent within the current HD series connector line.

Q: Are the HDAB-15P(57) and HDAB-15P(05) mechanically compatible? A: Both parts share the HDAB base product number and belong to the HD series D-Sub connector family. The HDAB-15P(05) is designated as the manufacturer-recommended substitute, indicating functional and mechanical compatibility.

Q: What are the key electrical specifications of the HDAB-15P(05)? A: The HDAB-15P(05) is rated for 3A current at 400V voltage. It features gold-plated copper alloy contacts with a polybutylene terephthalate (PBT) glass-filled dielectric material. Operating temperature range is -40°C to 85°C.

Q: What is the difference in packaging between these parts? A: The HDAB-15P(05) is supplied in tray packaging. Packaging specifications for the HDAB-15P(57) were not provided in the available documentation.

Q: Are both parts RoHS compliant? A: Yes. The HDAB-15P(57) is RoHS Compliant. The HDAB-15P(05) meets the more stringent ROHS3 Compliant standard, providing enhanced regulatory alignment.

Q: What is the moisture sensitivity level for these connectors? A: Both the HDAB-15P(57) and HDAB-15P(05) carry an MSL rating of 1 (Unlimited), indicating no moisture sensitivity restrictions for storage or handling.
