HAS 600-P Hall Effect Current Sensor 600A AC/DC Equivalent & Substitute Parts

Part Overview

The HAS 600-P is a Hall Effect open loop bidirectional current sensor manufactured by LEM USA Inc., designed for AC/DC current measurement applications up to 600A. This component operates with ratiometric voltage output and provides bidirectional sensing capability with ±1% linearity and accuracy specifications.

The HAS 600-P carries a "Not For New Designs" product status designation. This status necessitates identification of equivalent substitute parts for ongoing production requirements and new design implementations. Active product alternatives within the HAS series maintain identical electrical and mechanical characteristics while offering current availability and long-term design support.

Key Parameters

Parameter	Value
Manufacturer	LEM USA Inc.
Series	HAS
Sensor Type	Hall Effect, Open Loop
Current Sensing Range	600A
Number of Channels	1
Output Type	Ratiometric, Voltage
Frequency Response	DC ~ 50kHz
Linearity	±1%
Accuracy	±1%
Supply Voltage	±15V
Response Time	3µs
Current Supply (Max)	15mA
Operating Temperature	-10°C ~ 80°C
Polarization	Bidirectional
Mounting Type	Through Hole
Package Type	Module
Packaging Format	Tray
RoHS Status	RoHS Compliant
Moisture Sensitivity Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS Code	9030.33.3800

Substitute Part Grouping Explanation

Substitution eligibility for the HAS 600-P is determined by strict equivalence across core electrical and mechanical parameters. All substitute parts must maintain identical specifications in the following critical areas:

Mandatory Equivalence Parameters:

Sensor Type: Hall Effect, Open Loop
Output Type: Ratiometric, Voltage
Frequency Response: DC ~ 50kHz
Linearity: ±1%
Accuracy: ±1%
Supply Voltage: ±15V
Response Time: 3µs
Current Supply (Max): 15mA
Operating Temperature: -10°C ~ 80°C
Polarization: Bidirectional
Mounting Type: Through Hole
Package Type: Module
RoHS Status: RoHS Compliant
REACH Status: REACH Unaffected
ECCN: EAR99
HTSUS Code: 9030.33.3800

Variable Parameter (Application-Dependent):

Current Sensing Range: Varies by model (50A to 600A)

The HAS series current sensors are functionally interchangeable when the application current requirement does not exceed the substitute part's rated sensing capacity. Selection of substitute parts depends on the actual current measurement range required by the end application. Lower-rated sensors (HAS 50-P/S, HAS 100-P/S, HAS 200-P/S, HAS 300-P/S, HAS 400-P/S) are suitable for applications requiring measurement of currents within their respective ranges.

Parameter Comparison

Part Number	Current Sensing (A)	Product Status	Inventory (Pcs)	Sensor Type	Output	Frequency	Linearity	Accuracy	Supply Voltage	Response Time	Operating Temp	Polarization	Mounting	RoHS
HAS 600-P	600	Not For New Designs	1074	Hall Effect, Open Loop	Ratiometric, Voltage	DC ~ 50kHz	±1%	±1%	±15V	3µs	-10°C ~ 80°C	Bidirectional	Through Hole	Compliant
HAS 50-P	50	Not For New Designs	893	Hall Effect, Open Loop	Ratiometric, Voltage	DC ~ 50kHz	±1%	±1%	±15V	3µs	-10°C ~ 80°C	Bidirectional	Through Hole	Compliant
HAS 50-S	50	Active	1422	Hall Effect, Open Loop	Ratiometric, Voltage	DC ~ 50kHz	±1%	±1%	±15V	3µs	-10°C ~ 80°C	Bidirectional	Through Hole	Compliant
HAS 100-P	100	Active	1185	Hall Effect, Open Loop	Ratiometric, Voltage	DC ~ 50kHz	±1%	±1%	±15V	3µs	-10°C ~ 80°C	Bidirectional	Through Hole	Compliant
HAS 100-S	100	Active	10100	Hall Effect, Open Loop	Ratiometric, Voltage	DC ~ 50kHz	±1%	±1%	±15V	3µs	-10°C ~ 80°C	Bidirectional	Through Hole	Compliant
HAS 200-P	200	Active	863	Hall Effect, Open Loop	Ratiometric, Voltage	DC ~ 50kHz	±1%	±1%	±15V	3µs	-10°C ~ 80°C	Bidirectional	Through Hole	Compliant
HAS 200-S	200	Active	1354	Hall Effect, Open Loop	Ratiometric, Voltage	DC ~ 50kHz	±1%	±1%	±15V	3µs	-10°C ~ 80°C	Bidirectional	Through Hole	Compliant
HAS 300-P	300	Active	685	Hall Effect, Open Loop	Ratiometric, Voltage	DC ~ 50kHz	±1%	±1%	±15V	3µs	-10°C ~ 80°C	Bidirectional	Through Hole	Compliant
HAS 300-S	300	Active	10200	Hall Effect, Open Loop	Ratiometric, Voltage	DC ~ 50kHz	±1%	±1%	±15V	3µs	-10°C ~ 80°C	Bidirectional	Through Hole	Compliant
HAS 400-P	400	Not For New Designs	746	Hall Effect, Open Loop	Ratiometric, Voltage	DC ~ 50kHz	±1%	±1%	±15V	3µs	-10°C ~ 80°C	Bidirectional	Through Hole	Compliant
HAS 400-S	400	Active	12300	Hall Effect, Open Loop	Ratiometric, Voltage	DC ~ 50kHz	±1%	±1%	±15V	3µs	-10°C ~ 80°C	Bidirectional	Through Hole	Compliant

Engineering Selection Recommendations

Product Status Considerations:

The HAS 600-P designation as "Not For New Designs" indicates this part is in end-of-life status. For applications currently using HAS 600-P components, direct continuation with existing inventory is supported. For new design implementations or long-term production requirements, selection of Active status alternatives is required.

Active Status Substitute Parts:

No direct 600A equivalent exists with Active product status within the provided HAS series data. Applications requiring 600A measurement capability must evaluate the following options:

HAS 400-S (Active status, 400A capacity) - Suitable for applications where maximum current measurement does not exceed 400A
HAS 300-S (Active status, 300A capacity) - Suitable for applications where maximum current measurement does not exceed 300A
HAS 200-S (Active status, 200A capacity) - Suitable for applications where maximum current measurement does not exceed 200A
HAS 100-S (Active status, 100A capacity) - Suitable for applications where maximum current measurement does not exceed 100A
HAS 50-S (Active status, 50A capacity) - Suitable for applications where maximum current measurement does not exceed 50A

Compliance and Certification:

All substitute parts maintain identical RoHS Compliance, REACH Unaffected, and EAR99 ECCN designations. Moisture Sensitivity Level differs between -P series (MSL 1 - Unlimited) and -S series (MSL Not Applicable). This distinction does not affect functional equivalence but may impact storage and handling requirements based on application environment specifications.

Packaging and Inventory:

All parts are supplied in Tray packaging format. The -S series variants demonstrate higher inventory availability, supporting production continuity and reduced lead times for new design implementations.

Frequently Asked Questions (FAQ)

Q: Can HAS 600-P be directly replaced with HAS 400-S in existing applications?

A: Direct replacement is possible only if the application's maximum current measurement requirement does not exceed 400A. The HAS 400-S maintains identical electrical characteristics (output type, frequency response, linearity, accuracy, supply voltage, response time, operating temperature, and polarization) as the HAS 600-P. If the application requires measurement of currents exceeding 400A, HAS 400-S is not suitable.

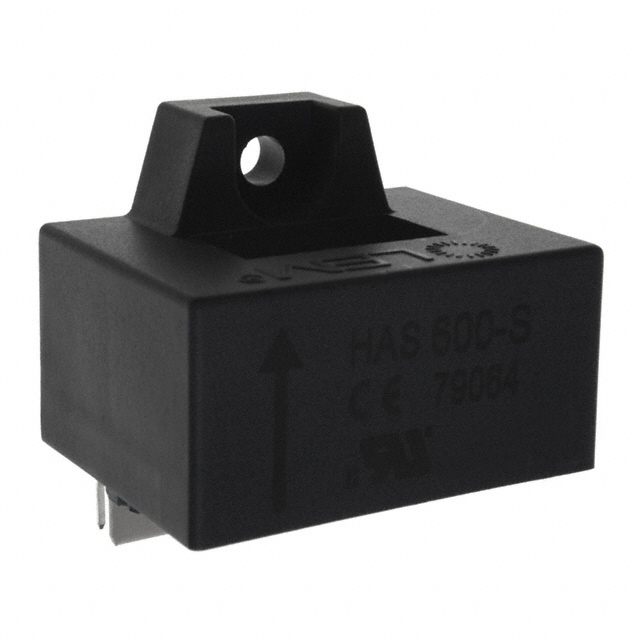

Q: What is the difference between HAS 600-P and HAS 600-S?

A: No HAS 600-S variant is provided in the available product data. The HAS 600-P remains the only 600A-rated option in the HAS series. For Active status alternatives, lower current-rated models (HAS 50-S through HAS 400-S) are available.

Q: Are the -P and -S series variants electrically interchangeable?

A: Yes, within the same current rating. For example, HAS 100-P and HAS 100-S are electrically interchangeable. Both maintain identical sensor type, output characteristics, frequency response, accuracy, linearity, supply voltage, response time, operating temperature range, and polarization. The primary difference is product status (Active vs. Not For New Designs) and Moisture Sensitivity Level designation.

Q: What does "Not For New Designs" status mean?

A: "Not For New Designs" indicates the part is in end-of-life phase. Existing inventory may be available for current production support, but the manufacturer does not recommend this part for new design implementations. Active status parts should be selected for new designs to ensure long-term availability and manufacturer support.

Q: Can I use a lower-rated sensor (e.g., HAS 200-S) in place of HAS 600-P?

A: A lower-rated sensor can be used only if the application's actual current measurement requirement falls within the lower sensor's range. For example, if an application measures currents up to 200A, HAS 200-S is suitable. If the application requires measurement of currents exceeding 200A, HAS 200-S will not provide accurate readings and is not appropriate.

Q: Are all HAS series sensors compatible with the same PCB footprint?

A: All HAS series sensors share identical Through Hole mounting type and Module package configuration. PCB footprint compatibility depends on specific pin layout and spacing, which is not detailed in the provided parameter data. Mechanical drawings and pin configuration documentation must be consulted to confirm footprint compatibility for specific substitutions.

Q: What is the significance of Moisture Sensitivity Level (MSL) differences?

A: MSL 1 (Unlimited) indicates the component has no moisture sensitivity restrictions and can be stored indefinitely without special desiccant packaging. MSL Not Applicable indicates the component does not require moisture sensitivity classification. This distinction affects storage, handling, and shelf-life management but does not impact functional performance or electrical equivalence.

Q: Which HAS series part should I select for a new design?

A: Select the Active status part with the current sensing range that matches or exceeds your application's maximum current measurement requirement. From the available data, Active status options are HAS 50-S, HAS 100-P, HAS 100-S, HAS 200-P, HAS 200-S, HAS 300-P, HAS 300-S, HAS 400-P, and HAS 400-S. The -S variants generally offer higher inventory availability.
