H9039-01 Equivalent & Substitute Parts

Part Overview

The H9039-01 is a Terminal Turret Connector manufactured by Harwin Inc., classified as a single-end, fork, hollow turret terminal with tin finish. This component is designed for through-hole mounting applications with a 0.375" (9.53mm) above-board length and swage, knurled termination. The part is currently listed as obsolete, making identification of suitable substitute components essential for ongoing production and maintenance applications.

Substiute Parts

H9039-01

Harwin Inc.In Stock: 753H9039-01 Datasheet

Current PartRFQ

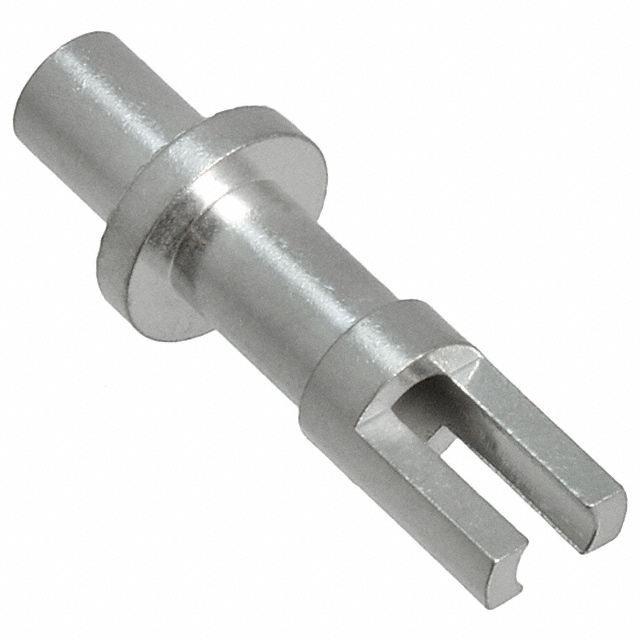

H2039-01

Harwin Inc.In Stock: 1355H2039-01 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

The H2039-01 is identified as a manufacturer-recommended substitute for the H9039-01. Substitution eligibility is determined by the following critical parameters:

• Terminal Type: Both parts are Single End, Fork, Hollow turret terminals
• Contact Material: Both use Brass Alloy with Tin finish
• Mounting Type: Both are Through Hole mounted
• Board Thickness: Both accommodate 0.126" (3.20mm) board thickness
• Insulation: Both are Non-Insulated
• RoHS & Compliance: Both are ROHS3 Compliant and REACH Unaffected

The primary difference is the Length - Above Board dimension: H9039-01 measures 0.375" (9.53mm), while H2039-01 measures 0.500" (12.70mm). This dimensional variance must be evaluated against specific application requirements.

Parameter Comparison

Engineering Selection Recommendations

The H2039-01 is the manufacturer-recommended substitute for the obsolete H9039-01. Both components share identical contact material, finish, insulation classification, and compliance certifications (ROHS3, REACH Unaffected). The H2039-01 maintains active product status with current inventory availability.

Selection of H2039-01 as a replacement requires evaluation of the dimensional differences, particularly the increased above-board length (0.500" versus 0.375") and the corresponding changes in overall length, flange diameter, and mounting hole diameter. These dimensional variations must be assessed against the specific mechanical constraints and clearance requirements of the target application.

Frequently Asked Questions (FAQ)

Q: Can H2039-01 be used as a direct replacement for H9039-01?

A: H2039-01 is the manufacturer-recommended substitute. Both parts share identical terminal type, contact material, finish, and compliance status. However, dimensional differences exist, particularly in above-board length and mounting hole diameter. Application-specific mechanical constraints must be evaluated.

Q: What are the key dimensional differences between these parts?

A: The H2039-01 has a 0.500" (12.70mm) above-board length compared to the H9039-01's 0.375" (9.53mm). The H2039-01 also features a larger flange diameter (0.219" versus 0.199") and a smaller mounting hole diameter (0.126" ~ 0.129" versus 0.147" ~ 0.149").

Q: Are both parts RoHS compliant?

A: Yes. Both H9039-01 and H2039-01 are ROHS3 Compliant and REACH Unaffected.

Q: What is the product status difference?

A: H9039-01 is obsolete with limited inventory. H2039-01 is active with current manufacturing and availability.

Q: Do both parts use the same contact material and finish?

A: Yes. Both components use Brass Alloy with Tin finish for the contact material.

Q: Are there packaging differences?

A: H9039-01 is listed with unspecified packaging. H2039-01 is supplied in Bulk packaging.
