H7008NLT Equivalent & Substitute Parts

Part Overview

The H7008NLT is an Isolation and Data Interface (Encapsulated) Pulse Transformer manufactured by Pulse Electronics, designed for 10GBASE-T applications. This Surface Mount transformer operates within the 0°C to 70°C temperature range and is RoHS Compliant with MSL 1 (Unlimited) moisture sensitivity rating. The part is currently Active in product status with 3800 units available in inventory. Substitute parts are identified to provide alternative sourcing options when the primary part number becomes unavailable or when inventory constraints require component alternatives.

Substiute Parts

H7008NLT

Pulse ElectronicsIn Stock: 3875H7008NLT Datasheet

Current PartRFQ

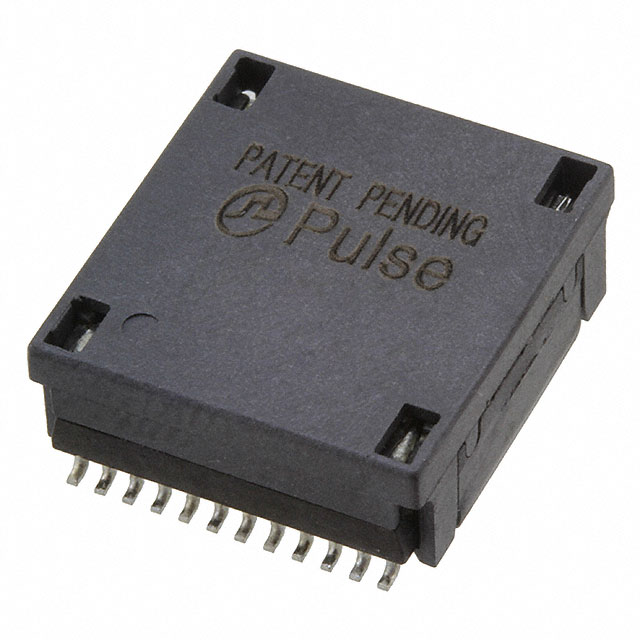

H7008FNLT

Pulse ElectronicsIn Stock: 3189H7008FNLT Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The H7008FNLT qualifies as a direct substitute for the H7008NLT based on the following alignment of critical parameters:

• Both parts are manufactured by Pulse Electronics
• Both are classified as 10GBASE-T Pulse Transformers with Surface Mount configuration
• Both utilize Tape & Reel packaging
• Both operate within the identical temperature range of 0°C to 70°C
• Both maintain RoHS Compliance and MSL 1 (Unlimited) moisture sensitivity rating
• Both share identical REACH Status (REACH Unaffected) and ECCN classification (EAR99)
• Both are Active products with current inventory availability

The H7008FNLT provides additional specification detail with a 200µH inductance rating and 1:1 turns ratio, characteristics consistent with LAN 10G Base-T transformer design requirements.

Parameter Comparison

Engineering Selection Recommendations

Both the H7008NLT and H7008FNLT are Active products with current manufacturing status and full compliance certifications. Selection between these parts should be based on specific application requirements and PCB layout constraints. The H7008FNLT presents a slightly larger footprint (0.591" L x 0.539" W versus 0.539" L x 0.480" W) with marginally reduced seated height (0.230" versus 0.235"). Both parts maintain identical thermal operating ranges and regulatory compliance profiles. Inventory availability is adequate for both part numbers, with the H7008NLT currently showing higher stock levels at 3800 units compared to 3143 units for the H7008FNLT.

Frequently Asked Questions (FAQ)

Q: Can H7008FNLT be used as a direct replacement for H7008NLT in existing designs?

A: Yes. Both parts share identical operating temperature ranges, RoHS compliance, moisture sensitivity ratings, and regulatory classifications. The primary design consideration is PCB layout accommodation, as the H7008FNLT has a larger length and width footprint.

Q: What are the dimensional differences between these parts?

A: The H7008NLT measures 0.539" L x 0.480" W with 0.235" maximum seated height. The H7008FNLT measures 0.591" L x 0.539" W with 0.230" maximum seated height. Both dimensions are within typical Surface Mount component tolerances for 10GBASE-T applications.

Q: Are both parts available in the same packaging format?

A: Yes. Both the H7008NLT and H7008FNLT are supplied in Tape & Reel (TR) packaging, ensuring compatibility with standard automated assembly processes.

Q: Do these parts have identical compliance certifications?

A: Yes. Both parts are RoHS Compliant, REACH Unaffected, and classified under ECCN EAR99. Both maintain MSL 1 (Unlimited) moisture sensitivity ratings.

Q: What is the current inventory status for these substitute parts?

A: The H7008NLT has 3800 units in stock, while the H7008FNLT has 3143 units in stock. Both are listed as new original inventory.
