H4CFN6DM Female Coupler Connector Plus 10 AWG

Part Overview

The H4CFN6DM is a female coupler connector manufactured by Amphenol Industrial Operations, designed for photovoltaic (solar panel) applications. This connector features a Plus keying configuration and supports 10 AWG wire gauge. The H4CFN6DM is classified as obsolete, necessitating identification of active equivalent components to maintain system compatibility and ensure continued availability for new installations and field replacements.

Substiute Parts

H4CFN6DM

Amphenol Industrial OperationsIn Stock: 823H4CFN6DM Datasheet

Current PartRFQ

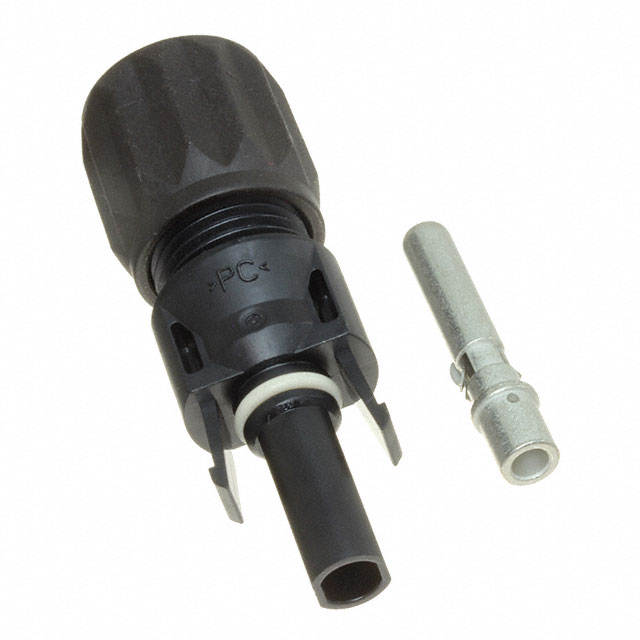

H4CFC6DM

Amphenol Industrial OperationsIn Stock: 5013H4CFC6DM Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the H4CFN6DM is based on strict alignment of the following critical parameters:

Substitution Criteria:

• Connector type: Female Coupler
• Series compatibility: Helios H4
• Keying configuration: Plus
• Wire gauge rating: 10 AWG
• Regulatory compliance: RoHS Compliant
• Moisture sensitivity: MSL 1 (Unlimited)
• Export classification: EAR99
• Tariff classification: HTSUS 8536.69.8000

The H4CFC6DM meets all substitution criteria and is classified as an active product, making it a direct functional equivalent for the obsolete H4CFN6DM.

Parameter Comparison

Engineering Selection Recommendations

The H4CFC6DM is the direct substitute for the H4CFN6DM. Both components are manufactured by Amphenol Industrial Operations within the Helios H4 series and share identical electrical and mechanical specifications. The H4CFC6DM is currently in active production status, whereas the H4CFN6DM is obsolete.

Selection of the H4CFC6DM is supported by:

• Identical connector type, keying, and wire gauge specifications
• Full RoHS compliance alignment
• Matching moisture sensitivity classification
• Identical export and tariff classifications
• Active product status ensuring continued availability and supply chain reliability

The H4CFC6DM is supplied in bag packaging and maintains full compatibility with systems designed for the H4CFN6DM.

Frequently Asked Questions (FAQ)

Q: Can the H4CFC6DM directly replace the H4CFN6DM in existing installations?

A: Yes. Both connectors are female couplers in the Helios H4 series with Plus keying and 10 AWG wire gauge rating. They share identical electrical and mechanical specifications and are fully compatible.

Q: What is the primary difference between these two parts?

A: The H4CFN6DM is obsolete, while the H4CFC6DM is an active product. The H4CFC6DM is supplied in bag packaging. All functional and compliance parameters are identical.

Q: Are there any compliance or regulatory differences between these parts?

A: No. Both parts are RoHS Compliant, carry MSL 1 (Unlimited) rating, and share the same ECCN (EAR99) and HTSUS (8536.69.8000) classifications.

Q: Does packaging affect the substitution?

A: Packaging does not affect electrical or mechanical compatibility. The H4CFC6DM is supplied in bag packaging, which is standard for this component category.

Q: Is the H4CFC6DM available in sufficient quantity?

A: Yes. The H4CFC6DM has 4989 pieces in stock as new original inventory, providing adequate supply for both new installations and field replacements.
