LED Circuit Board Indicator H131CHCL-140 Equivalent & Substitute Parts

Part Overview

The H131CHCL-140 is a LED Circuit Board Indicator (CBI) assembly manufactured by Bivar Inc. This component is classified as obsolete, indicating it is no longer in active production. LED Circuit Board Indicators are used in electronic equipment for status indication, alarm signaling, and visual feedback applications. Due to its obsolete status, identifying functionally equivalent substitute components is necessary to maintain design continuity and ensure component availability for repair, maintenance, and new production requirements.

Substiute Parts

H131CHCL-140

Bivar Inc.In Stock: 1118H131CHCL-140 Datasheet

Current PartRFQ

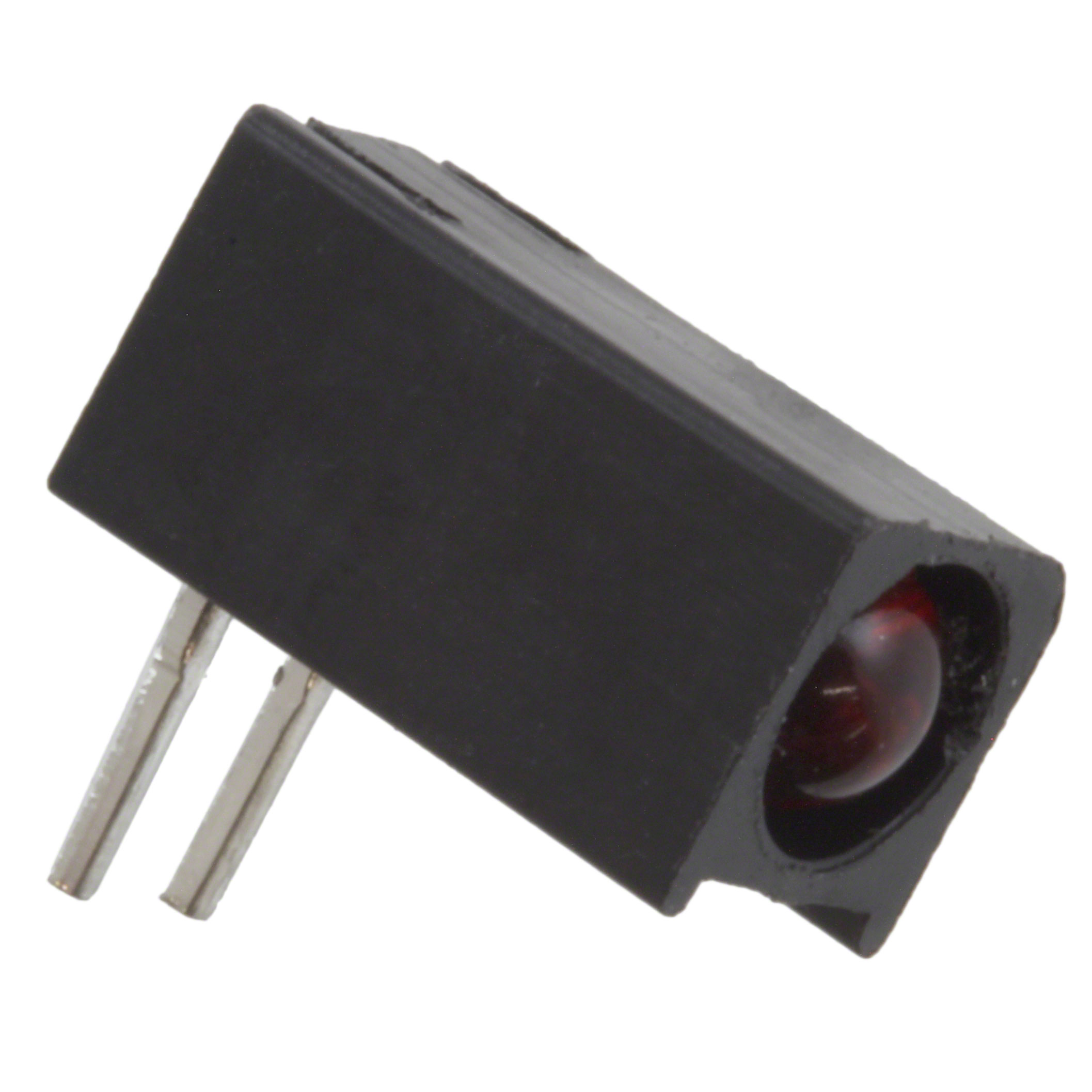

5511702F

DialightIn Stock: 26855511702F Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the H131CHCL-140 is based on functional equivalence within the LED Circuit Board Indicator category. The primary substitute identified is the Dialight 5511702F, which shares the following critical parameters that determine substitutability:

Key Substitution Parameters:

• Product Category: LED Circuit Board Indicator
• Moisture Sensitivity Level: 1 (Unlimited)
• ECCN Classification: EAR99
• HTSUS Code: 8541.41.0000
• Regulatory Compliance: RoHS3 Compliant, REACH Unaffected

The 5511702F maintains compatibility through identical MSL rating, export classification, and tariff coding. Both components operate within the same regulatory framework and environmental handling requirements.

Parameter Comparison

Engineering Selection Recommendations

The Dialight 5511702F (Series 551) is the identified equivalent substitute for the obsolete H131CHCL-140. Selection of this substitute is supported by the following engineering criteria:

Product Status Alignment: The 5511702F maintains active production status, ensuring long-term component availability and supply chain continuity compared to the obsolete H131CHCL-140.

Regulatory Compliance: Both components share identical ECCN (EAR99) and HTSUS (8541.41.0000) classifications, confirming equivalent export control and tariff treatment. The 5511702F carries explicit RoHS3 Compliance and REACH Unaffected certifications, meeting current regulatory requirements.

Environmental Handling: Both components maintain MSL 1 (Unlimited) rating, indicating no moisture sensitivity constraints during storage, handling, or assembly processes.

Inventory Availability: The 5511702F has 2599 units in current stock, providing immediate availability for component procurement and production requirements.

Frequently Asked Questions (FAQ)

Q: What makes the Dialight 5511702F a valid substitute for the H131CHCL-140?

A: Both components are classified as LED Circuit Board Indicators with identical Moisture Sensitivity Level (MSL 1), ECCN classification (EAR99), and HTSUS tariff code (8541.41.0000). These parameters define the functional and regulatory equivalence required for substitution within this component category.

Q: Why is the H131CHCL-140 listed as obsolete?

A: The H131CHCL-140 is no longer manufactured by Bivar Inc. and has been discontinued from active production. The obsolete status necessitates identification of active substitute components to maintain design continuity and ensure component availability.

Q: Are there any packaging differences between the H131CHCL-140 and 5511702F?

A: The H131CHCL-140 packaging is not specified in the available documentation. The 5511702F is supplied in Bulk packaging. Packaging specifications should be verified against original design requirements and procurement standards.

Q: Does the 5511702F meet current regulatory requirements?

A: Yes. The 5511702F carries RoHS3 Compliance and REACH Unaffected certifications, confirming compliance with current environmental and chemical restriction regulations. Both components maintain EAR99 export classification.

Q: Can the 5511702F be used as a direct replacement without design modification?

A: Substitution compatibility is confirmed based on shared MSL, ECCN, and HTSUS parameters. However, mechanical fit, electrical performance characteristics, and mounting configuration must be verified against the original H131CHCL-140 design specifications and application requirements.

Q: What is the inventory status for substitute components?

A: The Dialight 5511702F has 2599 units in current stock as new original inventory, providing immediate availability for procurement and production use.
