GT8E-5P-DSA Equivalent & Substitute Parts

Part Overview

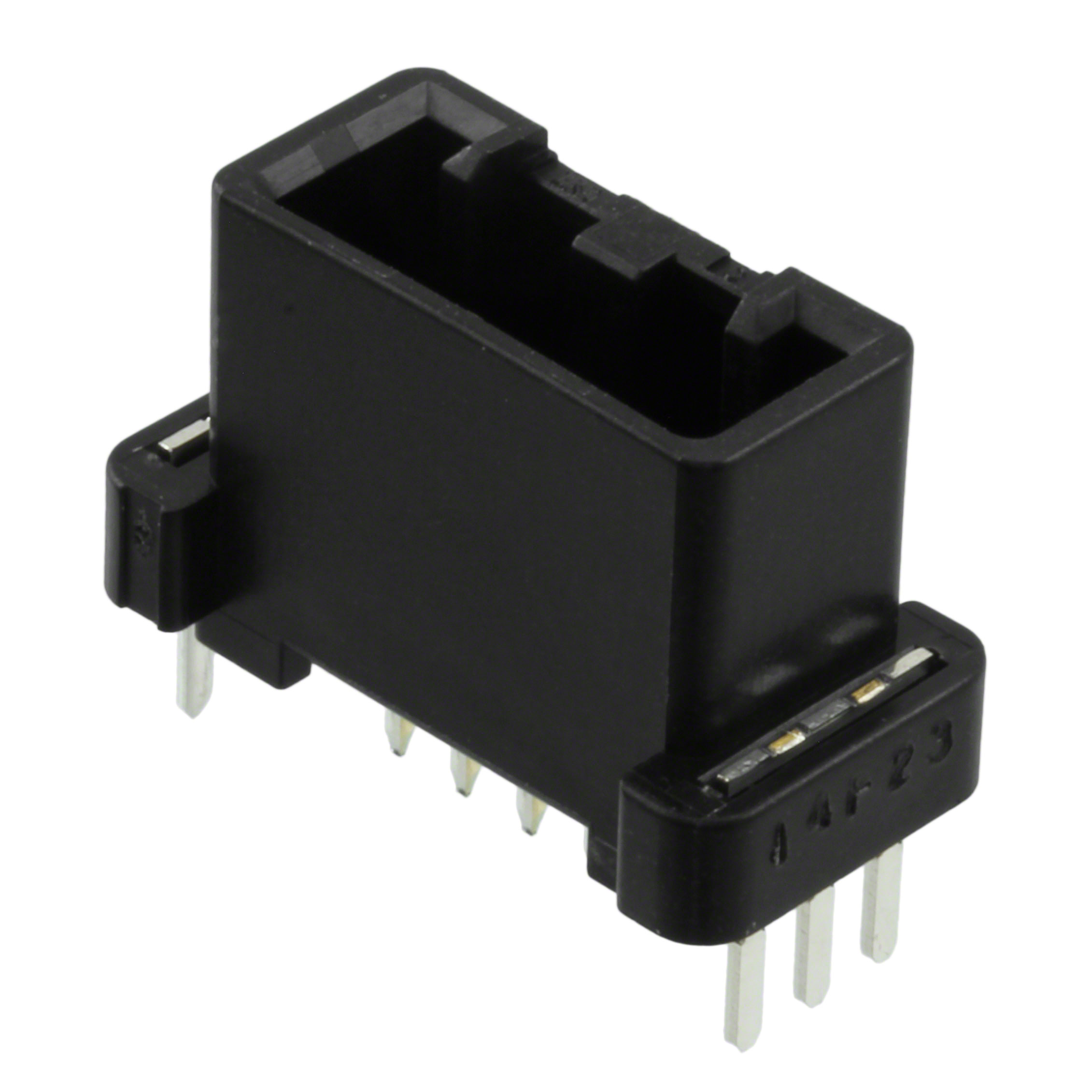

The GT8E-5P-DSA is a rectangular connector header manufactured by Hirose Electric Co Ltd, designed for through-hole mounting applications. This connector features a vertical orientation with 5 positions at 2.00mm pitch, shrouded 4-wall construction, and solder termination with latch lock fastening. The part is classified as obsolete, making identification of active equivalent parts essential for ongoing production and maintenance applications.

Substiute Parts

GT8E-5P-DSA

Hirose Electric Co LtdIn Stock: 920GT8E-5P-DSA Datasheet

Current PartRFQ

GT8E-5P-DSA(55)

Hirose Electric Co LtdIn Stock: 1687GT8E-5P-DSA(55) Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the GT8E-5P-DSA is determined by strict equivalence across the following critical parameters:

Mechanical Compatibility:

• Connector type (Header)
• Contact type (Male Pin)
• Number of positions (5)
• Pitch - mating (0.079" / 2.00mm)
• Mounting type (Through Hole)
• Shrouding configuration (Shrouded - 4 Wall)
• Fastening type (Latch Lock)

Electrical & Material Compatibility:

• Contact material (Brass)
• Contact finish (Tin on both mating and post surfaces)
• Insulation material (PBT or equivalent polymeric material)
• Termination method (Solder)

Regulatory & Environmental:

• RoHS compliance status
• MSL rating (1 - Unlimited)

The substitute part GT8E-5P-DSA(55) maintains full equivalence across all critical parameters while offering active product status and enhanced operational specifications.

Parameter Comparison

Engineering Selection Recommendations

The GT8E-5P-DSA(55) is the direct active equivalent for the obsolete GT8E-5P-DSA. Both parts maintain identical mechanical and electrical interface specifications, ensuring pin-for-pin compatibility in existing circuit designs.

Product Status Advantage: The GT8E-5P-DSA(55) carries active product status with established supply chain availability (1654 pcs in stock versus 859 pcs for the obsolete variant), supporting long-term production requirements.

Regulatory Compliance: The substitute part meets ROHS3 compliance and REACH unaffected status, satisfying current environmental and regulatory requirements. Both parts maintain MSL 1 (Unlimited) moisture sensitivity rating.

Enhanced Specifications: The GT8E-5P-DSA(55) provides documented operating temperature range (-40°C to 105°C), current rating (1A), and voltage rating (250VAC), enabling complete electrical characterization for design validation.

Material Consideration: The substitute part uses Polyamide (PA) / Nylon insulation material in place of PBT, with equivalent mechanical and thermal properties for this connector class. Both materials are standard for shrouded header applications.

Frequently Asked Questions (FAQ)

Q: Are GT8E-5P-DSA and GT8E-5P-DSA(55) mechanically interchangeable?

A: Yes. Both parts share identical pitch (2.00mm), position count (5), mounting type (through hole), shrouding configuration (4-wall), and fastening mechanism (latch lock). PCB footprints and mating connector interfaces are identical.

Q: What is the difference in insulation material between the two parts?

A: The original GT8E-5P-DSA uses Polybutylene Terephthalate (PBT), while the GT8E-5P-DSA(55) uses Polyamide (PA) / Nylon. Both materials provide equivalent mechanical strength, thermal stability, and electrical insulation properties for this connector application class.

Q: Does the GT8E-5P-DSA(55) provide electrical specifications?

A: Yes. The substitute part is rated for 1A current and 250VAC voltage with an operating temperature range of -40°C to 105°C. The original part does not specify these parameters.

Q: Is the GT8E-5P-DSA(55) RoHS compliant?

A: Yes. The substitute part meets ROHS3 compliance and is REACH unaffected, satisfying current environmental regulations. The original part is RoHS compliant.

Q: Can I use GT8E-5P-DSA(55) in new designs?

A: Yes. The active product status, documented electrical specifications, and regulatory compliance of GT8E-5P-DSA(55) make it suitable for new design implementations. The part maintains full mechanical and electrical compatibility with existing GT8E series mating connectors.

Q: What is the packaging format for both parts?

A: Both parts are supplied in tray packaging, standard for through-hole connector distribution.
