GT-215U Line Filter Equivalent & Substitute Parts

Part Overview

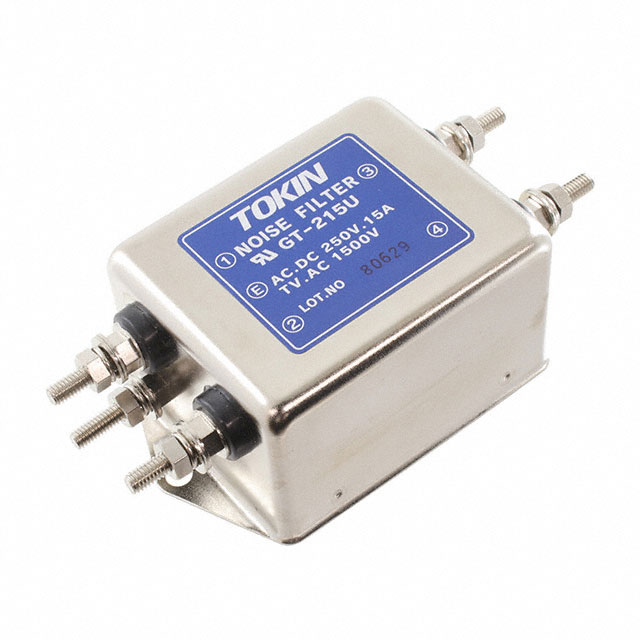

The GT-215U is a single-phase EMC/EMI line filter manufactured by KEMET, rated for 250VAC at 15A with chassis mount configuration and threaded post (M4) termination. This component is designated as Last Time Buy, indicating discontinued production status. Identification of equivalent substitute parts is necessary to ensure continued availability for new designs and replacement applications where the original part is no longer procurable.

Substiute Parts

GT-215U

KEMETIn Stock: 1046GT-215U Datasheet

Current PartRFQ

GTX-2160-Y03

KEMETIn Stock: 1213GTX-2160-Y03 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the GT-215U requires matching of the following critical parameters: single-phase filter type, single-stage configuration, 250VAC rated voltage, chassis mount design, and compatible termination interface. The current rating must equal or exceed 15A to maintain electrical performance within the application circuit. Operating temperature range and RoHS compliance status are secondary considerations that support long-term reliability and regulatory conformance.

The GTX-2160-Y03 is identified as a manufacturer-recommended substitute based on alignment of these core electrical and mechanical parameters within the constraints of available component specifications.

Parameter Comparison

Engineering Selection Recommendations

The GTX-2160-Y03 serves as the manufacturer-recommended substitute for the GT-215U. This substitution is supported by electrical parameter alignment: both components maintain 250VAC rating, single-phase single-stage configuration, and chassis mount design. The GTX-2160-Y03 provides enhanced specifications with 16A current capacity (exceeding the 15A requirement), 560V DC rating, and extended lower temperature operating limit (-25°C versus -20°C).

Both components maintain ROHS3 compliance and are manufactured by KEMET. The GTX-2160-Y03 holds Active product status, ensuring continued availability and supply chain stability compared to the Last Time Buy status of the GT-215U.

The primary design consideration is termination interface: the GT-215U uses threaded post (M4) termination while the GTX-2160-Y03 uses terminal block termination. Circuit board layout and connector compatibility must be evaluated during implementation to accommodate this interface difference.

Frequently Asked Questions (FAQ)

Q: Can the GTX-2160-Y03 directly replace the GT-215U without circuit modification?

A: Electrical substitution is valid based on filter type, voltage rating, current capacity, and chassis mount configuration. However, termination interface differs: GT-215U uses M4 threaded posts while GTX-2160-Y03 uses terminal block. Physical mounting and connection method require design review and potential PCB layout adjustment.

Q: What is the significance of the current rating difference (15A versus 16A)?

A: The GTX-2160-Y03 16A rating exceeds the GT-215U 15A requirement. This provides additional current capacity margin and does not create incompatibility. The substitute component can safely handle applications designed for 15A operation.

Q: Are there compliance differences between these components?

A: Both components are ROHS3 compliant. The GTX-2160-Y03 carries additional approval certifications (cUL, TUV, UL) not specified for the GT-215U. The substitute provides enhanced regulatory documentation and broader market acceptance.

Q: Why does the GTX-2160-Y03 specify 560V DC rating when the GT-215U does not?

A: The GTX-2160-Y03 is rated for both 250VAC and 560VDC operation, providing broader application flexibility. The GT-215U specification does not include DC rating information. For AC-only applications at 250V, both components are functionally equivalent in this parameter.

Q: What is the impact of the operating temperature range difference?

A: The GTX-2160-Y03 extends the lower operating limit to -25°C compared to the GT-215U at -20°C. This provides 5°C additional margin for cold environment applications. For standard industrial temperature ranges, both components are compatible.

Q: Is the terminal block termination of the GTX-2160-Y03 compatible with existing M4 threaded post connections?

A: No. Terminal block and threaded post are distinct termination interfaces requiring different connection methods. Applications using the GT-215U with M4 threaded post connections require mechanical and electrical interface adaptation to accommodate the GTX-2160-Y03 terminal block termination.
