GT17VC-8DP-DS-SB Equivalent & Substitute Parts

Part Overview

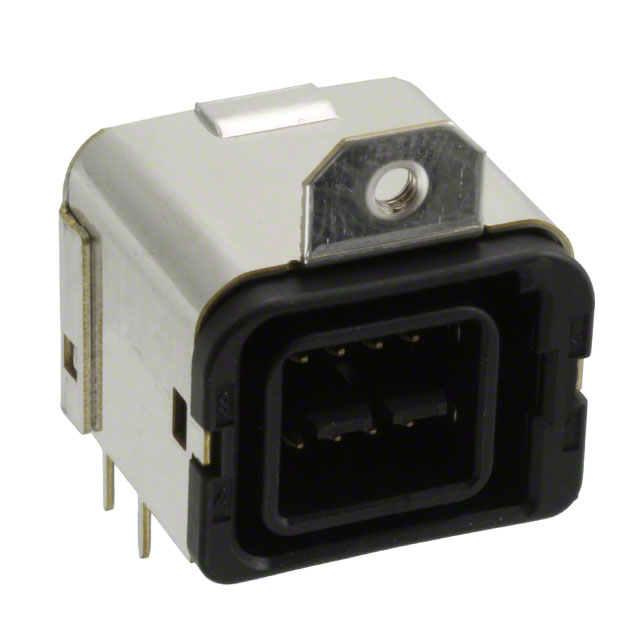

The GT17VC-8DP-DS-SB is an 8 Position Automotive LAN Connector Plug with solder termination and right-angle mounting from Hirose Electric Co Ltd. This component is classified as obsolete, making identification of suitable substitute parts essential for ongoing design support, maintenance, and production continuity. The connector features a board guide and flange for secure mounting in automotive applications requiring LAN connectivity.

Substiute Parts

GT17VC-8DP-DS-SB

Hirose Electric Co LtdIn Stock: 1105GT17VC-8DP-DS-SB Datasheet

Current PartRFQ

GT17VC-8DP-DS-SB(55)

Hirose Electric Co LtdIn Stock: 1157GT17VC-8DP-DS-SB(55) Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution for the GT17VC-8DP-DS-SB is determined by strict equivalence across the following critical parameters:

• Connector Type & Series: Automotive LAN Connector, GT17 series
• Connector Style & Position Count: Plug configuration with 8 positions
• Mounting & Termination: Through hole, right-angle orientation with solder termination
• Mechanical Features: Board guide and flange presence
• Contact Material & Finish: Tin-plated contacts
• Environmental Compliance: RoHS compliance and MSL rating

The substitute part GT17VC-8DP-DS-SB(55) maintains full compatibility across all these parameters while offering an active product status and enhanced compliance certifications.

Parameter Comparison

Engineering Selection Recommendations

The GT17VC-8DP-DS-SB(55) is the direct substitute for the obsolete GT17VC-8DP-DS-SB. Both components share identical electrical and mechanical specifications across all critical parameters: 8-position automotive LAN connector, plug style, through-hole right-angle mounting, and solder termination.

The substitute part offers the following advantages:

• Active Product Status: GT17VC-8DP-DS-SB(55) is actively manufactured and supported, ensuring long-term availability and supply chain continuity.
• Enhanced Compliance: ROHS3 certification provides compliance with current regulatory requirements, compared to the RoHS Compliant status of the main part.
• Specified Contact Finish Thickness: The substitute provides explicit contact finish thickness specification (25.2µin / 0.64µm), enabling precise quality control verification.
• Shielded Configuration: The addition of shielding in the substitute part provides enhanced electromagnetic interference (EMI) protection for automotive LAN applications.
• Standardized Packaging: Tray packaging supports automated assembly processes and inventory management.

Selection of GT17VC-8DP-DS-SB(55) is appropriate for all applications currently using or requiring the GT17VC-8DP-DS-SB.

Frequently Asked Questions (FAQ)

Q: Are GT17VC-8DP-DS-SB and GT17VC-8DP-DS-SB(55) electrically and mechanically identical?

A: Yes. Both connectors maintain identical specifications for connector type, position count, mounting configuration, termination method, and contact finish. The substitute part includes shielding and specified contact finish thickness as additional features.

Q: Why is the main part listed as obsolete?

A: The GT17VC-8DP-DS-SB has reached end-of-life status. The GT17VC-8DP-DS-SB(55) variant remains in active production and is the recommended replacement for new designs and ongoing production support.

Q: What is the significance of the "(55)" designation in GT17VC-8DP-DS-SB(55)?

A: The "(55)" suffix indicates a specific variant within the GT17 series. In this case, it denotes the active production version with shielded configuration and current compliance certifications.

Q: Can GT17VC-8DP-DS-SB(55) be used as a direct drop-in replacement?

A: Yes. The substitute part maintains full mechanical and electrical compatibility with the original part. Pin configuration, mounting footprint, and solder termination are identical, enabling direct substitution in existing designs.

Q: What is the difference in shielding between the two parts?

A: The main part (GT17VC-8DP-DS-SB) features board guide and flange. The substitute part (GT17VC-8DP-DS-SB(55)) includes these features plus shielding, which provides additional EMI protection for automotive LAN signal integrity.

Q: Are there any packaging considerations when switching to the substitute part?

A: The substitute part is supplied in tray packaging, which is standard for automated assembly operations. The main part packaging specification was not provided. Tray packaging is compatible with standard pick-and-place equipment used in PCB assembly.

Q: What compliance certifications apply to each part?

A: The main part carries RoHS Compliant certification. The substitute part carries ROHS3 Compliant certification, which represents current regulatory compliance standards. Both parts have MSL rating of 1 (Unlimited) and are classified under ECCN EAR99.
