GS02MAKE Equivalent & Substitute Parts

Part Overview

The GS02MAKE is a slide switch SPST (Single Pole Single Throw) component manufactured by C&K, rated for 0.4VA at 20V with through-hole, right-angle mounting. This part is classified as obsolete, which necessitates identification of functionally equivalent alternatives for ongoing design requirements and component procurement.

Substiute Parts

GS02MAKE

C&KIn Stock: 1150GS02MAKE Datasheet

Current PartRFQ

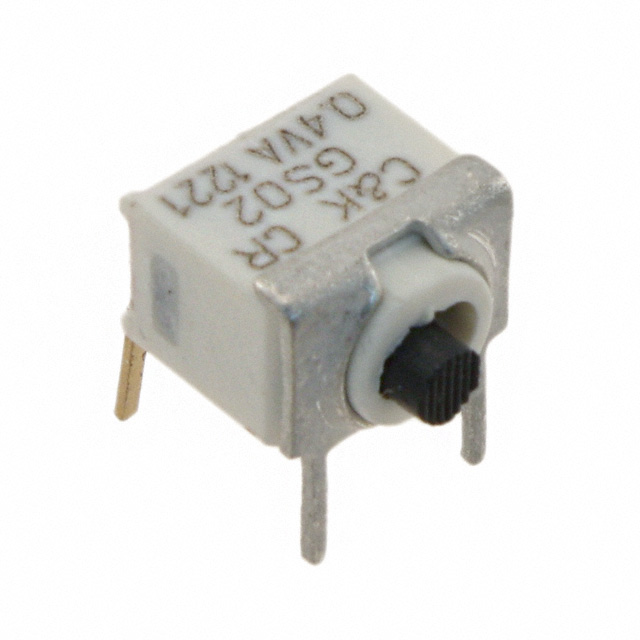

GS02MABE

C&KIn Stock: 1079GS02MABE Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the GS02MAKE is based on strict equivalence across the following critical parameters:

• Circuit configuration: SPST topology
• Current and voltage ratings: 0.4VA at 20V (AC/DC)
• Mounting configuration: Through hole, right-angle orientation
• Termination style: PC pin
• Mechanical and electrical life: 40,000 cycles minimum
• Actuator type and length: Standard, 1.27mm
• Switch travel distance: 1.02mm
• Contact finish: Gold plating
• Features: Epoxy sealed terminals

The GS02MABE qualifies as a direct substitute based on full alignment with these parameters. The primary distinction is product status and compliance certification, not functional or electrical characteristics.

Parameter Comparison

Engineering Selection Recommendations

The GS02MABE is the appropriate substitute for the obsolete GS02MAKE based on the following factors:

• All critical electrical parameters are identical: 0.4VA current rating, 20V voltage rating (AC/DC), SPST circuit configuration, and on-off switch function.
• Mechanical specifications are fully equivalent: through-hole right-angle mounting, PC pin termination, 1.27mm actuator length, 1.02mm switch travel, and 40,000-cycle mechanical and electrical life.
• The GS02MABE is actively manufactured, ensuring long-term availability and supply chain continuity.
• The GS02MABE meets ROHS3 compliance, addressing regulatory requirements for new designs and procurement.
• Operating temperature range of the GS02MABE (-40°C to 85°C) exceeds the GS02MAKE specification (-30°C to 85°C), providing enhanced performance margin in low-temperature applications.
• Contact material differs (copper versus beryllium copper), but both materials with gold finish provide equivalent electrical performance for the specified 0.4VA rating.

Frequently Asked Questions (FAQ)

Q: Can GS02MABE be used as a direct replacement for GS02MAKE in existing designs?

A: Yes. The GS02MABE is electrically and mechanically equivalent to the GS02MAKE across all specified parameters. No circuit modifications or PCB layout changes are required for substitution.

Q: What is the primary reason for substituting GS02MAKE with GS02MABE?

A: The GS02MAKE is classified as obsolete, making it unavailable for new procurement. The GS02MABE is an active product from the same manufacturer and series, providing identical functional performance with current manufacturing support.

Q: Are there differences in contact material between these parts?

A: Yes. The GS02MAKE uses beryllium copper contacts, while the GS02MABE uses copper contacts. Both are finished with gold plating. For the specified 0.4VA rating and 20V voltage, both contact materials deliver equivalent electrical performance.

Q: Does the GS02MABE meet RoHS requirements?

A: Yes. The GS02MABE is ROHS3 compliant, meeting current regulatory standards. The GS02MAKE is RoHS non-compliant. For new designs and procurement subject to RoHS regulations, the GS02MABE is the required choice.

Q: What is the packaging difference between these parts?

A: The GS02MAKE packaging is not specified. The GS02MABE is supplied in tray packaging. Confirm tray packaging compatibility with your assembly process before procurement.

Q: Is the operating temperature range of GS02MABE suitable for my application?

A: The GS02MABE operates from -40°C to 85°C, which exceeds the GS02MAKE range of -30°C to 85°C. If your application requires operation below -30°C, the GS02MABE provides additional margin. If your application operates only within -30°C to 85°C, both parts are suitable.

Q: Are there any inventory or lead time considerations?

A: The GS02MAKE has 1,073 pieces in stock but is obsolete with no future manufacturing. The GS02MABE has 1,002 pieces in stock and is actively manufactured, ensuring ongoing availability for future orders.
