GRF1-P-P-06-E-ST-TH1 Equivalent & Substitute Parts

Part Overview

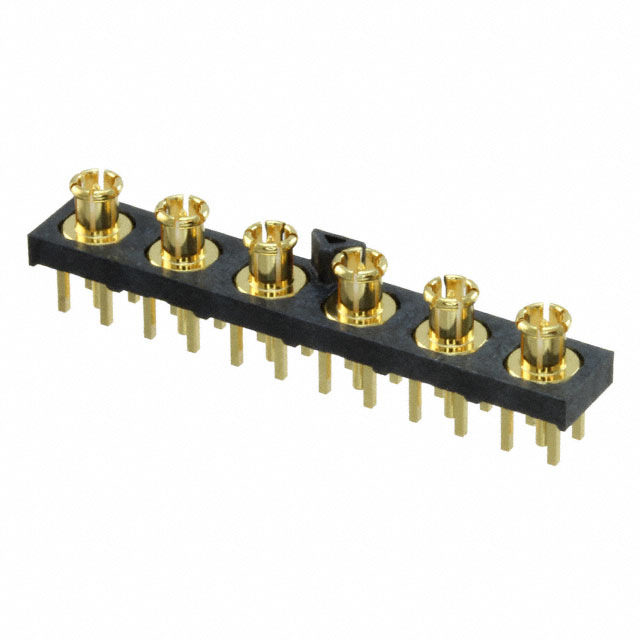

The GRF1-P-P-06-E-ST-TH1 is an MMCX (V) Connector Plug with male pin configuration, rated for 50 Ohms impedance, designed for through-hole solder mounting on printed circuit boards. Manufactured by Samtec Inc., this connector operates across a frequency range up to 6 GHz and supports 6 ports. The part maintains Active product status with full ROHS3 compliance and REACH compliance. Substitute parts become necessary when port count requirements differ while maintaining identical electrical and mechanical specifications, or when inventory availability requires alternative configurations from the same connector series.

Substiute Parts

GRF1-P-P-06-E-ST-TH1

Samtec Inc.In Stock: 1083GRF1-P-P-06-E-ST-TH1 Datasheet

Current PartRFQ

GRF1-P-P-02-E-ST-TH1

Samtec Inc.In Stock: 79134GRF1-P-P-02-E-ST-TH1 Datasheet

Parametric EquivalentRFQ

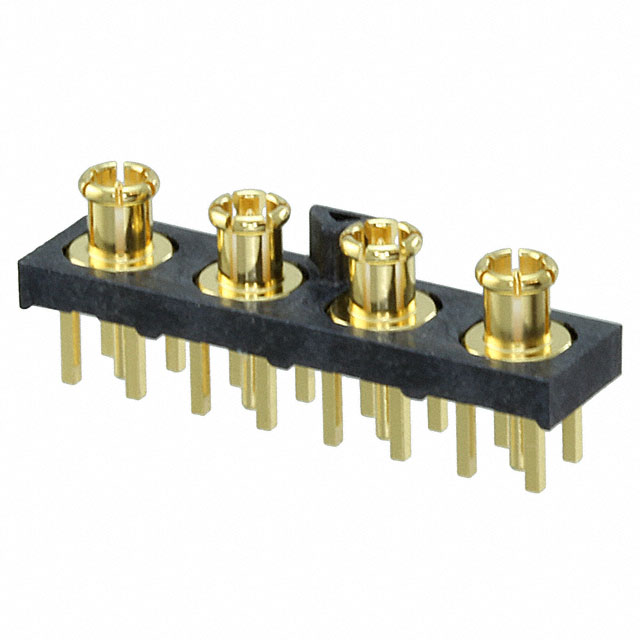

GRF1-P-P-04-E-ST-TH1

Samtec Inc.In Stock: 795GRF1-P-P-04-E-ST-TH1 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts GRF1-P-P-02-E-ST-TH1 and GRF1-P-P-04-E-ST-TH1 are classified as parametric equivalents based on the following criteria:

Identical Parameters (Substitution Basis):

• Connector Style: MMCX (V)
• Connector Type: Plug, Male Pin
• Impedance: 50 Ohms
• Mounting Type: Through Hole
• Contact Termination: Solder
• Shield Termination: Solder
• Frequency - Max: 6 GHz
• Operating Temperature: -40°C ~ 90°C
• Voltage Rating: 500 V
• Center Contact Material: Brass
• Body Material: Brass
• Body Finish: Gold
• Center Contact Plating: Gold
• Dielectric Material: Polytetrafluoroethylene (PTFE)
• Fastening Type: Snap-On
• RoHS Status: ROHS3 Compliant
• REACH Status: REACH Affected
• Manufacturer: Samtec Inc.
• Series: GRF1-P

Variable Parameter (Differentiator):

• Number of Ports: 2 (GRF1-P-P-02-E-ST-TH1), 4 (GRF1-P-P-04-E-ST-TH1), 6 (GRF1-P-P-06-E-ST-TH1)

Substitution is valid when port count requirements permit use of alternative configurations within the same connector series.

Parameter Comparison

Engineering Selection Recommendations

All three parts maintain Active product status with identical ROHS3 and REACH compliance certifications. Selection between GRF1-P-P-06-E-ST-TH1, GRF1-P-P-02-E-ST-TH1, and GRF1-P-P-04-E-ST-TH1 is determined solely by port count requirements for the application. Electrical performance, impedance characteristics, frequency response, and environmental operating parameters are equivalent across all three configurations. All parts are manufactured by Samtec Inc. within the GRF1-P series and share identical material specifications, plating, and termination methods.

Frequently Asked Questions (FAQ)

Q: Can GRF1-P-P-02-E-ST-TH1 or GRF1-P-P-04-E-ST-TH1 be used in place of GRF1-P-P-06-E-ST-TH1?

A: Substitution is valid only when the application requires fewer ports than the original specification. The 2-port and 4-port variants maintain identical electrical and mechanical characteristics. Port count is the only differentiating parameter.

Q: Are there any frequency or impedance differences between these parts?

A: No. All three parts operate at 6 GHz maximum frequency and maintain 50 Ohms impedance. Electrical performance is equivalent.

Q: Do these parts share the same mounting footprint?

A: All parts use through-hole solder mounting with identical contact termination and shield termination methods. Physical layout differences are limited to port count configuration.

Q: What is the operating temperature range for all variants?

A: All three parts operate across -40°C to 90°C.

Q: Are all variants ROHS3 and REACH compliant?

A: Yes. GRF1-P-P-06-E-ST-TH1, GRF1-P-P-02-E-ST-TH1, and GRF1-P-P-04-E-ST-TH1 are all ROHS3 Compliant and REACH Affected.

Q: What is the voltage rating for these connectors?

A: All variants are rated for 500 V.
