GLLC04C Snap Action Switch Equivalent & Substitute Parts

Part Overview

The GLLC04C is a snap action switch manufactured by Honeywell Sensing and Productivity Solutions. This SPDT (Single Pole Double Throw) chassis mount switch is rated for 10A at 300V AC and 250V DC, featuring a roller plunger actuator with IP66 ingress protection. The product is Active status with 1,073 units in current inventory.

Substitute parts are necessary when GLLC04C availability is limited, when alternative termination styles are required for specific assembly processes, or when application requirements permit operation within the electrical and mechanical parameter ranges of equivalent models from other manufacturers.

Substiute Parts

GLLC04C

Honeywell Sensing and Productivity SolutionsIn Stock: 1174GLLC04C Datasheet

Current PartRFQ

D4N-1132

Omron Automation and SafetyIn Stock: 991D4N-1132 Datasheet

SimilarRFQ

D4N-1A32

Omron Automation and SafetyIn Stock: 1066D4N-1A32 Datasheet

SimilarRFQ

D4N-2132

Omron Automation and SafetyIn Stock: 1201D4N-2132 Datasheet

SimilarRFQ

D4N-2A32

Omron Automation and SafetyIn Stock: 925D4N-2A32 Datasheet

SimilarRFQ

D4N-4132

Omron Automation and SafetyIn Stock: 1177D4N-4132 Datasheet

SimilarRFQ

D4N-4A32

Omron Automation and SafetyIn Stock: 899D4N-4A32 Datasheet

SimilarRFQ

D4N-9132

Omron Automation and SafetyIn Stock: 1172D4N-9132 Datasheet

SimilarRFQ

D4N-9A32

Omron Automation and SafetyIn Stock: 1162D4N-9A32 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the GLLC04C with D4N series switches from Omron Automation and Safety is based on the following allowed parameters:

Compatible Parameters:

• Actuator Type: Roller Plunger (identical across all substitute parts)
• Mounting Type: Chassis Mount (identical across all substitute parts)
• Ingress Protection: IP67 (exceeds GLLC04C IP66 requirement)
• Voltage Rating - DC: 250V (matches GLLC04C)
• MSL Rating: 1 (Unlimited) (identical across all substitute parts)
• Operating Force: 663gf (comparable to GLLC04C 612gf)
• Release Force: 153gf (identical to GLLC04C)
• Operating Position: 1.125" / 28.6mm (equivalent to GLLC04C 1.122" / 28.5mm)
• Pretravel: 0.080" / 2.0mm (comparable to GLLC04C 0.100" / 2.5mm)
• Differential Travel: 0.040" / 1.0mm (identical to GLLC04C)
• Overtravel: 0.158" / 4.0mm (exceeds GLLC04C 0.130" / 3.3mm)
• RoHS Compliance: ROHS3 (meets or exceeds GLLC04C RoHS Compliant status)

Parameter Differences Affecting Substitution:

• Circuit Configuration: D4N series are DPST-NO/NC (vs. GLLC04C SPDT)
• Current Rating: D4N series rated 3A AC / 270mA DC (vs. GLLC04C 10A AC/DC)
• Voltage Rating - AC: D4N series 240V (vs. GLLC04C 300V)
• Switch Function: D4N series On-Mom, Off-Mom (vs. GLLC04C On-Mom only)
• Electrical Life: D4N series 300,000 Cycles (vs. GLLC04C not specified)
• Mechanical Life: D4N series 15,000,000 Cycles (exceeds GLLC04C 5,000,000 Cycles)
• Operating Temperature: D4N series -30°C to 70°C (vs. GLLC04C -10°C to 80°C)
• Termination Style: D4N series available in Screw Terminal or Connector (GLLC04C Screw Terminal only)

The D4N series substitutes are suitable only for applications where the lower current rating (3A AC), lower AC voltage rating (240V), and different circuit configuration (DPST vs. SPDT) are acceptable within the system design.

Parameter Comparison

Engineering Selection Recommendations

Screw Terminal Substitutes (Direct Termination Compatibility):

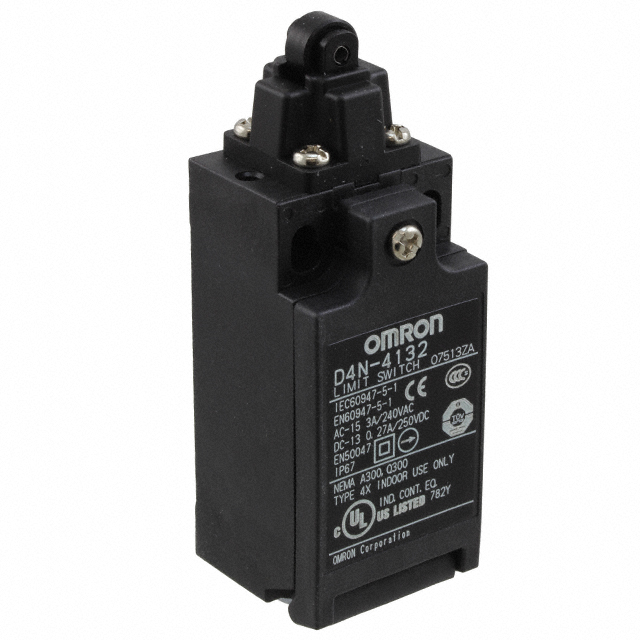

The D4N-1132, D4N-1A32, D4N-2132, D4N-2A32, D4N-4132, and D4N-4A32 models feature screw terminal termination identical to the GLLC04C. These parts are suitable for applications where the circuit configuration change from SPDT to DPST-NO/NC is acceptable and where the reduced current rating (3A AC vs. 10A AC) and reduced AC voltage rating (240V vs. 300V) do not exceed application requirements.

All D4N screw terminal variants maintain ROHS3 compliance, MSL 1 rating, and IP67 ingress protection. The mechanical life rating of 15,000,000 cycles exceeds the GLLC04C specification of 5,000,000 cycles.

Connector Termination Substitutes (Assembly Process Variation):

The D4N-9132 and D4N-9A32 models feature connector termination instead of screw terminals. These parts are suitable only for applications where connector-based assembly is specified and where the same electrical and mechanical parameter constraints apply as the screw terminal D4N variants.

Temperature Range Consideration:

The GLLC04C operates from -10°C to 80°C, while all D4N substitutes operate from -30°C to 70°C. Applications requiring operation above 70°C are not compatible with D4N series substitutes.

Compliance Status:

All substitute parts maintain active product status with current inventory availability. ROHS3 compliance of D4N series meets or exceeds GLLC04C RoHS Compliant status for regulated markets.
