GLLC01D Equivalent & Substitute Parts Reference

Part Overview

The Honeywell GLLC01D is an active-status snap action switch featuring SPDT circuit configuration with 10A AC/DC current rating and 300V AC / 250V DC voltage ratings. This chassis-mount switch with screw terminal termination is designed for applications requiring momentary on-off switching functionality with IP66 ingress protection. Equivalent and substitute parts are identified based on matching electrical specifications, mechanical characteristics, and environmental ratings to ensure functional compatibility in replacement scenarios.

Substiute Parts

GLLC01D

Honeywell Sensing and Productivity SolutionsIn Stock: 1289GLLC01D Datasheet

Current PartRFQ

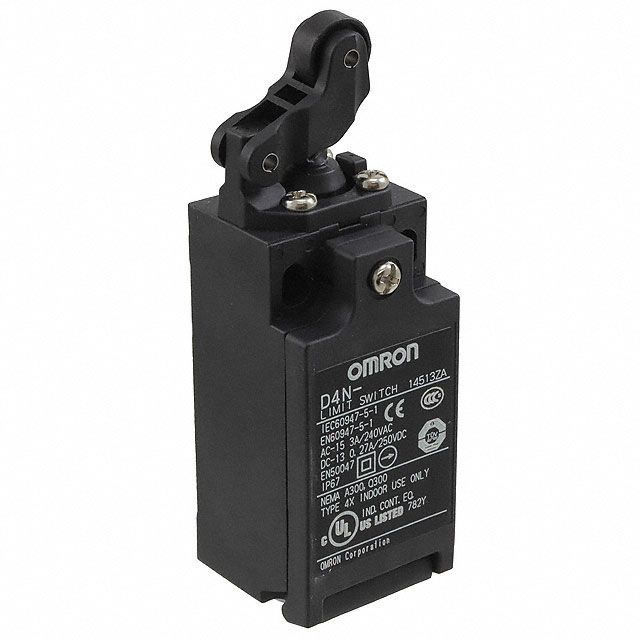

D4N-1162

Omron Automation and SafetyIn Stock: 943D4N-1162 Datasheet

SimilarRFQ

D4N-2A62

Omron Automation and SafetyIn Stock: 862D4N-2A62 Datasheet

SimilarRFQ

D4N-4162

Omron Automation and SafetyIn Stock: 944D4N-4162 Datasheet

SimilarRFQ

D4N-4A62

Omron Automation and SafetyIn Stock: 688D4N-4A62 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the GLLC01D are identified from the Omron D4N series based on the following matching criteria:

Electrical Compatibility Parameters:

• Actuator type: Lever and roller configurations
• Mounting configuration: Chassis mount with screw terminal termination
• DC voltage rating: 250V (matching GLLC01D DC specification)
• Moisture sensitivity level: MSL 1 (Unlimited)
• ECCN classification: EAR99 (matching regulatory status)

Mechanical Compatibility Parameters:

• Operating force range: 510gf (within acceptable actuation envelope)
• Release force: 82gf (consistent with snap action mechanism)
• Pretravel: 0.157" (4.0mm) (comparable to GLLC01D 0.138")
• Overtravel: 0.197" (5.0mm) (comparable to GLLC01D 0.175")
• Operating temperature range: -30°C to 70°C (overlaps GLLC01D range)

Substitute Parts Identified:

• D4N-1162
• D4N-2A62
• D4N-4162
• D4N-4A62

All substitute parts maintain active product status and are manufactured by Omron Automation and Safety.

Parameter Comparison

Engineering Selection Recommendations

Compliance and Regulatory Status:

All substitute parts (D4N-1162, D4N-2A62, D4N-4162, D4N-4A62) maintain active product status and are manufactured by Omron Automation and Safety. D4N-1162, D4N-4162, and D4N-4A62 carry ROHS3 compliance certification. D4N-2A62 carries "Not applicable" RoHS status. All substitute parts are classified as EAR99 for export control purposes, matching the GLLC01D classification.

Electrical Specification Considerations:

The GLLC01D provides 10A current capacity at both AC and DC ratings. The D4N series substitutes provide reduced current capacity: 3A AC and 270mA DC. Applications requiring the full 10A capacity of the GLLC01D cannot be directly substituted with D4N series parts. The D4N series is suitable for applications with current requirements not exceeding 3A AC or 270mA DC.

Environmental Protection Rating:

The GLLC01D provides IP66 ingress protection (dust tight, water resistant). All D4N series substitutes provide IP67 ingress protection (dust tight, waterproof), which exceeds the environmental protection of the main part and is suitable for applications requiring enhanced moisture resistance.

Mechanical Characteristics:

The GLLC01D operates with 816gf operating force and 153gf release force. The D4N series operates with 510gf operating force and 82gf release force. Applications sensitive to actuation force requirements must account for these differences. The D4N series demonstrates superior mechanical life (15,000,000 cycles) compared to the GLLC01D (5,000,000 cycles).

Temperature Operating Range:

The GLLC01D operates from -10°C to 80°C. The D4N series operates from -30°C to 70°C. Applications requiring operation below -10°C or above 70°C must be evaluated against the specific temperature range of the selected substitute.

Frequently Asked Questions (FAQ)

Q: Can D4N series switches directly replace the GLLC01D in all applications?

A: Direct replacement depends on application current requirements. The GLLC01D provides 10A capacity; D4N series provides 3A AC / 270mA DC. Substitution is valid only for applications with current requirements within D4N specifications.

Q: What are the key electrical differences between GLLC01D and D4N substitutes?

A: The GLLC01D is SPDT (Single Pole Double Throw) with 10A rating. D4N substitutes are DPST-NO/NC (Double Pole Single Throw Normally Open/Normally Closed) with 3A AC rating. Circuit configuration and current capacity differ between the main part and substitutes.

Q: Are the mechanical dimensions compatible between GLLC01D and D4N series?

A: Both feature chassis mount with screw terminal termination and lever/roller actuators. However, operating position differs: GLLC01D operates at 0.630" (16.0mm); D4N series operates at 1.457" (37.0mm). Mechanical envelope and mounting clearances must be verified for specific applications.

Q: Which D4N substitute part should be selected?

A: D4N-1162, D4N-2A62, D4N-4162, and D4N-4A62 are functionally equivalent. Selection between these variants depends on specific application requirements and availability. D4N-1162, D4N-4162, and D4N-4A62 carry ROHS3 compliance; D4N-2A62 carries "Not applicable" RoHS status.

Q: What is the temperature operating range difference?

A: GLLC01D operates from -10°C to 80°C. D4N series operates from -30°C to 70°C. Applications requiring operation above 70°C or below -10°C must be evaluated against the specific temperature range of the selected part.

Q: Do the substitute parts provide better environmental protection?

A: Yes. GLLC01D provides IP66 (dust tight, water resistant). D4N series provides IP67 (dust tight, waterproof). D4N series offers enhanced moisture resistance suitable for applications requiring waterproof operation.

Q: What is the mechanical life difference?

A: GLLC01D provides 5,000,000 cycle mechanical life. D4N series provides 15,000,000 cycle mechanical life. D4N series demonstrates extended durability for high-cycle applications.

Q: Are all substitute parts in active product status?

A: Yes. GLLC01D and all D4N series substitutes (D4N-1162, D4N-2A62, D4N-4162, D4N-4A62) maintain active product status with current manufacturing availability.
