GLBD02C Snap Action Switch - Equivalent & Substitute Parts

Part Overview

The GLBD02C is a snap action switch manufactured by Honeywell Sensing and Productivity Solutions, classified as an SPDT (Single Pole Double Throw) chassis mount switch with a roller plunger actuator. This component is rated for 6A AC at 120V and 550mA DC at 125V, featuring IP67 ingress protection suitable for dust-tight and waterproof applications.

The GLBD02C is currently listed as obsolete. Identifying equivalent substitute parts is necessary to maintain design continuity, ensure supply chain availability, and support ongoing production or maintenance requirements for systems utilizing this switch configuration.

Substiute Parts

GLBD02C

Honeywell Sensing and Productivity SolutionsIn Stock: 1045GLBD02C Datasheet

Current PartRFQ

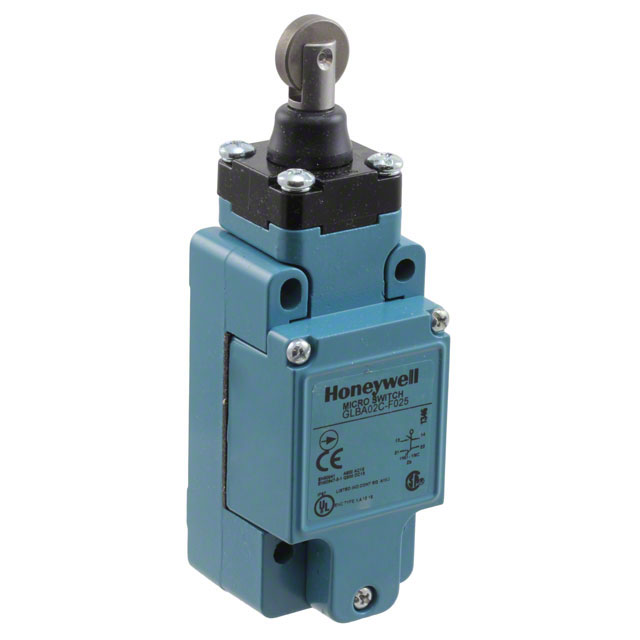

GLBA02C-F025

Honeywell Sensing and Productivity SolutionsIn Stock: 1129GLBA02C-F025 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the GLBD02C is determined by strict equivalence across the following critical parameters:

Electrical Equivalence Requirements:

• Circuit configuration must be SPDT
• Switch function must be On-Momentary
• Current rating must support minimum 6A AC and 550mA DC
• Voltage ratings must meet or exceed 120V AC and 125V DC

Mechanical Equivalence Requirements:

• Actuator type must be roller plunger
• Mounting type must be chassis mount
• Termination style must be plug in
• Operating force must be 1632gf
• Operating position must be 1.890" (48.0mm)
• Pretravel must be 0.100" (2.5mm)
• Differential travel must be 0.035" (0.9mm)
• Overtravel must be 0.180" (4.6mm)

Environmental and Compliance Requirements:

• Ingress protection must be IP67 or equivalent
• Operating temperature range must encompass -25°C to 85°C
• Mechanical life must be 15,000,000 cycles or greater
• RoHS compliance status must be maintained
• Moisture sensitivity level must be MSL 1

The GLBA02C-F025 meets all specified parameters and qualifies as a direct substitute for the obsolete GLBD02C.

Parameter Comparison

Engineering Selection Recommendations

The GLBA02C-F025 is the qualified substitute for the obsolete GLBD02C based on the following engineering criteria:

Product Status Alignment: The GLBA02C-F025 maintains active product status with Honeywell Sensing and Productivity Solutions, ensuring continued availability and manufacturer support. The GLBD02C is obsolete, making the GLBA02C-F025 the appropriate replacement for new designs and ongoing supply requirements.

Electrical and Mechanical Equivalence: All electrical parameters, mechanical dimensions, and operational characteristics are identical between the two parts. The GLBA02C-F025 operates within the same current, voltage, temperature, and mechanical life specifications as the GLBD02C.

Compliance and Certification: Both parts maintain RoHS compliance and MSL 1 moisture sensitivity rating. The GLBA02C-F025 carries ECCN EAR99 classification and HTSUS code 8536.50.9055, confirming regulatory alignment for industrial switch applications.

Supply Chain Continuity: Current inventory of 1,107 pieces for the GLBA02C-F025 provides immediate availability for production and maintenance applications, addressing the supply constraints associated with the obsolete GLBD02C.

Frequently Asked Questions (FAQ)

Q: Can the GLBA02C-F025 be used as a direct replacement for the GLBD02C in existing assemblies?

A: Yes. The GLBA02C-F025 is electrically and mechanically equivalent to the GLBD02C across all specified parameters. Identical circuit configuration (SPDT), current ratings (6A AC, 550mA DC), voltage ratings (120V AC, 125V DC), actuator type (roller plunger), mounting type (chassis mount), and termination style (plug in) confirm direct substitutability. No design modifications are required.

Q: What is the primary difference between the GLBD02C and GLBA02C-F025?

A: The primary difference is product status. The GLBD02C is obsolete, while the GLBA02C-F025 is active. Both parts are manufactured by Honeywell Sensing and Productivity Solutions within the GLS series and share identical electrical and mechanical specifications. The GLBA02C-F025 represents the current production equivalent.

Q: Are there any compatibility concerns with chassis mount installation?

A: No. Both parts feature identical chassis mount configuration with plug-in termination style. Physical dimensions, operating force (1632gf), operating position (1.890" / 48.0mm), pretravel (0.100" / 2.5mm), differential travel (0.035" / 0.9mm), and overtravel (0.180" / 4.6mm) are identical, ensuring seamless installation compatibility.

Q: Do both parts meet the same environmental and compliance standards?

A: Yes. Both the GLBD02C and GLBA02C-F025 are rated for IP67 ingress protection (dust-tight, waterproof), operate across -25°C to 85°C, support 15,000,000 mechanical cycles, maintain RoHS compliance, and carry MSL 1 moisture sensitivity rating. Environmental performance and regulatory compliance are equivalent.

Q: Is the GLBA02C-F025 available for immediate procurement?

A: Yes. The GLBA02C-F025 has current inventory of 1,107 pieces listed as new original stock, providing immediate availability for production and replacement applications.
