GF-323-0101 Equivalent & Substitute Parts

Part Overview

The GF-323-0101 is a slide switch SPST panel mount component manufactured by CW Industries. This switch is rated for 3A AC at 125V and 500mA DC at 125V, with a standard actuator and solder lug termination. The product is currently active and ROHS3 compliant. Equivalent and substitute parts are identified when component availability is limited, supply chain disruptions occur, or inventory requirements necessitate alternative sourcing from the same manufacturer series.

Substiute Parts

GF-323-0101

CW IndustriesIn Stock: 1149GF-323-0101 Datasheet

Current PartRFQ

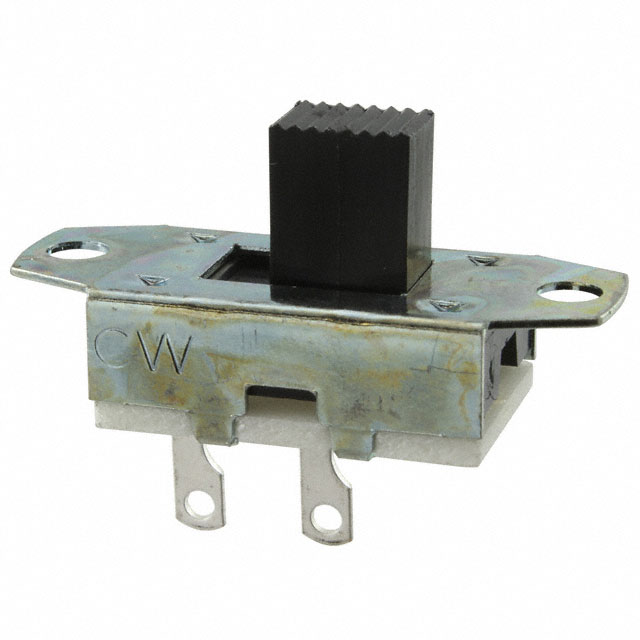

GF-323-0000

CW IndustriesIn Stock: 1369GF-323-0000 Datasheet

SimilarRFQ

Key Parameters

Substitute Part Grouping Explanation

The GF-323-0101 has one identified substitute within the CW Industries GF series: GF-323-0000. Substitution eligibility is determined by strict equivalence across the following critical parameters:

• Circuit configuration (SPST)
• Switch function (On-Off)
• Current ratings (3A AC, 500mA DC)
• Voltage ratings (125V AC and DC)
• Mounting type (Panel Mount)
• Termination style (Solder Lug)
• Contact material and finish (Copper with Silver finish)
• Actuator material (Polyamide PA66, Nylon 6/6)
• Operating temperature range (-10°C to 104°C)
• Mechanical and electrical life ratings (10,000 and 6,000 cycles respectively)
• Compliance certifications (ROHS3, REACH Unaffected)

The GF-323-0000 meets all these criteria and is therefore classified as a direct substitute. Minor variations in switch travel (3.89mm versus 4.01mm) remain within acceptable mechanical tolerances for panel mount SPST switches and do not affect functional equivalence.

Parameter Comparison

Engineering Selection Recommendations

Both the GF-323-0101 and GF-323-0000 are active products from CW Industries with identical electrical and mechanical specifications. Both components are ROHS3 compliant and REACH unaffected, meeting current regulatory requirements for electronic component manufacturing and distribution. Selection between these parts should be based on inventory availability and lead time requirements, as they are functionally equivalent for all specified applications. The minor difference in switch travel (0.12mm) does not impact functional performance or circuit compatibility.

Frequently Asked Questions (FAQ)

Q: Can GF-323-0000 be used as a direct replacement for GF-323-0101?

A: Yes. Both parts are SPST panel mount slide switches with identical electrical ratings (3A AC, 500mA DC at 125V), contact materials, termination styles, and compliance certifications. The switch travel difference of 0.12mm is within acceptable mechanical tolerances for this component category.

Q: Are there any differences in solder lug termination between these parts?

A: No. Both parts use identical solder lug termination styles and are compatible with the same PCB footprints and assembly processes.

Q: Do both parts meet the same environmental and compliance standards?

A: Yes. Both GF-323-0101 and GF-323-0000 are ROHS3 compliant, REACH unaffected, and rated for the same operating temperature range of -10°C to 104°C with MSL 1 (unlimited moisture sensitivity level).

Q: What is the significance of the switch travel difference?

A: The switch travel difference of 0.12mm (3.89mm versus 4.01mm) represents a minor mechanical variation within the GF series design tolerance. This does not affect the functional performance, electrical characteristics, or panel mount compatibility of either part.

Q: Are inventory levels a consideration for part selection?

A: Yes. Current inventory shows 1105 units of GF-323-0101 and 1285 units of GF-323-0000 in stock. Selection may be influenced by project timeline and quantity requirements.
