GF-220U Line Filter Equivalent & Substitute Parts

Part Overview

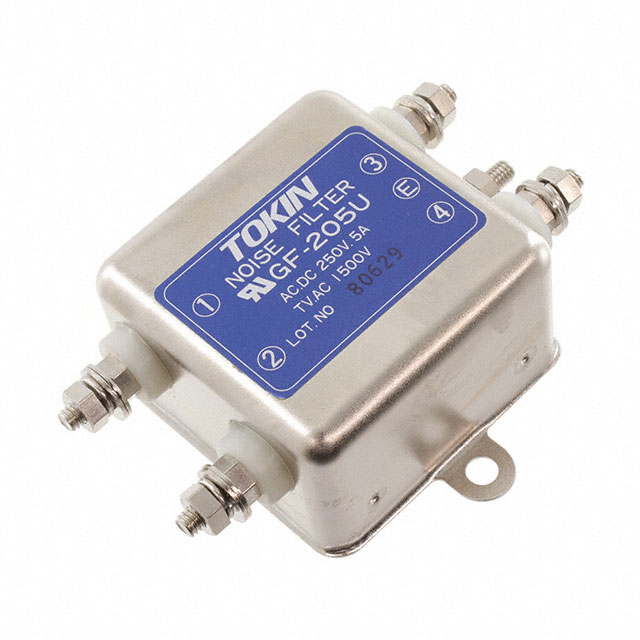

The GF-220U is a single-phase EMC/EMI line filter manufactured by KEMET, rated for 250VAC/250VDC at 20A with chassis mount configuration and threaded post (M4) termination. This component is classified as Last Time Buy, indicating discontinued production status. Identification of equivalent substitute parts is necessary to ensure continued availability for new designs and maintenance applications requiring compatible filtering performance and electrical ratings.

Substiute Parts

GF-220U

KEMETIn Stock: 867GF-220U Datasheet

Current PartRFQ

GTX-2200-Y03

KEMETIn Stock: 795GTX-2200-Y03 Datasheet

MFR RecommendedRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution of the GF-220U is based on electrical and mechanical parameter compatibility within the single-phase EMC/EMI line filter category. The substitute part GTX-2200-Y03 maintains the following critical parameters:

Maintained Parameters:

• Filter Type: Single Phase
• Configuration: Single Stage
• Voltage - Rated AC: 250V
• Current Rating: 20A
• Mounting Type: Chassis Mount
• RoHS Status: ROHS3 Compliant

Modified Parameters:

• Voltage - Rated DC: Increased from 250V to 560V (higher rating, backward compatible)
• Termination Style: Changed from Threaded Post (M4) to Terminal Block (requires connection redesign)
• Frequency - Operating: Specified as 50/60Hz (GF-220U unspecified)
• Approval Agency: Expanded from UL to cUL, TUV, UL (enhanced certifications)
• Operating Temperature: Adjusted to -25°C ~ 55°C (slightly different range)

The GTX-2200-Y03 provides equivalent filtering performance with enhanced voltage rating and broader regulatory approvals. Termination style change requires mechanical redesign of connection interface.

Parameter Comparison

Engineering Selection Recommendations

For Direct Substitution:

The GTX-2200-Y03 serves as the manufacturer-recommended substitute for the GF-220U. Both components are KEMET single-phase EMC/EMI line filters with identical AC voltage rating (250V), current capacity (20A), and chassis mount configuration. The GTX-2200-Y03 provides enhanced DC voltage rating (560V versus 250V), making it suitable for applications previously served by the GF-220U.

Regulatory Compliance:

The GTX-2200-Y03 maintains ROHS3 compliance and expands regulatory approvals to include cUL and TUV certifications in addition to UL. This enhanced certification profile supports broader market applications.

Connection Interface Consideration:

The primary design change between these components is termination style: GF-220U uses threaded post (M4) connection, while GTX-2200-Y03 uses terminal block connection. Circuit board or wiring harness redesign is required to accommodate this change.

Inventory Status:

GF-220U is Last Time Buy with 779 units in stock. GTX-2200-Y03 is Active status with 706 units in stock, ensuring continued availability for future procurement.

Frequently Asked Questions (FAQ)

Q: Can GTX-2200-Y03 replace GF-220U in existing designs without modification?

A: Electrical substitution is direct for 250VAC/20A applications. However, the termination style change from threaded post (M4) to terminal block requires connection interface redesign. Mechanical mounting remains compatible as both use chassis mount configuration.

Q: What is the significance of the increased DC voltage rating (560V vs 250V) on GTX-2200-Y03?

A: The higher DC rating provides design margin and compatibility with a broader range of applications. For circuits designed for 250VDC operation, the 560V rating presents no compatibility issues and may improve component longevity under transient conditions.

Q: Are there frequency differences between these components?

A: GF-220U does not specify operating frequency. GTX-2200-Y03 is rated for 50/60Hz operation. Both are suitable for standard industrial and commercial power distribution applications operating at these frequencies.

Q: How do the operating temperature ranges compare?

A: GF-220U operates from -20°C to 60°C; GTX-2200-Y03 operates from -25°C to 55°C. The ranges overlap substantially. For applications within -20°C to 55°C, both components are suitable. Applications below -20°C or above 55°C require component-specific evaluation.

Q: What certifications does GTX-2200-Y03 provide beyond GF-220U?

A: GTX-2200-Y03 includes cUL and TUV certifications in addition to UL. These additional certifications support compliance requirements in Canadian and European markets.

Q: Why is GF-220U classified as Last Time Buy?

A: Last Time Buy status indicates KEMET has discontinued production of this model. GTX-2200-Y03 represents the active replacement in the product line, ensuring continued availability and support for new designs.
