G7L-2A-P-80-CB DC12 Equivalent & Substitute Parts

Part Overview

The G7L-2A-P-80-CB DC12 is a general purpose relay manufactured by Omron Electronics Inc-EMC Div. This DPST-NO (2 Form A) relay operates at 12VDC with a 20A contact rating and 250VAC maximum switching voltage. The part is actively produced and maintained in inventory, with 1112 units currently in stock. Substitute parts are identified when equivalent electrical and mechanical parameters are required for circuit design flexibility, inventory management, or supply chain continuity.

Substiute Parts

G7L-2A-P-80-CB DC12

Omron Electronics Inc-EMC DivIn Stock: 1181G7L-2A-P-80-CB DC12 Datasheet

Current PartRFQ

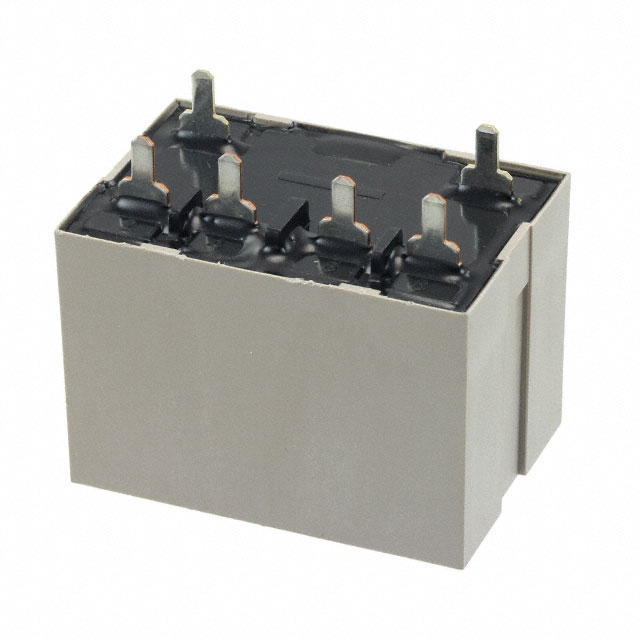

G7L-2A-P-CB-DC12

Omron Electronics Inc-EMC DivIn Stock: 990G7L-2A-P-CB-DC12 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the G7L-2A-P-80-CB DC12 are identified based on strict parametric equivalence. The following electrical and mechanical parameters must match exactly to qualify as a direct substitute:

• Coil Voltage: 12VDC
• Contact Form: DPST-NO (2 Form A)
• Contact Rating (Current): 20 A
• Switching Voltage: 250VAC - Max
• Mounting Type: Through Hole
• Termination Style: PC Pin
• Coil Resistance: 75 Ohms
• Coil Current: 158 mA
• Operating Temperature Range: -25°C ~ 60°C
• Contact Material: Silver Tin Indium (AgSnIn)

Parts meeting all these criteria are classified as parametric equivalents and may be used interchangeably in circuit applications where the G7L-2A-P-80-CB DC12 is specified.

Parameter Comparison

Engineering Selection Recommendations

Both the G7L-2A-P-80-CB DC12 and G7L-2A-P-CB-DC12 are active products from Omron Electronics Inc-EMC Div with identical electrical and mechanical specifications. Both parts are ROHS3 compliant and REACH unaffected, meeting current environmental and regulatory requirements. Selection between these parts may be based on inventory availability, lead time, or procurement source. The G7L-2A-P-80-CB DC12 currently has 1112 units in stock, while the G7L-2A-P-CB-DC12 has 931 units available. Either part is suitable for applications requiring a 12VDC DPST-NO general purpose relay with 20A contact rating and 250VAC maximum switching voltage.

Frequently Asked Questions (FAQ)

Q: Can G7L-2A-P-CB-DC12 be used as a direct replacement for G7L-2A-P-80-CB DC12?

A: Yes. Both parts share identical electrical and mechanical parameters, including coil voltage, contact form, current rating, switching voltage, mounting type, and termination style. They are parametric equivalents and may be used interchangeably.

Q: What are the key parameters that determine substitutability for this relay?

A: Substitutability is determined by matching coil voltage (12VDC), contact form (DPST-NO), current rating (20A), switching voltage (250VAC max), mounting type (Through Hole), termination style (PC Pin), coil resistance (75 Ohms), and operating temperature range (-25°C ~ 60°C).

Q: Are there any differences in packaging or physical dimensions between these parts?

A: Both parts use bulk packaging and through-hole mounting. No dimensional or packaging differences are specified in the provided parameters.

Q: Do both parts meet the same compliance standards?

A: Yes. Both the G7L-2A-P-80-CB DC12 and G7L-2A-P-CB-DC12 are ROHS3 compliant and REACH unaffected.

Q: Which part should be selected based on availability?

A: Selection may be based on current inventory levels. The G7L-2A-P-80-CB DC12 has 1112 units in stock, while the G7L-2A-P-CB-DC12 has 931 units available. Both are active products with ongoing supply.
