G2RL-2-CF DC5 Equivalent & Substitute Parts

Part Overview

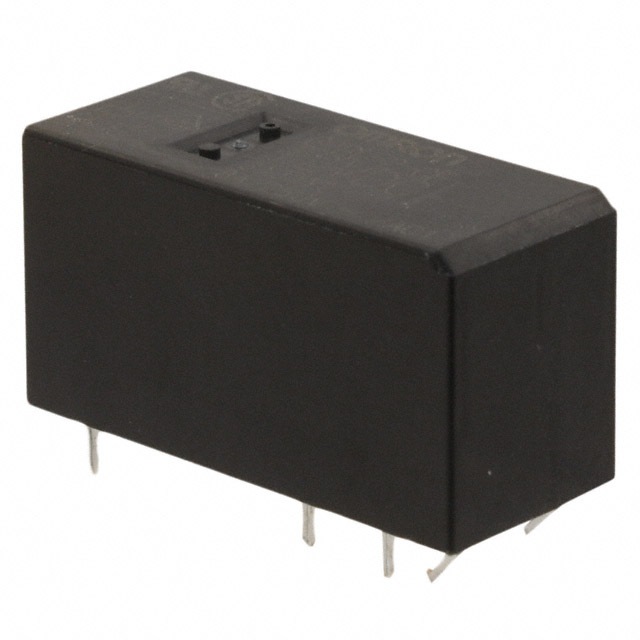

The G2RL-2-CF DC5 is a general purpose relay manufactured by Omron Electronics Inc-EMC Div, featuring a DPDT (2 Form C) contact configuration with 8A contact rating and 5VDC coil voltage. This component is classified as obsolete, making identification of active equivalent parts essential for ongoing production and maintenance applications. Substitute parts must maintain identical electrical and mechanical specifications to ensure direct compatibility in existing circuit designs.

Key Parameters

Parameter	Value
Coil Voltage	5VDC
Contact Form	DPDT (2 Form C)
Contact Rating (Current)	8 A
Switching Voltage	440VAC, 300VDC - Max
Coil Current	80 mA
Mounting Type	Through Hole
Termination Style	PC Pin
Operating Temperature Range	-40°C ~ 85°C
Contact Material	Silver Alloy, Cadmium Free
Coil Resistance	62.5 Ohms

Substitute Part Grouping Explanation

Substitute parts for the G2RL-2-CF DC5 are identified based on strict parametric equivalence across the following critical specifications:

Coil voltage: 5VDC (exact match required)
Contact configuration: DPDT (2 Form C) (exact match required)
Contact current rating: 8 A (exact match required)
Switching voltage capability: 440VAC, 300VDC - Max (exact match required)
Coil current: 80 mA (exact match required)
Mounting type: Through Hole (exact match required)
Termination style: PC Pin (exact match required)
Operating temperature range: -40°C ~ 85°C (exact match required)
Contact material: Silver Alloy, Cadmium Free (exact match required)
Coil resistance: 62.5 Ohms (exact match required)

All identified substitutes maintain these parameters without deviation. Differences in product status, packaging format, and compliance certifications do not affect electrical or mechanical interchangeability.

Parameter Comparison

Parameter	G2RL-2-CF DC5	G2RL-2 DC5	G2RL-2-HA DC5
Manufacturer	Omron Electronics Inc-EMC Div	Omron Electronics Inc-EMC Div	Omron Electronics Inc-EMC Div
Series	G2RL	G2RL	G2RL
Coil Voltage	5VDC	5VDC	5VDC
Contact Form	DPDT (2 Form C)	DPDT (2 Form C)	DPDT (2 Form C)
Contact Rating (Current)	8 A	8 A	8 A
Switching Voltage	440VAC, 300VDC - Max	440VAC, 300VDC - Max	440VAC, 300VDC - Max
Coil Current	80 mA	80 mA	80 mA
Coil Type	Non Latching	Non Latching	Non Latching
Mounting Type	Through Hole	Through Hole	Through Hole
Termination Style	PC Pin	PC Pin	PC Pin
Seal Rating	Sealed - Flux Protection	Sealed - Flux Protection	Sealed - Flux Protection
Coil Insulation	Class F	Class F	Class F
Must Operate Voltage	4.6 VDC	4.6 VDC	4.6 VDC
Must Release Voltage	0.5 VDC	0.5 VDC	0.5 VDC
Operate Time	15 ms	15 ms	15 ms
Release Time	5 ms	5 ms	5 ms
Operating Temperature	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C
Contact Material	Silver Alloy, Cadmium Free	Silver Alloy, Cadmium Free	Silver Alloy, Cadmium Free
Relay Type	General Purpose	General Purpose	General Purpose
Coil Resistance	62.5 Ohms	62.5 Ohms	62.5 Ohms
Product Status	Obsolete	Active	Active
Packaging	-	Tube	Tube
RoHS Status	Not specified	ROHS3 Compliant	RoHS Compliant
REACH Status	REACH Unaffected	REACH Unaffected	Vendor Undefined

Engineering Selection Recommendations

Both G2RL-2 DC5 and G2RL-2-HA DC5 are direct parametric equivalents to the obsolete G2RL-2-CF DC5. Selection between active substitutes should be based on the following criteria:

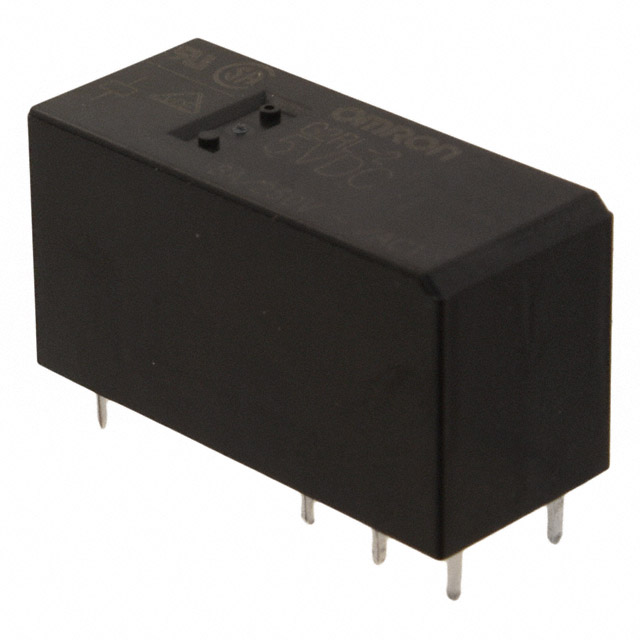

G2RL-2 DC5 is recommended for applications requiring ROHS3 compliance certification and confirmed REACH unaffected status. This part maintains active product status with established supply chain availability.

G2RL-2-HA DC5 is suitable for applications where RoHS compliance and CQC, CSA, UR, VDE approval agencies are specified requirements. This part carries MSL rating of 1 (Unlimited), indicating no moisture sensitivity constraints during storage and handling.

Both substitutes are electrically and mechanically interchangeable with the original G2RL-2-CF DC5 across all specified parameters. Selection should be driven by compliance documentation requirements and supply chain considerations specific to the application.

Frequently Asked Questions (FAQ)

Q: Can G2RL-2 DC5 and G2RL-2-HA DC5 be used interchangeably with G2RL-2-CF DC5?

A: Yes. Both parts maintain identical electrical specifications including coil voltage, contact configuration, current rating, switching voltage, and timing characteristics. Mechanical compatibility is confirmed through matching mounting type and termination style.

Q: What is the primary reason for substitution?

A: The G2RL-2-CF DC5 is classified as obsolete. The G2RL-2 DC5 and G2RL-2-HA DC5 are active products from the same manufacturer and series, ensuring continued availability and supply chain support.

Q: Are there packaging differences between the main part and substitutes?

A: The G2RL-2-CF DC5 packaging is not specified in available documentation. Both G2RL-2 DC5 and G2RL-2-HA DC5 are supplied in Tube packaging. Packaging format does not affect electrical or mechanical performance.

Q: What compliance differences exist between the substitutes?

A: G2RL-2 DC5 carries ROHS3 Compliant and REACH Unaffected certifications. G2RL-2-HA DC5 carries RoHS Compliant certification with CQC, CSA, UR, and VDE approval agencies listed. REACH status for G2RL-2-HA DC5 is vendor undefined. Selection should align with specific compliance requirements of the application.

Q: Are there inventory considerations for part selection?

A: G2RL-2 DC5 has 2400 pcs in stock. G2RL-2-HA DC5 has 2804 pcs in stock. Both maintain active inventory status suitable for production applications.

Q: Does moisture sensitivity affect component handling?

A: G2RL-2-CF DC5 and G2RL-2 DC5 have MSL rating not applicable. G2RL-2-HA DC5 carries MSL 1 (Unlimited), indicating no moisture sensitivity constraints. This does not affect interchangeability but may influence storage and handling procedures based on facility requirements.
