G2RL-1-CF DC5 Equivalent & Substitute Parts

Part Overview

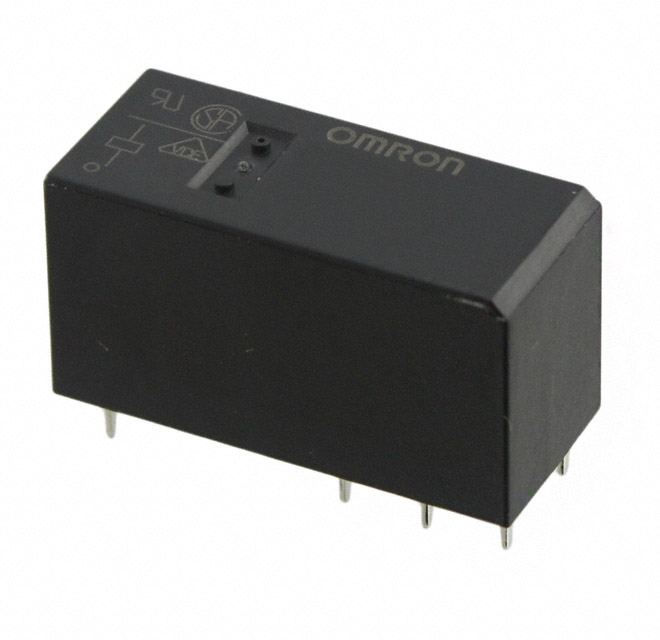

The G2RL-1-CF DC5 is a general purpose relay manufactured by Omron Electronics Inc-EMC Div, featuring a single pole double throw (SPDT) contact configuration with a 5VDC coil. This through-hole mounted relay is rated for 12A switching capacity and is sealed for flux protection. The G2RL-1-CF DC5 is currently classified as obsolete. Identifying equivalent substitute parts is necessary to maintain design continuity and ensure component availability for new production runs, repairs, and system upgrades where this relay specification remains functionally required.

Key Parameters

Parameter	Value
Coil Voltage	5VDC
Contact Form	SPDT (1 Form C)
Contact Rating (Current)	12 A
Switching Voltage	440VAC, 300VDC - Max
Coil Current	80 mA
Mounting Type	Through Hole
Termination Style	PC Pin
Operating Temperature Range	-40°C ~ 85°C
Coil Resistance	62.5 Ohms
Contact Material	Silver Alloy, Cadmium Free

Substitute Part Grouping Explanation

Substitute parts for the G2RL-1-CF DC5 are identified based on strict parametric equivalence within the G2RL series. The following electrical and mechanical parameters must match identically for substitution validity:

Coil voltage: 5VDC
Contact form: SPDT (1 Form C)
Contact rating: 12 A
Switching voltage: 440VAC, 300VDC - Max
Coil current: 80 mA
Mounting type: Through hole
Termination style: PC Pin
Operating temperature range: -40°C ~ 85°C
Coil resistance: 62.5 Ohms
Contact material: Silver Alloy, Cadmium Free

The G2RL-1 DC5 and G2RL-1-HA DC5 meet all these criteria and are therefore direct parametric equivalents. Both substitute parts are manufactured by Omron Electronics Inc-EMC Div within the same G2RL series.

Parameter Comparison

Parameter	G2RL-1-CF DC5 (Main)	G2RL-1 DC5	G2RL-1-HA DC5
Coil Voltage	5VDC	5VDC	5VDC
Contact Form	SPDT (1 Form C)	SPDT (1 Form C)	SPDT (1 Form C)
Contact Rating (Current)	12 A	12 A	12 A
Switching Voltage	440VAC, 300VDC - Max	440VAC, 300VDC - Max	440VAC, 300VDC - Max
Coil Current	80 mA	80 mA	80 mA
Mounting Type	Through Hole	Through Hole	Through Hole
Termination Style	PC Pin	PC Pin	PC Pin
Operating Temperature Range	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C
Coil Resistance	62.5 Ohms	62.5 Ohms	62.5 Ohms
Contact Material	Silver Alloy, Cadmium Free	Silver Alloy, Cadmium Free	Silver Alloy, Cadmium Free
Seal Rating	Sealed - Flux Protection	Sealed - Flux Protection	Sealed - Flux Protection
Coil Insulation	Class F	Class F	Class F
Must Operate Voltage	4.6 VDC	4.6 VDC	4.6 VDC
Must Release Voltage	0.5 VDC	0.5 VDC	0.5 VDC
Operate Time	15 ms	15 ms	15 ms
Release Time	5 ms	5 ms	5 ms
Product Status	Obsolete	Active	Active
RoHS Status	Not specified	ROHS3 Compliant	ROHS3 Compliant
REACH Status	REACH Unaffected	REACH Unaffected	REACH Unaffected

Engineering Selection Recommendations

Both G2RL-1 DC5 and G2RL-1-HA DC5 are direct parametric equivalents to the obsolete G2RL-1-CF DC5. Selection between these two active alternatives should be based on the following factors:

G2RL-1 DC5 is the primary substitute option. It maintains active product status with full availability and is ROHS3 compliant. This part is packaged in tube format and represents the standard continuation within the G2RL series.

G2RL-1-HA DC5 is an alternative equivalent with identical electrical and mechanical specifications. This variant includes additional approval certifications (CQC, CSA, UR, VDE) and carries a moisture sensitivity level rating of 1 (Unlimited), providing enhanced environmental handling flexibility. This part is also ROHS3 compliant and packaged in tube format.

Both substitute parts are manufactured by Omron Electronics Inc-EMC Div and carry identical ECCN (EAR99) and HTSUS (8536.41.0050) classifications. Selection may be determined by specific regulatory requirements, approval agency certifications needed for the application, or inventory availability.

Frequently Asked Questions (FAQ)

Q: Can G2RL-1 DC5 or G2RL-1-HA DC5 be used as direct replacements for G2RL-1-CF DC5?

A: Yes. Both parts are parametric equivalents with identical coil voltage (5VDC), contact configuration (SPDT), current rating (12A), switching voltage (440VAC/300VDC), and all other critical electrical and mechanical specifications. They are pin-compatible through-hole mounted relays within the same G2RL series.

Q: What is the difference between G2RL-1 DC5 and G2RL-1-HA DC5?

A: Both parts are electrically and mechanically identical. The G2RL-1-HA DC5 includes additional approval agency certifications (CQC, CSA, UR, VDE) and has a moisture sensitivity level rating of 1 (Unlimited), whereas the G2RL-1 DC5 does not specify a moisture sensitivity level. Both are ROHS3 compliant and active products.

Q: Why is the G2RL-1-CF DC5 listed as obsolete?

A: The G2RL-1-CF DC5 has been discontinued by Omron Electronics Inc-EMC Div. The G2RL-1 DC5 and G2RL-1-HA DC5 are the active product continuations that provide identical functionality and specifications.

Q: Are there any packaging differences between these parts?

A: The G2RL-1-CF DC5 packaging is not specified in the available data. Both substitute parts (G2RL-1 DC5 and G2RL-1-HA DC5) are supplied in tube packaging. Verify packaging requirements for your specific application needs.

Q: Do these relays meet RoHS compliance requirements?

A: The G2RL-1 DC5 and G2RL-1-HA DC5 are both ROHS3 compliant. The G2RL-1-CF DC5 RoHS status is not specified. Both substitute parts meet current RoHS3 standards and are REACH unaffected.
