Equivalent & Substitute Parts for G2RL-1-CF DC12

Part Overview

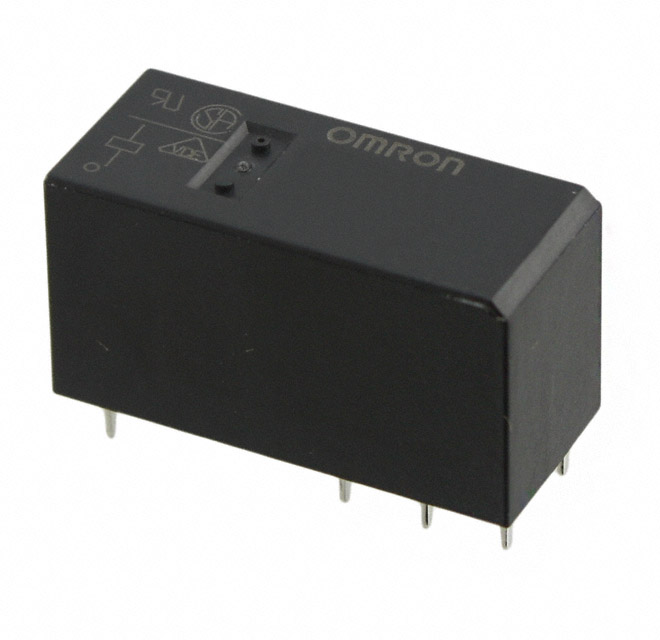

The G2RL-1-CF DC12 is a general purpose relay manufactured by Omron Electronics Inc-EMC Div, featuring SPDT (1 Form C) contact configuration with 12VDC coil voltage and 12A contact rating. This through-hole mounted relay is designed for general industrial switching applications with sealed flux protection and silver alloy cadmium-free contacts.

The G2RL-1-CF DC12 is classified as obsolete. Identifying equivalent substitute parts ensures design continuity and maintains supply chain reliability for applications currently utilizing this component.

Substiute Parts

G2RL-1-CF DC12

Omron Electronics Inc-EMC DivIn Stock: 873G2RL-1-CF DC12 Datasheet

Current PartRFQ

G2RL-1 DC12

Omron Electronics Inc-EMC DivIn Stock: 4331G2RL-1 DC12 Datasheet

Parametric EquivalentRFQ

G2RL-1-HA DC12

Omron Electronics Inc-EMC DivIn Stock: 1409G2RL-1-HA DC12 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitute parts for the G2RL-1-CF DC12 are identified based on electrical and mechanical parameter equivalence within the G2RL series. The following parameters define substitution eligibility:

• Coil voltage: 12VDC
• Contact form: SPDT (1 Form C)
• Contact rating: 12 A
• Switching voltage: 440VAC, 300VDC - Max
• Mounting type: Through Hole
• Coil current: 33.3 mA
• Coil resistance: 360 Ohms
• Operating temperature range: -40°C ~ 85°C
• Contact material: Silver Alloy, Cadmium Free
• Seal rating: Sealed - Flux Protection

All identified substitutes maintain identical electrical performance characteristics and mechanical compatibility with the original G2RL-1-CF DC12 specification.

Parameter Comparison

Engineering Selection Recommendations

Both G2RL-1 DC12 and G2RL-1-HA DC12 are active product alternatives to the obsolete G2RL-1-CF DC12, with identical electrical and mechanical specifications.

G2RL-1 DC12 is RoHS Compliant and maintains standard MSL classification. This part provides direct functional equivalence with current availability and regulatory compliance.

G2RL-1-HA DC12 is ROHS3 Compliant with enhanced moisture sensitivity rating (MSL 1 - Unlimited) and includes additional approval agencies (CQC, CSA, UR, VDE). This variant offers extended environmental protection and broader international certifications.

Selection between these substitutes depends on regulatory requirements, environmental exposure conditions, and certification needs for the target application. Both parts are electrically and mechanically interchangeable with the original G2RL-1-CF DC12.

Frequently Asked Questions (FAQ)

Q: Can G2RL-1 DC12 and G2RL-1-HA DC12 be used interchangeably with G2RL-1-CF DC12?

A: Yes. Both substitute parts maintain identical coil voltage (12VDC), contact form (SPDT), contact rating (12A), switching voltage (440VAC/300VDC), mounting type (Through Hole), and all timing specifications. Electrical and mechanical compatibility is complete.

Q: What is the primary difference between G2RL-1 DC12 and G2RL-1-HA DC12?

A: Both parts are electrically equivalent. G2RL-1-HA DC12 provides ROHS3 compliance versus RoHS compliance, MSL 1 (Unlimited) rating for enhanced moisture protection, and additional international certifications (CQC, CSA, UR, VDE).

Q: Why is the original G2RL-1-CF DC12 marked as obsolete?

A: Product obsolescence indicates the part is no longer manufactured. The active substitutes G2RL-1 DC12 and G2RL-1-HA DC12 provide continued availability within the same G2RL series with equivalent performance.

Q: Are there packaging differences between these parts?

A: G2RL-1 DC12 and G2RL-1-HA DC12 are supplied in Tube packaging. Original packaging specification for G2RL-1-CF DC12 is not detailed in available data.

Q: Do these relays meet current environmental and compliance standards?

A: G2RL-1 DC12 is RoHS Compliant. G2RL-1-HA DC12 is ROHS3 Compliant with broader international certifications. Both are REACH Unaffected and classified as EAR99 for export control purposes.
