G2RL-1A-CF DC48 Equivalent & Substitute Parts

Part Overview

The G2RL-1A-CF DC48 is a general purpose relay manufactured by Omron Electronics Inc-EMC Div, configured as a single-pole single-throw normally open (SPST-NO) contact form with a 48VDC coil. This through-hole mounted relay is designed for applications requiring 12A contact rating at switching voltages up to 440VAC or 300VDC maximum. The part is currently listed as obsolete, making identification of equivalent and substitute components essential for design continuity and procurement planning.

Substiute Parts

G2RL-1A-CF DC48

Omron Electronics Inc-EMC DivIn Stock: 883G2RL-1A-CF DC48 Datasheet

Current PartRFQ

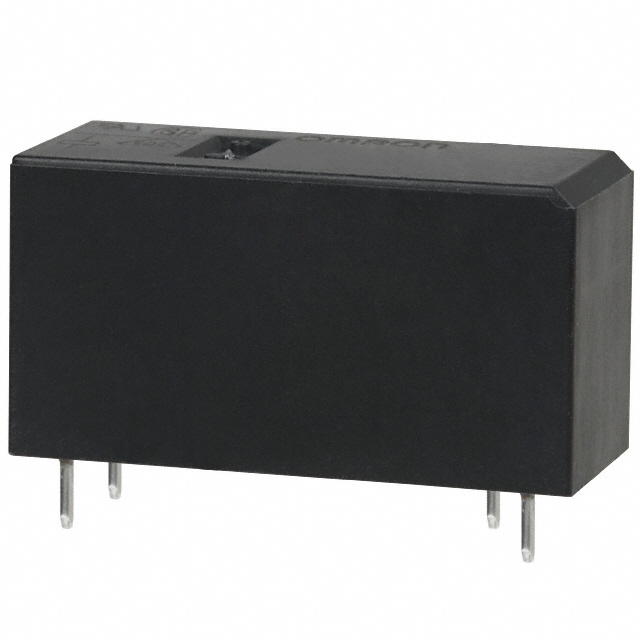

G2RL-1A DC48

Omron Electronics Inc-EMC DivIn Stock: 748G2RL-1A DC48 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution for the G2RL-1A-CF DC48 is determined by strict equivalence across the following critical parameters:

• Coil voltage specification (48VDC)
• Contact form configuration (SPST-NO)
• Contact current rating (12 A minimum)
• Maximum switching voltage capability (440VAC, 300VDC)
• Mounting type (Through Hole)
• Termination style (PC Pin)
• Operating temperature range (-40°C ~ 85°C)
• Coil current draw (9 mA)
• Coil resistance (5.36 kOhms)

The G2RL-1A DC48 meets all substitution criteria as a parametric equivalent. This part maintains identical electrical and mechanical specifications while differing only in packaging format and product status classification.

Parameter Comparison

Engineering Selection Recommendations

The G2RL-1A DC48 is the direct parametric equivalent for the obsolete G2RL-1A-CF DC48. Both parts are manufactured by Omron Electronics Inc-EMC Div and share identical electrical and mechanical specifications. The substitute part carries Active product status, ensuring continued availability and supply chain reliability. The G2RL-1A DC48 is packaged in Tube format and maintains RoHS Compliance certification, meeting modern regulatory requirements. Selection of the G2RL-1A DC48 provides functional equivalence with improved procurement viability for new designs or production continuity.

Frequently Asked Questions (FAQ)

Q: Can the G2RL-1A DC48 be used as a direct replacement for the G2RL-1A-CF DC48?

A: Yes. Both parts are parametrically equivalent with identical coil voltage (48VDC), contact form (SPST-NO), current rating (12 A), switching voltage capability (440VAC, 300VDC), and all other critical electrical and mechanical specifications. The primary difference is product status and packaging format.

Q: What is the significance of the product status difference between these parts?

A: The G2RL-1A-CF DC48 is classified as Obsolete, indicating discontinued manufacturing and limited availability. The G2RL-1A DC48 maintains Active status, ensuring ongoing production and reliable supply for current and future applications.

Q: Are there packaging considerations when substituting these relays?

A: The main part (G2RL-1A-CF DC48) has unspecified packaging, while the substitute (G2RL-1A DC48) is supplied in Tube packaging. Both maintain identical through-hole PC pin termination and mounting characteristics, making them compatible for PCB assembly processes.

Q: Do both parts meet current regulatory compliance standards?

A: The G2RL-1A DC48 substitute is RoHS Compliant. Both parts are REACH Unaffected and classified under ECCN EAR99. The substitute part provides assurance of compliance with modern regulatory frameworks.

Q: What are the critical parameters that must match for substitution?

A: Substitution requires matching coil voltage (48VDC), contact form (SPST-NO), contact current rating (12 A), switching voltage limits (440VAC, 300VDC), mounting type (Through Hole), termination style (PC Pin), operating temperature range (-40°C ~ 85°C), and coil specifications (9 mA, 5.36 kOhms).
