G2RL-14-CF DC5 Equivalent & Substitute Parts

Part Overview

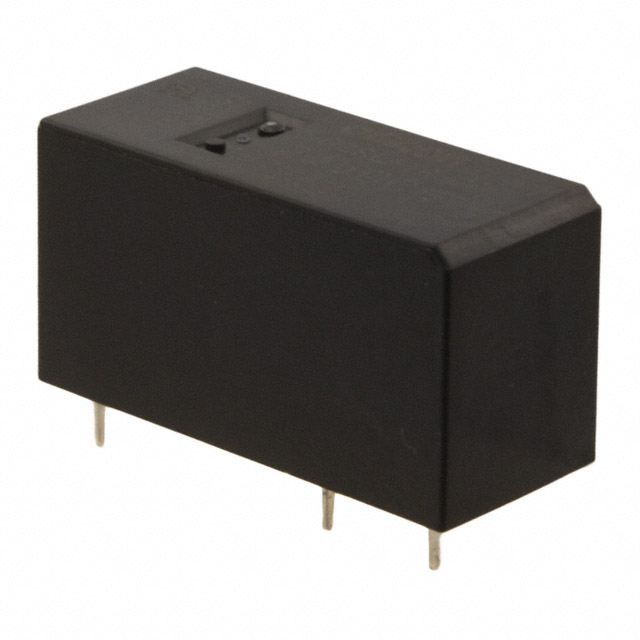

The G2RL-14-CF DC5 is a general purpose relay manufactured by Omron Electronics Inc-EMC Div, featuring a single pole double throw (SPDT) contact configuration with a 5VDC coil. This through-hole mounted relay is rated for 12A switching capacity and is designed for general industrial switching applications. The part is currently listed as obsolete, making identification of compatible substitutes essential for ongoing system maintenance and new design implementations where legacy component compatibility is required.

Substiute Parts

G2RL-14-CF DC5

Omron Electronics Inc-EMC DivIn Stock: 1095G2RL-14-CF DC5 Datasheet

Current PartRFQ

G2RL-14 DC5

Omron Electronics Inc-EMC DivIn Stock: 3202G2RL-14 DC5 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the G2RL-14-CF DC5 is determined by strict equivalence across the following critical parameters:

• Coil voltage: 5VDC
• Contact configuration: SPDT (1 Form C)
• Current rating: 12 A
• Switching voltage capability: 440VAC, 300VDC maximum
• Coil current draw: 80 mA
• Mounting type: Through hole
• Termination style: PC pin
• Operating temperature range: -40°C ~ 85°C
• Coil resistance: 62.5 Ohms
• Contact material: Silver alloy, cadmium free

The G2RL-14 DC5 qualifies as a parametric equivalent substitute. Both parts belong to the same G2RL series and maintain identical electrical and mechanical specifications. The primary distinction is product status and packaging configuration.

Parameter Comparison

Engineering Selection Recommendations

The G2RL-14 DC5 is the direct substitute for the obsolete G2RL-14-CF DC5. Both parts maintain identical electrical and mechanical specifications across all critical parameters. The substitute part offers the advantage of active product status, ensuring continued availability and supply chain reliability. The G2RL-14 DC5 is packaged in tube format and carries ROHS3 compliance certification, providing additional regulatory alignment for new designs and procurement cycles.

Selection of the G2RL-14 DC5 as a replacement is appropriate for applications requiring equivalent relay functionality without design modification or circuit recalibration.

Frequently Asked Questions (FAQ)

Q: Can the G2RL-14 DC5 be used as a direct replacement for the G2RL-14-CF DC5?

A: Yes. Both parts are electrically and mechanically equivalent across all specified parameters, including coil voltage, contact configuration, current rating, switching voltage, and operating temperature range. No circuit modifications are required.

Q: What is the difference between the G2RL-14-CF DC5 and G2RL-14 DC5?

A: The primary differences are product status and packaging. The G2RL-14-CF DC5 is obsolete, while the G2RL-14 DC5 is active. The substitute part is supplied in tube packaging and carries ROHS3 compliance certification.

Q: Are there any compatibility concerns when substituting these parts?

A: No compatibility concerns exist. Both parts share identical through-hole mounting, PC pin termination, and coil specifications. PCB layout and circuit design remain unchanged.

Q: What is the inventory status of the substitute part?

A: The G2RL-14 DC5 has 3151 pieces in stock as new original inventory, compared to 1083 pieces for the obsolete G2RL-14-CF DC5.

Q: Does the substitute part meet current regulatory requirements?

A: Yes. The G2RL-14 DC5 is ROHS3 compliant and carries REACH unaffected status, meeting current regulatory standards for electronic component procurement.
