G2R-2-ASI-DC24 Equivalent & Substitute Parts

Part Overview

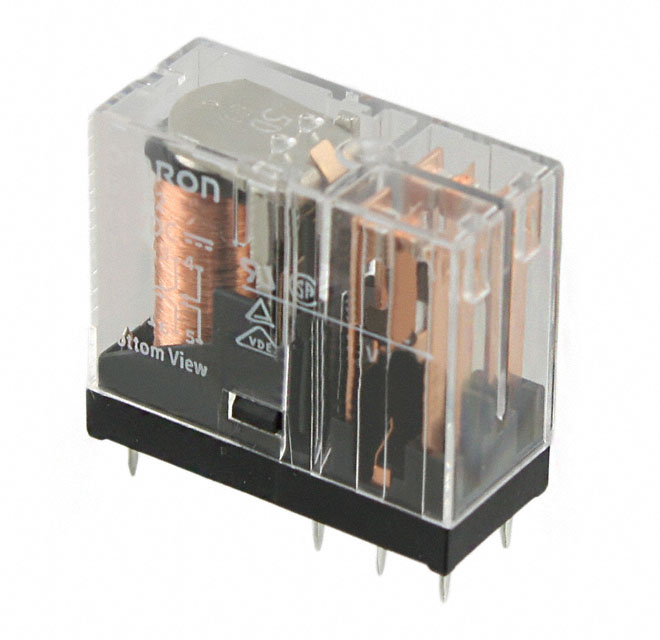

The G2R-2-ASI-DC24 is a general purpose relay manufactured by Omron Electronics Inc-EMC Div, featuring a DPDT (2 Form C) contact configuration with a 24VDC coil and 5A contact rating. This through-hole mounted relay is designed for applications requiring sealed, flux-protected switching contacts with silver alloy contact material. The part is currently active in production with ROHS3 compliance and REACH unaffected status. Substitute parts are identified when equivalent electrical and mechanical parameters are maintained across the same product series, ensuring functional interchangeability in circuit designs.

Substiute Parts

G2R-2-ASI-DC24

Omron Electronics Inc-EMC DivIn Stock: 1022G2R-2-ASI-DC24 Datasheet

Current PartRFQ

G2R-2-DC24

Omron Electronics Inc-EMC DivIn Stock: 14191G2R-2-DC24 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution eligibility for the G2R-2-ASI-DC24 is determined by strict equivalence across the following critical parameters:

• Coil voltage specification (24VDC)
• Contact configuration (DPDT / 2 Form C)
• Contact current rating (5 A)
• Maximum switching voltage (380VAC, 125VDC)
• Mounting method (Through Hole)
• Termination style (PC Pin)
• Coil electrical characteristics (21.8 mA, 1.1 kOhms)
• Operational voltage thresholds (16.8 VDC must operate, 3.6 VDC must release)
• Timing specifications (15 ms operate, 5 ms release)
• Temperature operating range (-40°C ~ 70°C)
• Contact material (Silver Alloy)
• Environmental protection (Sealed - Flux Protection)

The G2R-2-DC24 meets all these criteria and is classified as a parametric equivalent within the G2R relay series.

Parameter Comparison

Engineering Selection Recommendations

Both the G2R-2-ASI-DC24 and G2R-2-DC24 are active production parts with identical ROHS3 compliance and REACH unaffected status. Selection between these parts is based on availability and supply chain requirements rather than technical differentiation. The G2R-2-DC24 maintains higher inventory levels (14,148 pcs vs. 944 pcs), making it suitable for applications where supply continuity is a priority. Both parts satisfy the same electrical, mechanical, and environmental specifications for general purpose relay applications requiring 24VDC coil operation, DPDT switching, and 5A contact capacity.

Frequently Asked Questions (FAQ)

Q: Can G2R-2-DC24 be used as a direct replacement for G2R-2-ASI-DC24?

A: Yes. Both parts are parametric equivalents with identical electrical specifications, contact configurations, coil characteristics, timing parameters, and environmental ratings. Direct substitution is supported without circuit modification.

Q: What determines substitution eligibility for G2R relay series parts?

A: Substitution requires equivalence across coil voltage, contact form (DPDT), current rating (5A), switching voltage limits, mounting type (through hole), termination style (PC pin), coil electrical parameters, operational voltage thresholds, timing specifications, temperature range, contact material (silver alloy), and seal rating (sealed flux protection).

Q: Are there differences in packaging or handling between these parts?

A: Both parts are supplied in tray packaging. No differences in moisture sensitivity level (not applicable) or handling requirements exist between the two part numbers.

Q: What is the significance of the different base product numbers (G2R-2-A vs. G2R-2-D)?

A: The base product numbers reflect internal Omron product line designations but do not indicate functional differences. Both parts maintain identical performance specifications and are interchangeable in circuit applications.

Q: Do both parts meet the same compliance standards?

A: Yes. Both G2R-2-ASI-DC24 and G2R-2-DC24 are ROHS3 compliant, REACH unaffected, and classified under ECCN EAR99 with identical HTSUS coding (8536.41.0020).
