G2R-2A-ASI-DC12 Equivalent & Substitute Parts

Part Overview

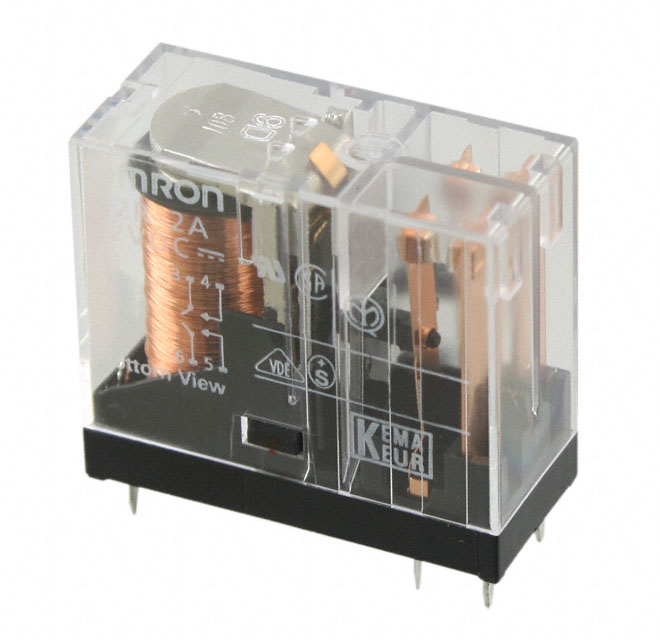

The G2R-2A-ASI-DC12 is a general purpose relay manufactured by Omron Electronics Inc-EMC Div, configured as a DPST-NO (2 Form A) relay with a 12VDC coil and 5A contact rating. This through-hole mounted relay is designed for general purpose switching applications with sealed flux protection. The part is currently listed as obsolete, making identification of active equivalent alternatives essential for ongoing production and maintenance applications.

Substiute Parts

G2R-2A-ASI-DC12

Omron Electronics Inc-EMC DivIn Stock: 879G2R-2A-ASI-DC12 Datasheet

Current PartRFQ

G2R-2A-DC12

Omron Electronics Inc-EMC DivIn Stock: 3199G2R-2A-DC12 Datasheet

Parametric EquivalentRFQ

G2R-2A-T130 DC12

Omron Electronics Inc-EMC DivIn Stock: 1021G2R-2A-T130 DC12 Datasheet

Parametric EquivalentRFQ

Key Parameters

Substitute Part Grouping Explanation

Substitution for the G2R-2A-ASI-DC12 is determined by strict equivalence across the following critical parameters:

• Coil voltage: 12VDC
• Contact configuration: DPST-NO (2 Form A)
• Contact current rating: 5 A
• Coil current: 43.6 mA
• Coil resistance: 275 Ohms
• Mounting type: Through Hole
• Termination style: PC Pin
• Operating temperature range: -40°C ~ 70°C
• Contact material: Silver Alloy
• Seal rating: Sealed - Flux Protection

The identified substitutes maintain identical electrical and mechanical specifications, with differences limited to product status and packaging configuration.

Parameter Comparison

Engineering Selection Recommendations

Both G2R-2A-DC12 and G2R-2A-T130 DC12 are direct parametric equivalents to the obsolete G2R-2A-ASI-DC12. Selection between these substitutes is based on the following factors:

G2R-2A-DC12: This part carries Active product status and ROHS3 compliance certification. It is packaged in Tube format with 3100 pieces currently in stock inventory.

G2R-2A-T130 DC12: This part carries Active product status and RoHS compliance certification. It maintains 982 pieces in stock inventory.

Both parts satisfy identical electrical and mechanical requirements for direct substitution. Selection should be based on packaging requirements, inventory availability, and compliance certifications applicable to the end application.

Frequently Asked Questions (FAQ)

Q: Can G2R-2A-DC12 or G2R-2A-T130 DC12 be used as direct replacements for G2R-2A-ASI-DC12?

A: Yes. Both substitute parts maintain identical coil voltage (12VDC), contact configuration (DPST-NO 2 Form A), current rating (5A), coil current (43.6 mA), coil resistance (275 Ohms), mounting type (Through Hole), termination style (PC Pin), operating temperature range (-40°C to 70°C), contact material (Silver Alloy), and seal rating (Sealed - Flux Protection).

Q: What is the difference between G2R-2A-DC12 and G2R-2A-T130 DC12?

A: The primary differences are packaging configuration and compliance certifications. G2R-2A-DC12 is packaged in Tube format with ROHS3 compliance. G2R-2A-T130 DC12 carries RoHS compliance. All electrical and mechanical parameters are identical.

Q: Why is the G2R-2A-ASI-DC12 listed as obsolete?

A: The G2R-2A-ASI-DC12 has been discontinued by the manufacturer. The active equivalents G2R-2A-DC12 and G2R-2A-T130 DC12 provide identical functionality for new designs and replacement applications.

Q: Are there any compatibility concerns when substituting these parts?

A: No compatibility concerns exist when substituting either active equivalent. All critical electrical parameters, mechanical dimensions, and functional characteristics are identical across all three part numbers.

Q: Which substitute should be selected for new production?

A: Selection between G2R-2A-DC12 and G2R-2A-T130 DC12 depends on packaging requirements and applicable compliance standards for the end application. Both parts are active and fully supported by the manufacturer.
