FX6-50P-0.8SV Equivalent & Substitute Parts

Part Overview

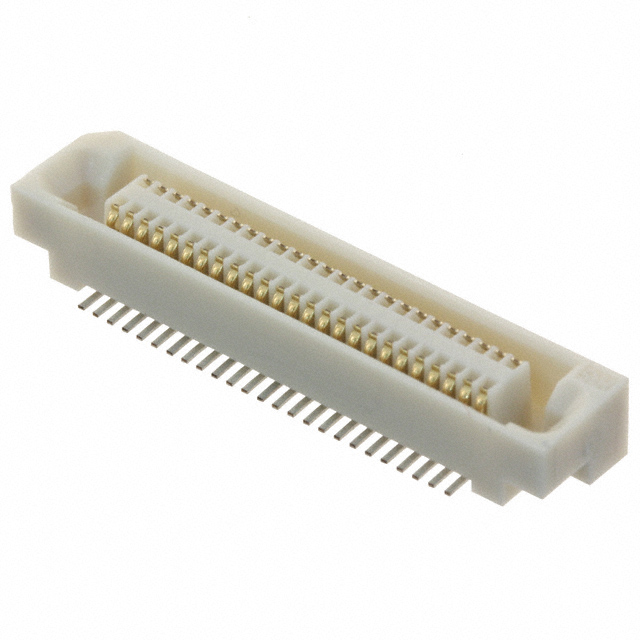

The FX6-50P-0.8SV is a 50-position rectangular connector header manufactured by Hirose Electric Co Ltd, designed for surface mount applications with outer shroud contacts and gold plating. This component is classified as obsolete, which necessitates identification of functionally equivalent alternatives for ongoing production and maintenance applications. The substitute part maintains identical electrical and mechanical specifications while offering improved product status and compliance characteristics.

Substiute Parts

FX6-50P-0.8SV

Hirose Electric Co LtdIn Stock: 1022FX6-50P-0.8SV Datasheet

Current PartRFQ

FX6-50P-0.8SV(71)

Hirose Electric Co LtdIn Stock: 1187FX6-50P-0.8SV(71) Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The FX6-50P-0.8SV(71) qualifies as a direct substitute based on the following critical parameters:

• Connector Type & Configuration: Both parts are 50-position headers with outer shroud contacts in a 2-row arrangement
• Electrical Interface: Identical pitch of 0.031" (0.80mm) ensures mechanical and electrical compatibility
• Physical Dimensions: Matching height above board (0.197" / 5.00mm) and mated stacking heights (5mm, 7mm) confirm PCB footprint compatibility
• Mounting Technology: Both utilize surface mount technology with board guide features
• Contact Material: Gold plating on both parts ensures equivalent electrical performance and reliability
• Series Continuity: Both belong to the FX6 series, confirming design family compatibility

The substitution is based strictly on matching electrical and mechanical parameters that determine functional interchangeability in the application circuit.

Parameter Comparison

Engineering Selection Recommendations

The FX6-50P-0.8SV(71) is the designated substitute for the obsolete FX6-50P-0.8SV. Selection of the substitute part is justified by the following factors:

• Product Availability: The substitute maintains active product status with confirmed inventory (1136 pcs), whereas the original part is obsolete
• Regulatory Compliance: The substitute achieves ROHS3 compliance, addressing environmental and regulatory requirements for new designs and production runs
• Functional Equivalence: All electrical and mechanical parameters remain identical, ensuring drop-in compatibility without circuit redesign
• Certification Continuity: Both parts maintain identical REACH and ECCN classifications, preserving export and supply chain compliance

No design modifications or performance trade-offs are introduced through this substitution.

Frequently Asked Questions (FAQ)

Q: Can FX6-50P-0.8SV(71) be used as a direct replacement for FX6-50P-0.8SV?

A: Yes. The substitute part maintains identical electrical and mechanical specifications, including connector type, position count, pitch, mounting configuration, and physical dimensions. No circuit modifications are required.

Q: What is the difference between FX6-50P-0.8SV and FX6-50P-0.8SV(71)?

A: The primary differences are product status (obsolete vs. active) and RoHS compliance (non-compliant vs. ROHS3 compliant). The designation "(71)" indicates the packaging format (Tube). All functional parameters are identical.

Q: Are there any compatibility concerns with PCB footprints?

A: No. Both parts share identical height above board (0.197" / 5.00mm), mated stacking heights (5mm, 7mm), and mounting type (surface mount). Existing PCB designs require no modification.

Q: Does the substitute part affect signal integrity or electrical performance?

A: No. Both parts feature identical gold contact finish, pitch (0.031" / 0.80mm), and connector configuration. Electrical performance characteristics remain unchanged.

Q: What is the inventory status of the substitute part?

A: FX6-50P-0.8SV(71) has 1136 pcs in stock as new original inventory, ensuring supply continuity for production requirements.
