FX5-20S2A-DSA Equivalent & Substitute Parts

Part Overview

The FX5-20S2A-DSA is a 20-position rectangular connector receptacle manufactured by Hirose Electric Co., Ltd. This component features outer shroud contacts, through-hole mounting, and gold-plated contacts. The main part is classified as obsolete, which necessitates identification of active equivalent alternatives to ensure continued availability and supply chain continuity for new designs and production requirements.

Substiute Parts

FX5-20S2A-DSA

Hirose Electric Co., Ltd.In Stock: 958FX5-20S2A-DSA Datasheet

Current PartRFQ

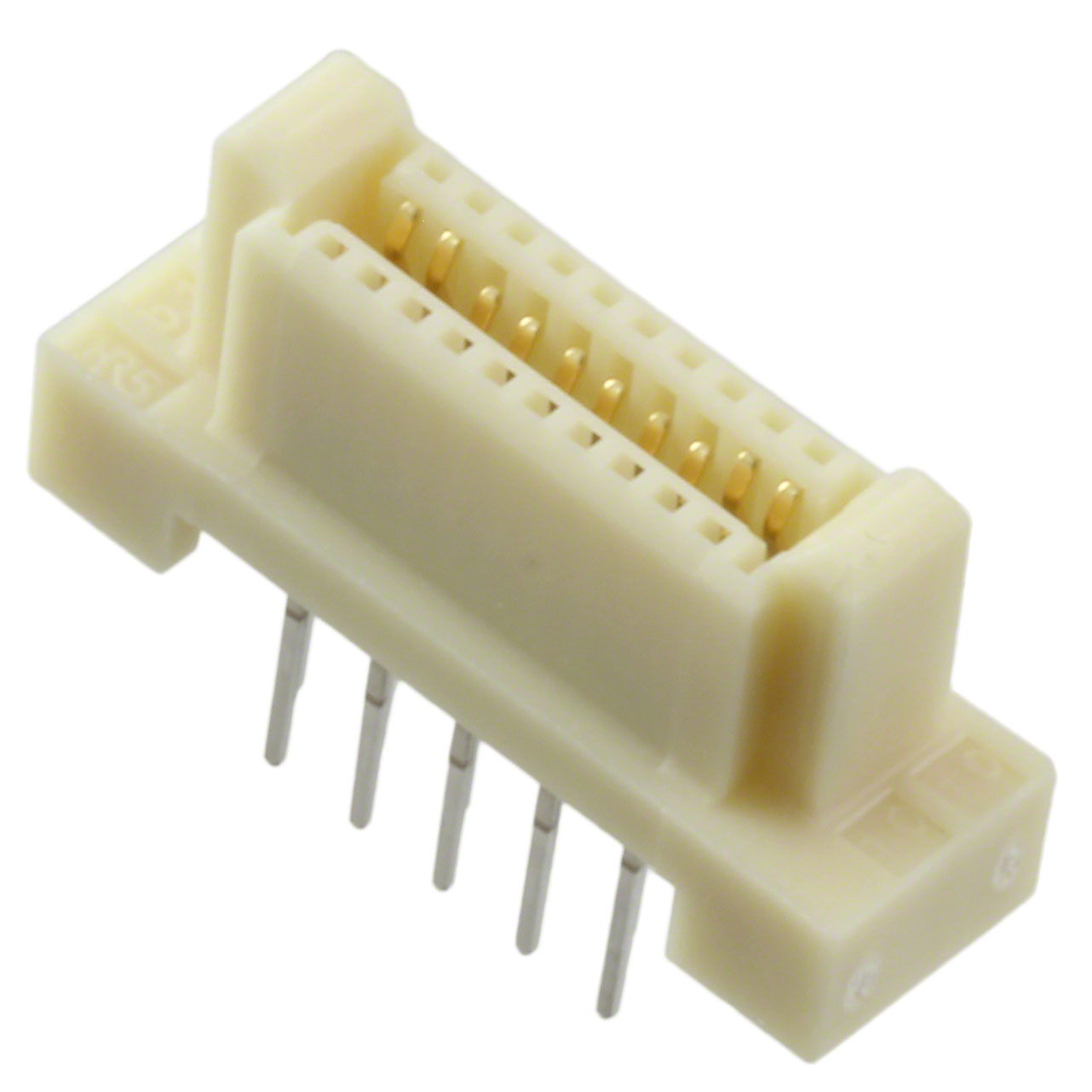

FX5-20S2A-DSA(71)

Hirose Electric Co LtdIn Stock: 952FX5-20S2A-DSA(71) Datasheet

DirectRFQ

Key Parameters

Substitute Part Grouping Explanation

The FX5-20S2A-DSA(71) qualifies as a direct substitute based on the following critical parameters that determine functional and mechanical compatibility:

• Identical connector type (Receptacle, Outer Shroud Contacts)
• Identical number of positions (20)
• Identical pitch (0.039" / 1.00mm)
• Identical number of rows (2)
• Identical mounting type (Through Hole)
• Identical contact finish (Gold)
• Identical height above board (0.366" / 9.30mm)
• Identical moisture sensitivity level (MSL 1)
• Same manufacturer (Hirose Electric Co., Ltd.)
• Same series (FX5)

The primary distinction between the main part and substitute is product status and compliance certification, not electrical or mechanical characteristics.

Parameter Comparison

Engineering Selection Recommendations

The FX5-20S2A-DSA(71) is the direct equivalent for the obsolete FX5-20S2A-DSA. Selection of the substitute part is based on the following engineering criteria:

• All electrical and mechanical parameters are identical, ensuring pin-for-pin and form-factor compatibility
• The substitute part maintains active product status, ensuring long-term availability and supply chain reliability
• The substitute part is RoHS compliant, meeting current environmental and regulatory requirements
• Both parts share identical moisture sensitivity classification and environmental ratings
• The substitute part is supplied in tray packaging, suitable for automated assembly processes

Frequently Asked Questions (FAQ)

Q: Are FX5-20S2A-DSA and FX5-20S2A-DSA(71) electrically interchangeable?

A: Yes. Both parts have identical electrical specifications, including contact finish (gold), number of positions (20), pitch (1.00mm), and moisture sensitivity level (MSL 1).

Q: What is the difference between these two part numbers?

A: The primary differences are product status (obsolete vs. active), RoHS compliance (non-compliant vs. compliant), and packaging format. The electrical and mechanical characteristics are identical.

Q: Can I use FX5-20S2A-DSA(71) as a replacement in existing designs?

A: Yes. The substitute part is mechanically and electrically equivalent. The identical pitch, number of positions, mounting type, and height above board ensure direct compatibility with existing PCB layouts and mating connectors.

Q: Why is the original part obsolete?

A: Product obsolescence is determined by the manufacturer. The active equivalent FX5-20S2A-DSA(71) provides continued access to the same connector functionality.

Q: Does packaging affect connector performance?

A: No. Packaging (tray vs. unspecified) affects handling, storage, and assembly logistics but does not alter electrical or mechanical performance.

Q: Are there any compliance differences I should consider?

A: The substitute part is RoHS compliant, while the original is not. For new designs or applications subject to RoHS requirements, the substitute part is the appropriate selection.
